Description

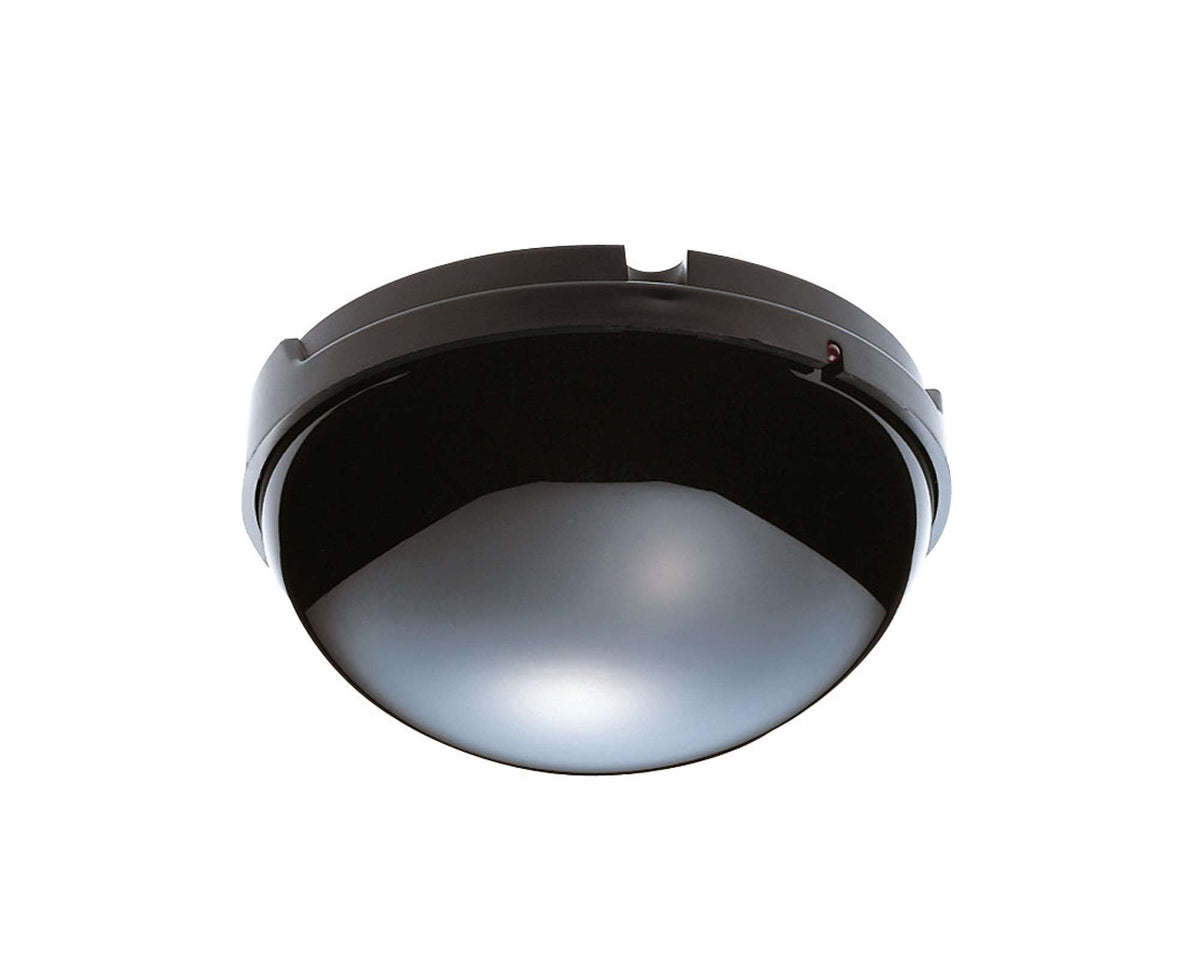

TOA TS-905 Infrared Transceiver for TS-800UL, TS-900UL, TS-820, TS-920RC for ceilings 8'-15'
Product Details
The TS-905 is an Infrared Transmitter/Receiver of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit. It can be mounted not only to the ceiling and wall but on the microphone stand.
It runs on 24 V DC (supplied from the Central unit), drawing Max. 150 mA. Connection is via BNC jack.
Supplied with mounting bracket x1, stand mounting bracket x 1. Weight is 230 g.
Features
- Power source: 24 V DC (supplied from the Central unit)
- Operating temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Infrared Transmitter/Receiver
Specifications
| Technical | |
|---|---|
| Power Source | 24 V DC (supplied from the Central unit) |
| Current Consumption | Max. 150 mA | Infrared Emitter/Detector |
| Connection Terminal | BNC jack |
| LED Indicator | Power |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Physical | |
|---|---|
| Finish | Dome: PC resin, visible light cut filter; Base: ABS resin, black |
| Dimensions | dia. 120 x 71.3 (H) mm (4.72 x 2.81") |
| Weight | 230 g (0.51 lb) (unit only) |
| Included Accessories | Mounting bracket x1, Stand mounting bracket x 1 | Stand mounting bracket attaching screw x 3, Thread Adapter (U5/16 - NS5/8) x 1 |
| Optional Accessories | Microphone stand (The mounting thread size must be U5/16 or NS5/8.) |
Specifications subject to change.
