Description

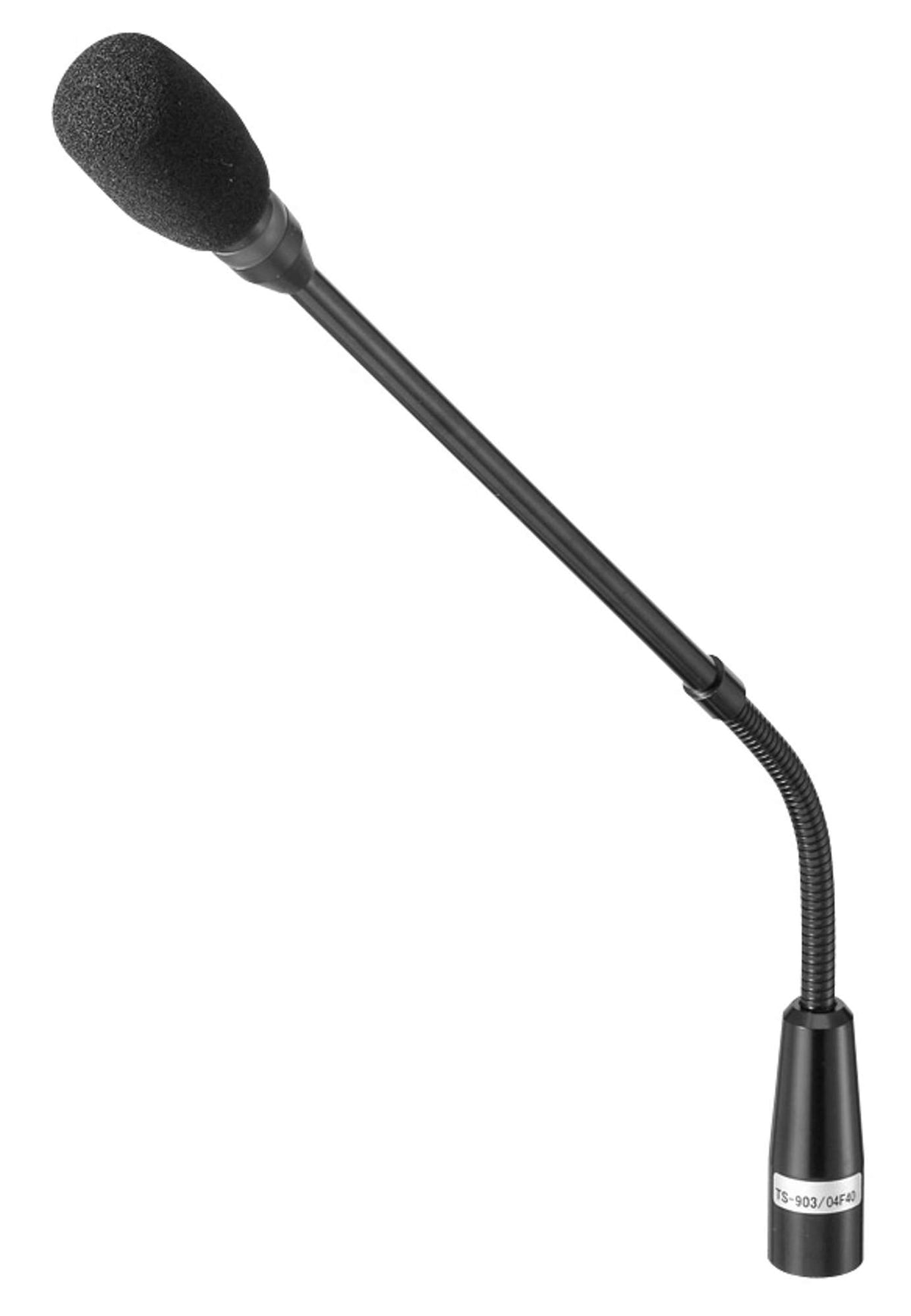

TOA TS-903 Standard Gooseneck Microphone (14.5") for TS-811 TS-812 TS-911 TS-912
Product Details
The TS-903 is a designed microphone for exclusive use with the conference units of the Infrared Conference system. Ring type In-Use lamp located at the microphone head permits displaying the operation status of the conference units.
Sensitivity is -37 dB (1 kHz 0 dB = 1 V/Pa). Frequency response is 100 Hz - 13 kHz.
Compatible with Chairman/Delegate units: TS-801, TS-802, TS-901, TS-902. Weight is 90 g.
Features
- For Chairman's & Delegate's Unit
- Sensitivity: -37 dB (1 kHz 0 dB = 1 V/Pa)
- Frequency response: 100 Hz - 13 kHz
- Operating temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Microphone, standard
Specifications
| Technical | |
|---|---|
| Type | Electret condenser microphone |
| Directivity | Unidirectional |
| Impedance | 1.8 kΩ |
| Sensitivity | -37 dB (1 kHz 0 dB = 1 V/Pa) |
| Frequency Response | 100 Hz - 13 kHz |
| Output Terminal | Equivalent to XLR-4-32 |
| LED Indicator | Speech indicator (ring type) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Compatible Unit | Chairman/Delegate units: TS-801, TS-802, TS-901, TS-902 |
| Physical | |
|---|---|
| Finish | Gooseneck: Stainless steel, black | Other: ABS resin, black |
| Weight | 90 g (0.21 lb) |
Specifications subject to change.
