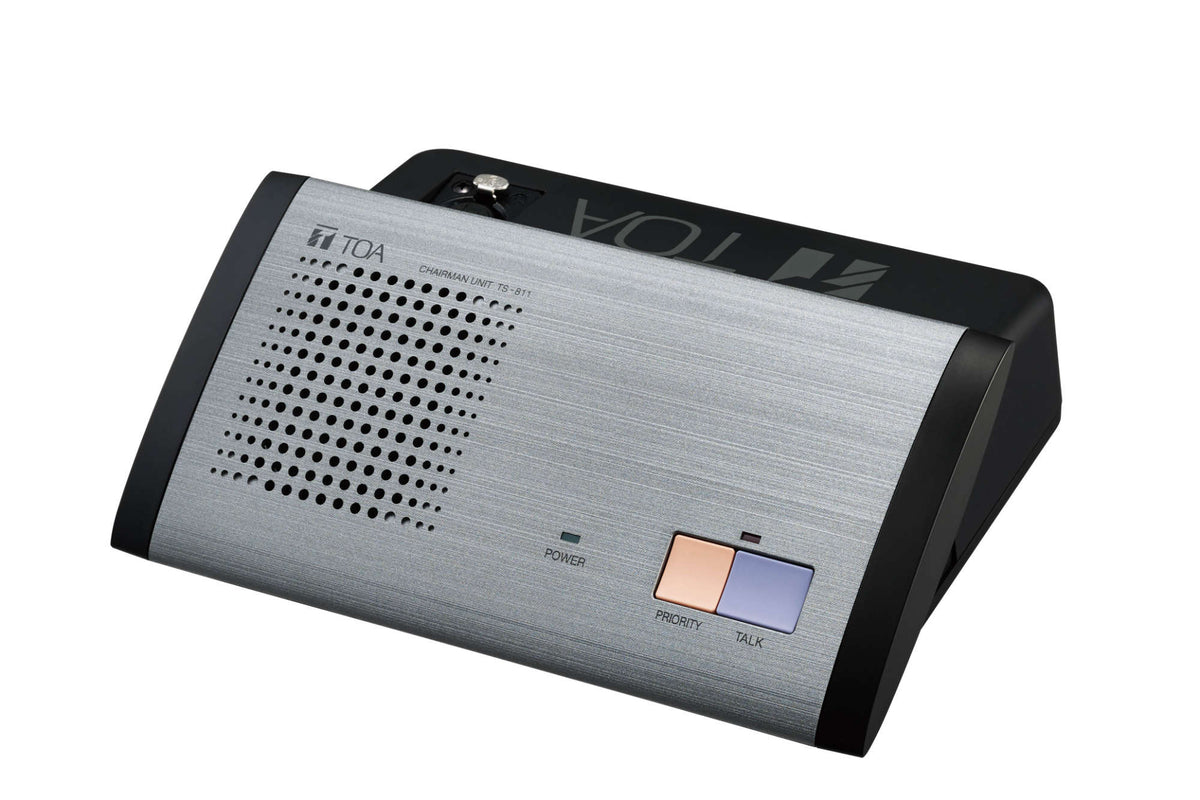

TOA TS-811 Infrared Chairperson Station for TS-800UL
Product Details
The TS-811 is a Chairman unit that can be connected to the conference system by a cable. It is equipped with a priority switch, allowing speech to take precedence over the Delegate unit. The TS-811 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.
It runs on 24 V DC (supplied from the TS-918 Expansion Unit (option), drawing Max. 60 mA.
Weight is 560 g.
Features
- Compact and lightweight
- Equipped with removable microphone, loudspeaker and priority switch
- Chairman unit features a priority speech key
- Channel selector for conference language
- When the loudspeaker is on, the microphone is automatically turned off to avoid feedback and vice versa
- 1 recording output
- Ring shaped in-use LED indicator
- Multiple chairman's units can be operated simultaneously
- Easy hook-up
- Power source: 24 V DC (supplied from the TS-918 Expansion Unit (option)
- Operating temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Chairman's Unit
Specifications
| Technical | |
|---|---|
| Power Source | 24 V DC (supplied from the TS-918 Expansion Unit (option) |
| Current Consumption | Max. 60 mA |
| Output | Monitor speaker: 8 Ω, 0.2 W | Headphone: dia. 3.5 mm mini Jack (3P:monaural) x 2 |
| LED Indicator | Speech indicator (flashes at communication failure) | Power indicator (flashes at communication failure) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Physical | |
|---|---|
| Finish | Top panel: ABS resin, gray metallic, paint, semi-gloss |
| Dimensions | 210 (W) x 68.6 (H) x 152 (D) mm (8.27 x 2.7" x 5.98") |
| Weight | 560 g (1.23 lb) |
| Optional Accessories | Microphone: TS-903, TS-904 (Select either one.) |
Specifications subject to change.
