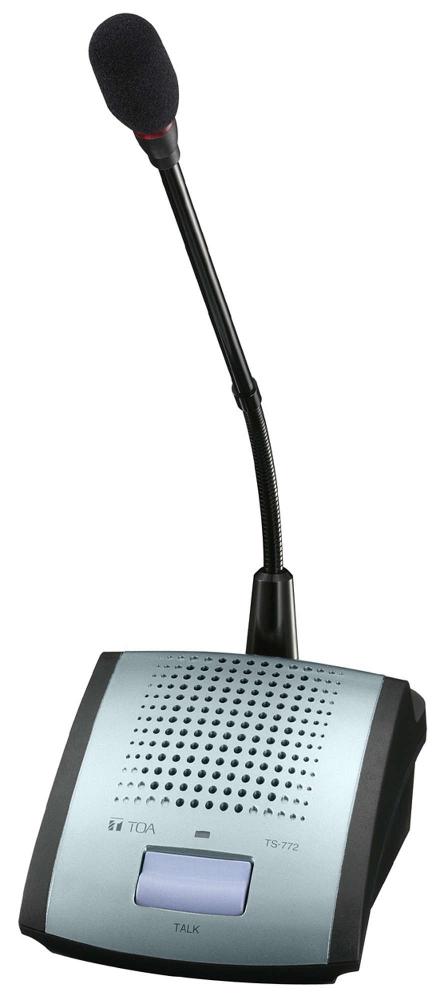

TOA TS-772 Delegate unit for TS-770 Series Conference System
Product Details
The TOA TS-772 is the delegate unit of the TS-770 conference system. TOA describes it as a delegate unit “of which compact and lightweight design makes it easy to install and store”. The TS-770 series is TOA's analogue wired conference system. Every unit is cabled back to the TS-770 CU central unit, which powers the whole chain at 35 V DC, so there are no batteries to charge and no infrared line of sight to maintain.
The talk button opens the microphone and mutes the unit's own loudspeaker; with the talk button off, the loudspeaker carries the voices of whoever else is speaking. It is the same chassis and the same 780 g as the TS-771 chairman unit, without the priority button and without the speech-limit setting — those belong to the chair.
Headphone and recording outputs and a contact output are provided. The microphone is ordered separately: the TS-773 standard type or the TS-774 long type. Delegate units are the volume purchase in any conference system, so count seats before quoting.
Features
- Delegate unit for the TS-770 wired conference system
- Talk button mutes the unit's own loudspeaker to prevent feedback
- Loudspeaker carries other speakers when the talk button is off
- Speech governed by the TS-771 chairman unit's priority function
- Headphone, recording and contact outputs
- Powered from the TS-770 CU central unit — no battery
- Microphone ordered separately: TS-773 standard or TS-774 long
Specifications
| Technical | |
|---|---|
| Product Type | Delegate unit, analogue wired conference system |
| Power Source | 35 V DC, supplied from the TS-770 CU central unit |
| Current Consumption | Less than 30 mA |
| Headphone Output | 32 Ω |
| Recording Output | 10 kΩ |
| Internal Speaker | 130 Ω, 200 mW |
| Contact Output | 24 V DC, 50 mA maximum |
| Compatible Microphones | TS-773 standard type, TS-774 long type |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 114.5 (W) × 78.4 (H) × 152.9 (D) mm |
| Weight | 780 g (1.72 lb) |
Specifications subject to change.
