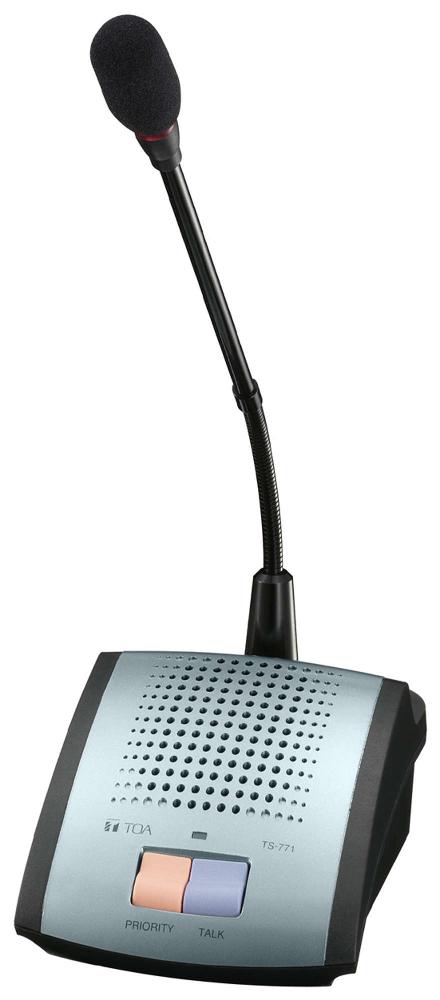

TOA TS-771 Chairman unit for TS-770 Series Conference System
Product Details
The TOA TS-771 is the chairman unit of the TS-770 conference system. TOA describes it as a chairman unit “of which compact and lightweight design makes it easy to install and store”. The TS-770 series is TOA's analogue wired conference system. Every unit is cabled back to the TS-770 CU central unit, which powers the whole chain at 35 V DC, so there are no batteries to charge and no infrared line of sight to maintain.
Two buttons separate it from the TS-772 delegate unit. The talk button opens the microphone and mutes the unit's own loudspeaker, which is how the system avoids feedback with a speaker and a microphone sitting in the same box. The priority button takes precedence over every delegate unit and sounds a chime, so the chair can interrupt. Several chairman units can be in use at once.
The chairman unit sets how many delegate units may speak simultaneously: 1, 3 or 6. Headphone and recording outputs and a contact output are provided. The microphone is ordered separately — the TS-773 standard type or the TS-774 long type.
Features
- Chairman unit for the TS-770 wired conference system
- Priority button takes precedence over delegate units and sounds a chime
- Talk button mutes the unit's own loudspeaker to prevent feedback
- Sets simultaneous delegate speech to 1, 3 or 6 units
- Multiple chairman units can operate at the same time
- Headphone, recording and contact outputs
- Powered from the TS-770 CU central unit — no battery
- Microphone ordered separately: TS-773 standard or TS-774 long
Specifications
| Technical | |
|---|---|
| Product Type | Chairman unit, analogue wired conference system |
| Power Source | 35 V DC, supplied from the TS-770 CU central unit |
| Current Consumption | Less than 30 mA |
| Headphone Output | 32 Ω |
| Recording Output | 10 kΩ |
| Internal Speaker | 130 Ω, 200 mW |
| Contact Output | 24 V DC, 50 mA maximum |
| Compatible Microphones | TS-773 standard type, TS-774 long type |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 114.5 (W) × 78.4 (H) × 152.9 (D) mm |
| Weight | 780 g (1.72 lb) |
Specifications subject to change.
