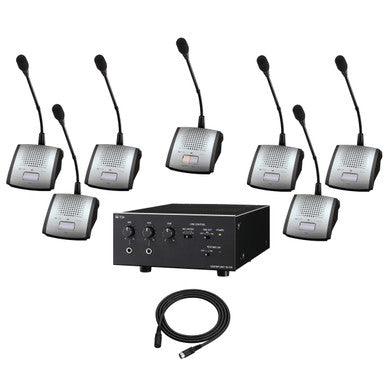

TOA TS-770 CU Central unit for TS-770 Series station TS-771, TS-772, and TS-775, making up a conference system
Product Details
The TOA TS-770 CU is the central unit of the TS-770 conference system. TOA describes it as a central unit “of which compact design makes it easy to install and store”. It connects the chairman, delegate and remote delegate interface units, supplies their power and carries the audio between them.
Capacity is 70 units on one central unit, split across two lines at a maximum of 35 units per line. Three central units can be linked through the expansion terminals to reach 210 units, which is what makes this a system for a council chamber rather than a boardroom. An All-Mic-On function turns every microphone on at once for sound collecting and recording, and automatic microphone shutoff can be set to OFF, 20 seconds or 40 seconds so an open microphone left unattended does not stay open.
The number of delegate units allowed to speak at the same time is set to 1, 3 or 6, and the chairman unit's priority function overrides them. A test function verifies the connection status of every unit before a session starts. Microphone and AUX inputs, recording outputs and equalizer insert points are all on the rear panel. The units it drives are the TS-771 chairman unit, the TS-772 delegate unit and the TS-775 remote delegate interface unit.
Features
- Central unit of the TS-770 analogue wired conference system
- Up to 70 units, maximum 35 per line across two lines
- Expandable to 210 units with three central units linked
- All-Mic-On function for sound collecting and recording
- Automatic microphone shutoff: OFF, 20 seconds or 40 seconds
- Simultaneous delegate speech limit of 1, 3 or 6 units
- Test function to verify connection status of every unit
- Microphone and AUX inputs, recording outputs, equalizer insert
- Powers the TS-771, TS-772 and TS-775 units at 35 V DC
Specifications
| Technical | |
|---|---|
| Product Type | Central unit, analogue wired conference system |
| Power Source | AC mains, 50/60 Hz |
| Power Consumption | 60 W maximum |
| Rated Output | 35 V DC, 650 mA × 2 |
| Microphone Input | −60 dB, 600 Ω, unbalanced, phone jack |
| AUX Input | −20 dB, 10 kΩ, unbalanced, phone jack |
| Recording Output | −20 dB, 10 kΩ, unbalanced, phone and pin jacks × 2 |
| Equalizer Input and Output | −20 dB, 10 kΩ, pin jacks |
| Expansion Terminals | −20 dB, 10 kΩ, pin jacks × 2 each, input and output |
| Connectable Units | 70 units, maximum 35 per line; 210 units with three central units |
| Simultaneous Delegate Speech | 1, 3 or 6 units, selectable |
| Automatic Microphone Shutoff | OFF, 20 seconds or 40 seconds |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less, no condensation |
| Physical | |
|---|---|
| Dimensions | 210 (W) × 107.1 (H) × 316 (D) mm — 8.27″ × 4.22″ × 12.44″ |
| Weight | 4 kg (8.82 lb) |
| Finish | Panel: aluminum, hairline, black | case: pre-coated steel plate, black, 30 % gloss |
| Included Accessories | Power cord, 2 m |
Specifications subject to change.
