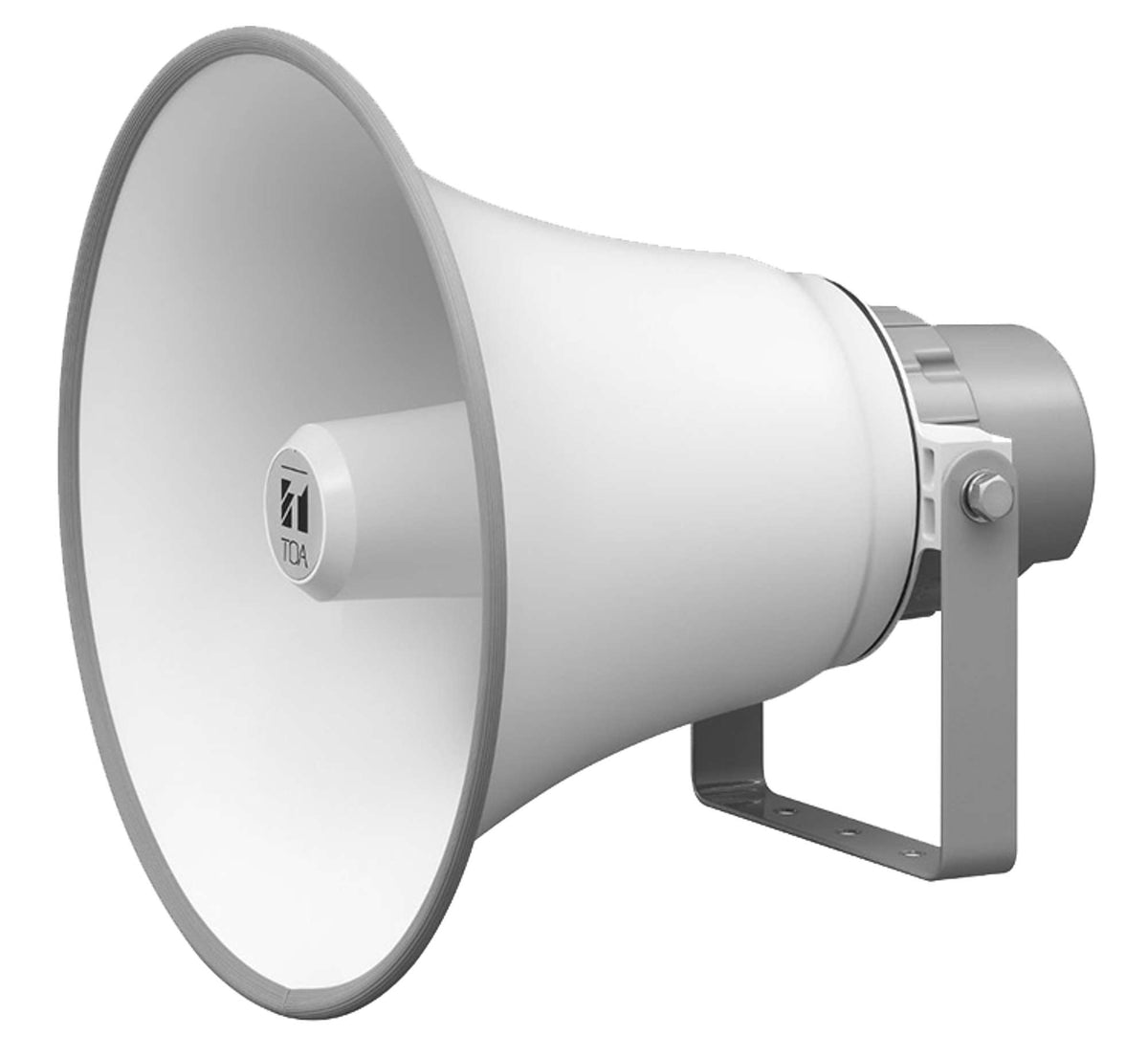

TOA TC-651M Reflex Paging Horn Speaker 50W @70.7/100 V Mounting Bracket Included
Product Details
The TOA TC-651M is a round reflex horn — 400 mm across, 50 W, with a line transformer for 70.7 V and 100 V distributed systems. The reflex design folds the horn path back on itself, which is how it gets its throw from a shorter body than a straight flare of the same output.
It runs 200 Hz to 6 kHz at 111 dB, reaching lower than any other horn in this group. Taps run from 50 W down to 7.5 W on a 70 V line and 50 W down to 15 W on 100 V. Note that this model is transformer-only: there is no low-impedance version of it, so it belongs on a constant-voltage line.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker.
Features
- Round reflex horn, 400 mm diameter
- 50 W rated input with built-in line transformer
- 70.7 V and 100 V lines — no low-impedance version exists
- Four taps on 70 V: 50 W, 25 W, 15 W, 7.5 W
- Three taps on 100 V: 50 W, 30 W, 15 W
- 111 dB sensitivity at 1 W / 1 m
- 200 Hz – 6 kHz — the lowest reach in this group
- Polyimide compression diaphragm
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Type | Reflex horn speaker with compression driver |
| Rated Input | 50 W |
| Rated Impedance — 100 V Line | 200 Ω (50 W) | 330 Ω (30 W) | 670 Ω (15 W) |
| Rated Impedance — 70 V Line | 100 Ω (50 W) | 200 Ω (25 W) | 330 Ω (15 W) | 670 Ω (7.5 W) |
| Sound Pressure Level | 111 dB (1 W, 1 m) |
| Frequency Response | 200 Hz – 6 kHz |
| Diaphragm | Polyimide |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +60 °C (−4 °F to 140 °F) |
| Physical | |
|---|---|
| Dimensions | Ø400 (W) × 376 (D) mm |
| Weight | 4 kg (8.82 lb) |
| Finish and Materials | Horn flare: aluminum, off-white powder coating | reflector horn: ABS resin | bracket holder: aluminum, white powder coating | bracket: steel, grey powder coating | rear cover: ABS resin, grey | screws and bolts: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
Specifications subject to change.
