Description
TOA SR-WB4 SR-S Series Wall Mount Bracket
Product Details

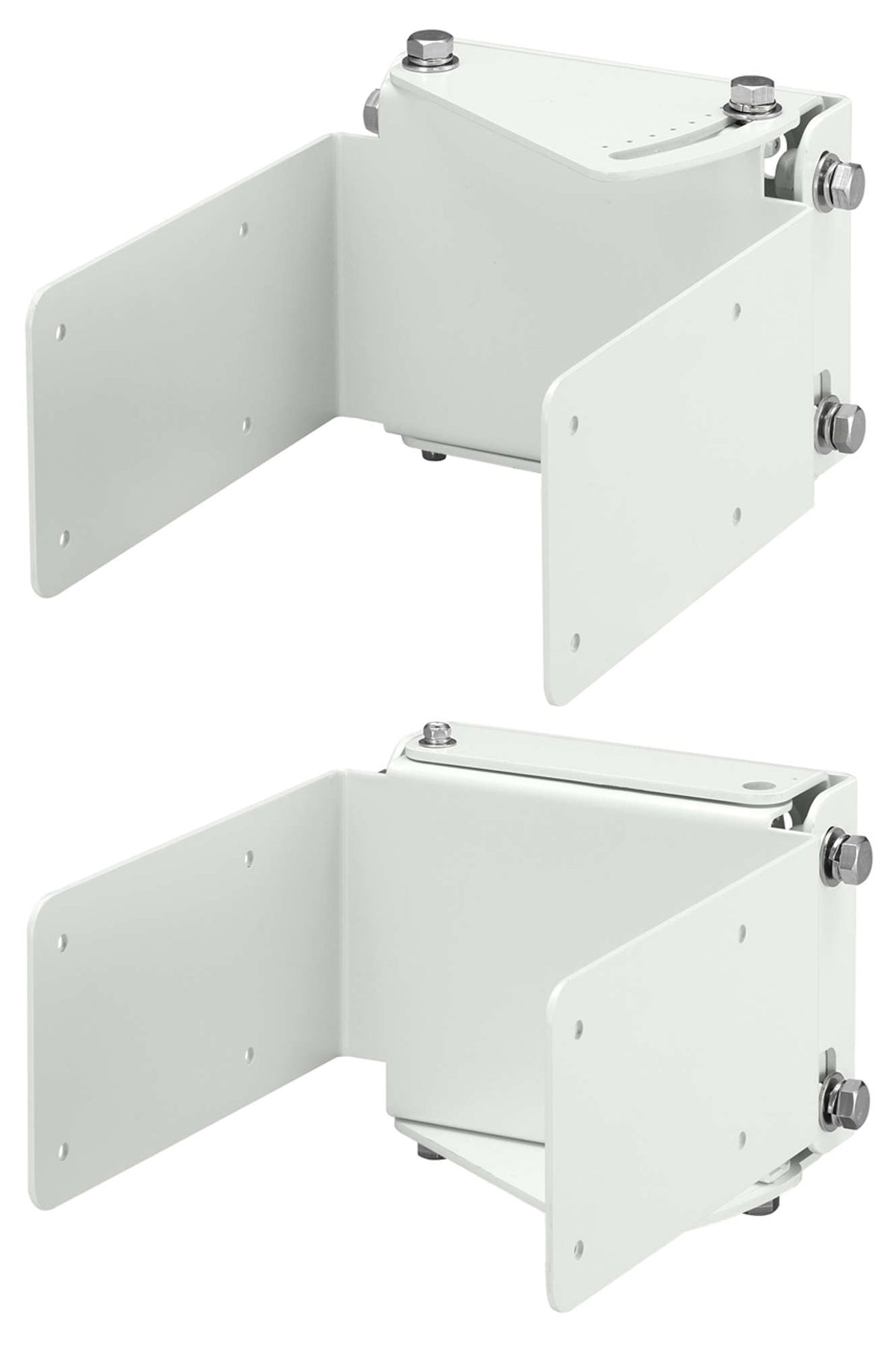

The TOA SR-WB4 mounts an SR-S4L line array module upright on a wall. It fits the SR-S4L.
It swivels horizontally 30° left or right, and it will carry two speakers when they are joined with an SR-EP4 extension plate. Note that TOA lists it for the straight SR-S4L specifically.
Supplied with: Speaker mounting screws, M5 upset head × 16 | bracket assembling screws, M8 upset head × 8 | speaker mounting brackets × 2 | bracket bases × 2. Material and finish: Steel plate, white, paint.
Features
- Wall mount bracket for the SR-S4L
- Horizontal swivel 30° left or right
- Carries up to two speakers joined with an SR-EP4
- Full screw set included
- Indoor painted steel — see SR-WB4WP for outdoor
Specifications
| Technical | |
|---|---|
| Product Type | Wall Mount Bracket |
| Compatible Speakers | SR-S4L |
| Material and Finish | Steel plate, white, paint |
| Included | Speaker mounting screws, M5 upset head × 16 | bracket assembling screws, M8 upset head × 8 | speaker mounting brackets × 2 | bracket bases × 2 |
| Physical | |
|---|---|
| Weight | 4.6 kg (10.14 lb), including accessories |
| Color | White |
Specifications subject to change.
