Description

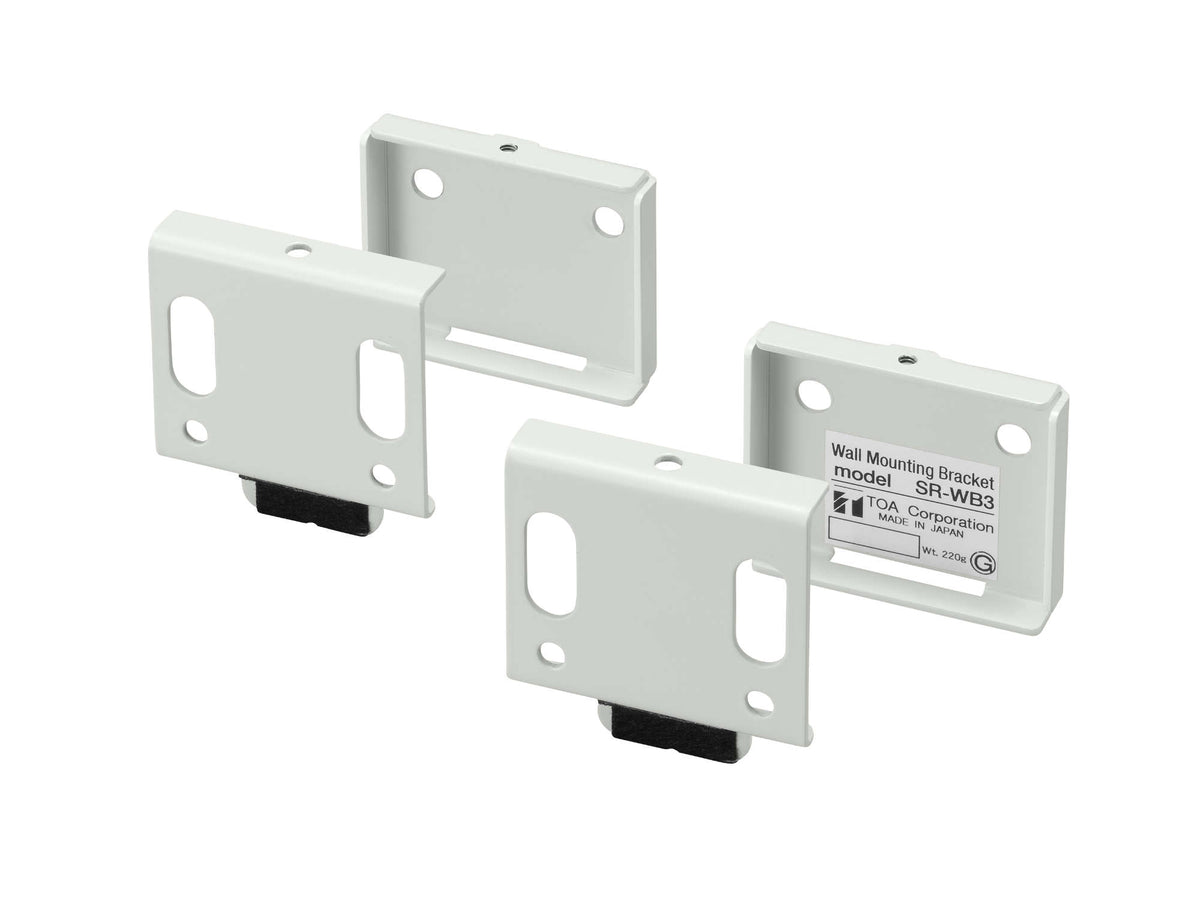

TOA SR-WB3 SR-H Series Wall Mounting Bracket
Product Details
The TOA SR-WB3 mounts a Type H slim line array flat against a wall. It fits the SR-H2L, SR-H2S, SR-H3L and SR-H3S.
It is the plain mount: no tilt, no swivel, 220 grams. Where the speaker needs aiming down at an audience, the SR-TB3 tilt bracket is the part to order instead.
Supplied with: Speaker mounting bolts, hex bolt M5 × 25 with washer × 4 | bracket fixing bolt, hex bolt M4 × 15 with washer × 1 | speaker mounting brackets × 2 | bracket bases × 2. Material and finish: Steel plate, white, paint.
Features
- Wall mounting bracket for Type H slim line arrays
- Mounts the speaker flat to the wall
- No tilt adjustment — use the SR-TB3 for aiming
- 220 g, the lightest mount in the range
- Fits all four Type H models
Specifications
| Technical | |
|---|---|
| Product Type | Wall Mounting Bracket |
| Compatible Speakers | SR-H2L, SR-H2S, SR-H3L and SR-H3S |
| Material and Finish | Steel plate, white, paint |
| Included | Speaker mounting bolts, hex bolt M5 × 25 with washer × 4 | bracket fixing bolt, hex bolt M4 × 15 with washer × 1 | speaker mounting brackets × 2 | bracket bases × 2 |
| Physical | |
|---|---|
| Weight | 220 g (0.49 lb) |
| Color | White |
Specifications subject to change.
