TOA SR-TB4WP SR-S Series Wall Tilt Bracket Outdoor
Product Details

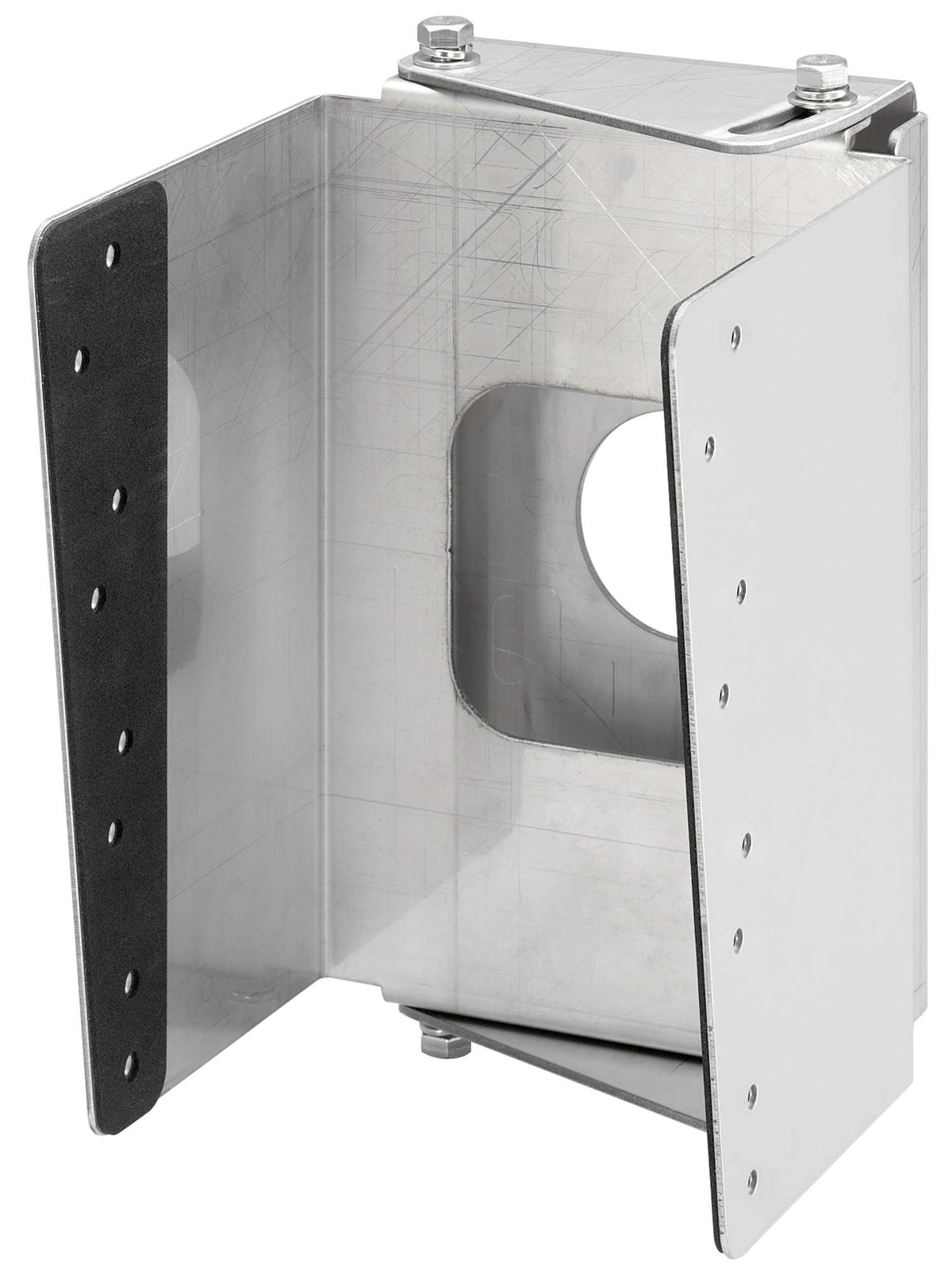

The TOA SR-TB4WP is the stainless steel wall tilt bracket for the weather-resistant Type S modules. It fits the SR-S4LWP and SR-S4SWP.
Downward tilt sets to 0° or 5° and the horizontal swivel to 20°. One difference from the indoor SR-TB4 that will catch an installer out: speaker fixing screws are not supplied with this bracket, where the indoor version includes them.
Supplied with: Bracket assembling screws, M8 upset head × 4. Speaker fixing screws are NOT supplied. Material and finish: Stainless steel (SUS304).
Features
- Stainless steel wall tilt bracket for weather-resistant Type S modules
- Downward tilt 0° or 5°
- Horizontal swivel to 20°
- Speaker fixing screws NOT supplied — order separately
- SUS304 stainless steel for outdoor use
Specifications
| Technical | |
|---|---|
| Product Type | Wall Tilt Bracket, Outdoor |
| Compatible Speakers | SR-S4LWP and SR-S4SWP |
| Material and Finish | Stainless steel (SUS304) |
| Included | Bracket assembling screws, M8 upset head × 4. Speaker fixing screws are NOT supplied |
| Physical | |
|---|---|
| Dimensions | 167 (W) × 247 (H) × 201 (D) mm, complete assembly |
| Weight | 2.8 kg (6.17 lb), including accessories |
| Color | Stainless steel |
Specifications subject to change.
