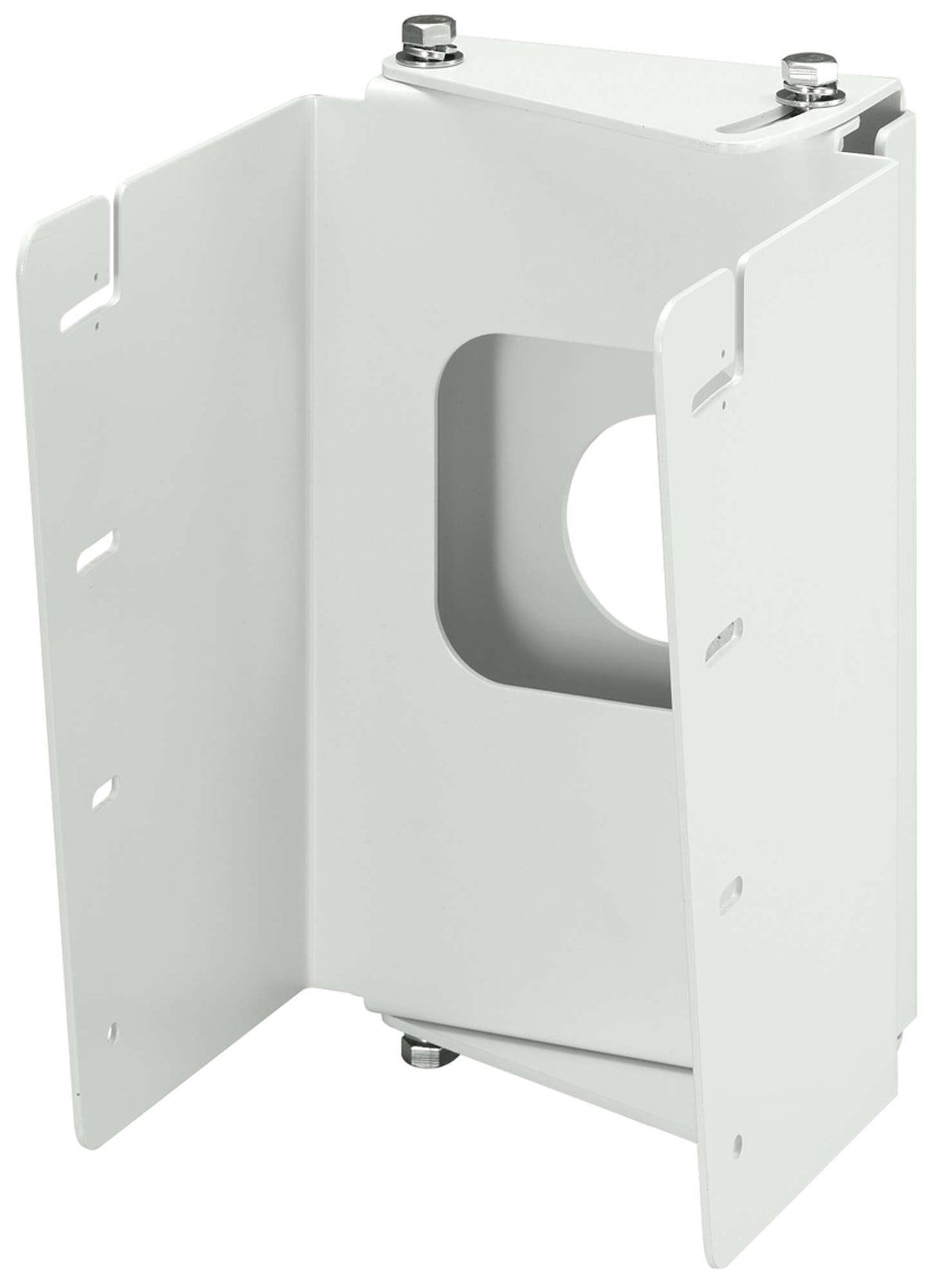

TOA SR-TB4 SR-S Series Wall Tilt Bracket
Product Details
The TOA SR-TB4 mounts a Type S line array module to a wall and lets it be aimed. It fits the SR-S4L and SR-S4S.
Downward tilt sets from 0° to 5° and the horizontal swivel to 20°. This is the indoor, painted-steel version; for the weather-resistant SR-S4LWP and SR-S4SWP speakers the stainless SR-TB4WP is the matching part.
Supplied with: Bracket assembling screws, M8 upset head × 4 | speaker mounting screws, M5 upset head × 8. Material and finish: Steel plate, white, paint.
Features
- Wall tilt bracket for Type S line array modules
- Downward tilt 0° to 5°
- Horizontal swivel to 20°
- Speaker mounting screws included
- Indoor painted steel — see SR-TB4WP for outdoor
Specifications
| Technical | |
|---|---|
| Product Type | Wall Tilt Bracket |
| Compatible Speakers | SR-S4L and SR-S4S |
| Material and Finish | Steel plate, white, paint |
| Included | Bracket assembling screws, M8 upset head × 4 | speaker mounting screws, M5 upset head × 8 |
| Physical | |
|---|---|
| Dimensions | 166 (W) × 247 (H) × 201 (D) mm, complete assembly |
| Weight | 3.2 kg (7.05 lb) |
| Color | White |
Specifications subject to change.
