Description

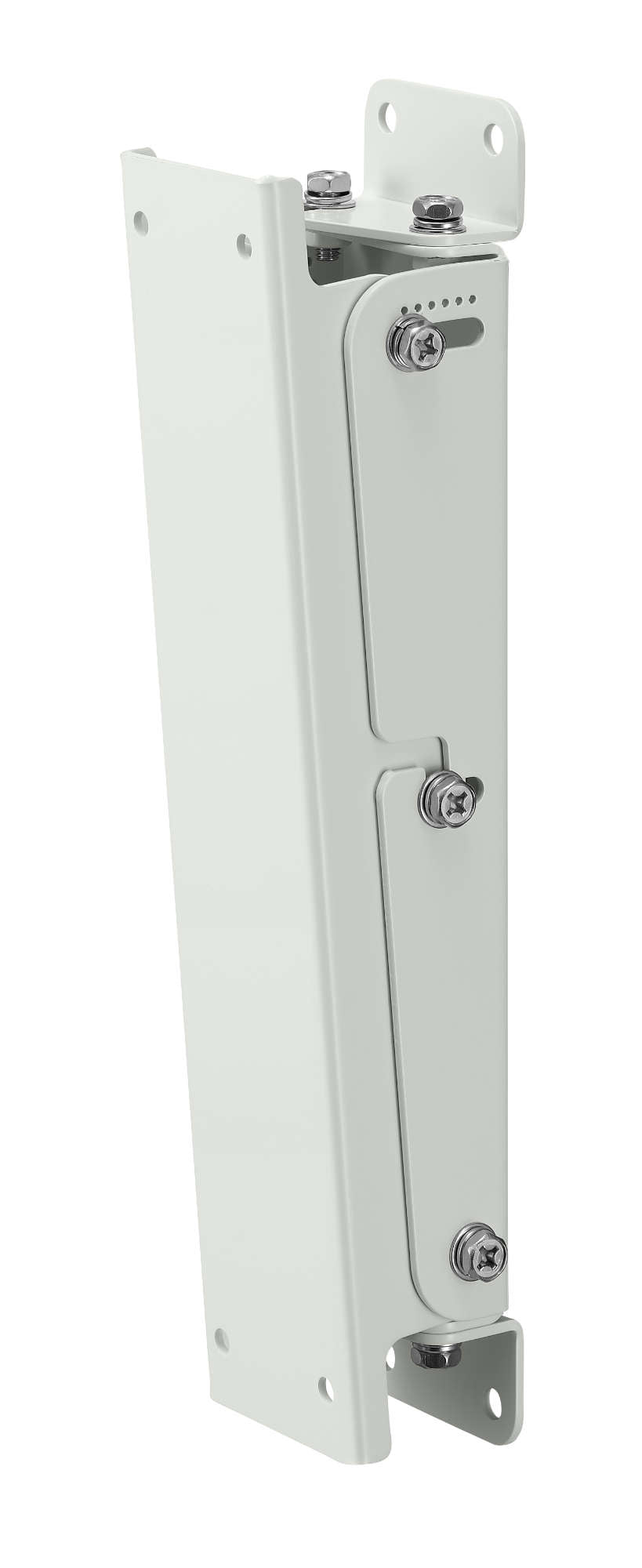

TOA SR-TB3 SR-H Series Wall Tilt Bracket
Product Details
The TOA SR-TB3 mounts a Type H slim line array to a wall and lets it be aimed. It fits the SR-H2L, SR-H2S, SR-H3L and SR-H3S.
Downward tilt adjusts from 0° to 5°, and the horizontal angle to 15°. If the speaker does not need aiming, the SR-WB3 mounts it flat to the wall for a third of the weight and a fraction of the price.
Supplied with: Hex bolts M6 × 16 with washers × 10 | hex bolts M5 × 25 with washers × 4 | speaker mounting brackets × 2 | bracket A × 1 | bracket B × 1 | joint bracket × 1. Material and finish: Steel plate, white, paint.
Features
- Wall tilt bracket for Type H slim line arrays
- Downward tilt adjustable 0° to 5°
- Horizontal angle to 15°
- Fits all four Type H models
- Full bolt and bracket set included
Specifications
| Technical | |
|---|---|
| Product Type | Wall Tilt Bracket |
| Compatible Speakers | SR-H2L, SR-H2S, SR-H3L and SR-H3S |
| Material and Finish | Steel plate, white, paint |
| Included | Hex bolts M6 × 16 with washers × 10 | hex bolts M5 × 25 with washers × 4 | speaker mounting brackets × 2 | bracket A × 1 | bracket B × 1 | joint bracket × 1 |
| Physical | |
|---|---|
| Dimensions | 64 (W) × 296 (H) × 50 (D) mm — 2.52″ × 11.65″ × 1.97″ |
| Weight | 1.4 kg (3.09 lb) |
| Color | White |
Specifications subject to change.
