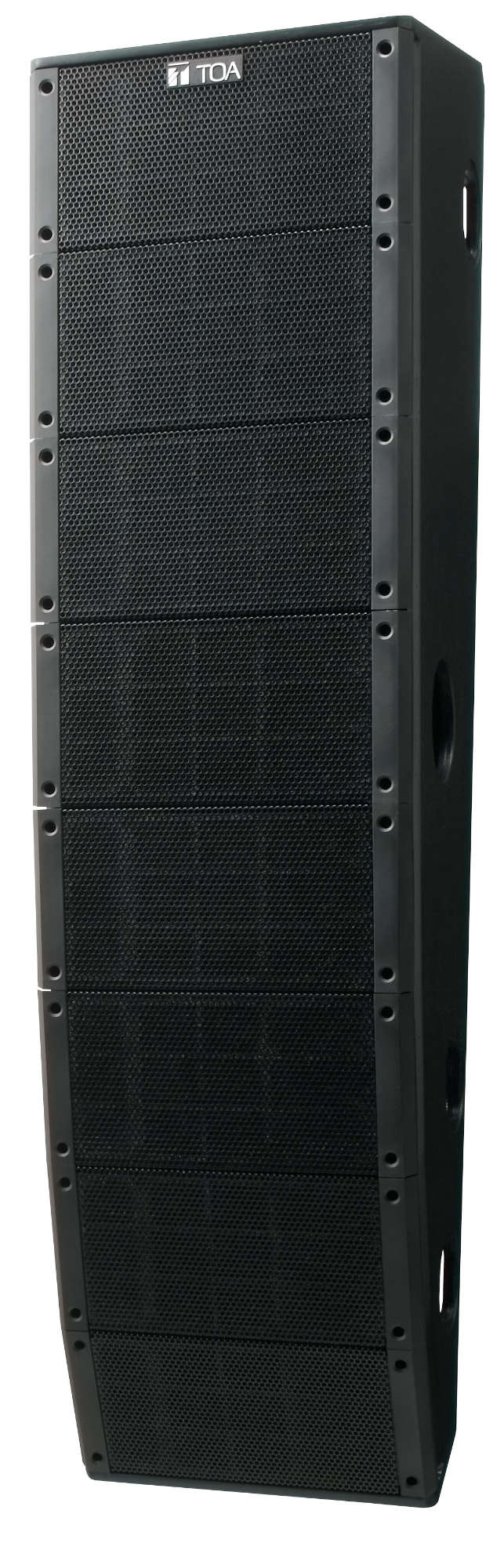

TOA SR-T5 Type T5 Line Array Speaker 8Ω/750W
Product Details
The TOA SR-T5 is the largest speaker in this group and the only one with a passive crossover built in: eight 13 cm woofers and twenty-four balanced dome tweeters in a black plywood cabinet, 750 W continuous program at 8 Ω. A line array works by stacking drivers vertically in close proximity so they behave as one tall sound source rather than several separate ones. The result is tight vertical control: sound goes to the audience and not at the ceiling or the floor, which is what keeps speech intelligible in a room with hard surfaces and a long reverberation time.
Two things set it apart from the Type H and Type S modules. It needs no external processor — an internal two-way passive crossover means it runs from a single amplifier channel with no DP-SP3 in the signal path. And its vertical dispersion is 35°, much wider than the 0° to 20° of the slim modules, with 100° horizontally: this is a speaker for covering a broad area from one point rather than throwing a narrow beam down a long room.
Mounting brackets are supplied with the speaker. The optional SR-PB5 wall pan bracket adds horizontal aiming of 5° or 10° left or right. At 29 kg in an impact-resistant plywood and polypropylene cabinet, it is built for places where a speaker is likely to take a knock.
Features
- Eight 13 cm woofers and twenty-four balanced dome tweeters
- 750 W continuous program, 250 W continuous pink noise, 8 Ω
- 96 dB sensitivity at 1 W / 1 m equivalent
- 70 Hz – 20 kHz
- Internal two-way passive crossover — no external processor needed
- 100° horizontal by 35° vertical dispersion
- Single-amplifier operation
- Impact-resistant plywood enclosure with polypropylene baffle
- Mounting brackets supplied
- Optional SR-PB5 wall pan bracket for 5° or 10° horizontal aiming
Specifications
| Technical | |
|---|---|
| Type | Impact-resistant line array speaker |
| Rated Input | 750 W continuous program | 250 W continuous pink noise |
| Rated Impedance | 8 Ω |
| Sensitivity | 96 dB (1 W, 1 m equivalent, measured at 4 m) |
| Frequency Response | 70 Hz – 20 kHz |
| Low Frequency Drivers | 8 × 13 cm |
| High Frequency Drivers | 24 × balanced dome type |
| Horizontal Dispersion | 100° |
| Vertical Dispersion | 35° |
| Crossover | Internal two-way passive network for single-amplifier operation |
| External Processor | Not required |
| Input Connector | M4 screw terminal, 10.0 mm between barriers |
| Physical | |
|---|---|
| Dimensions | 310 (W) × 1239 (H) × 341 (D) mm |
| Weight | 29 kg (63.93 lb) |
| Finish and Materials | Enclosure: plywood, black urethane paint | baffle: polypropylene, black | grille: steel, black |
| Supplied Mounting | Mounting brackets included |
| Optional Bracket | SR-PB5 wall pan bracket, 5° or 10° horizontal |
Specifications subject to change.
