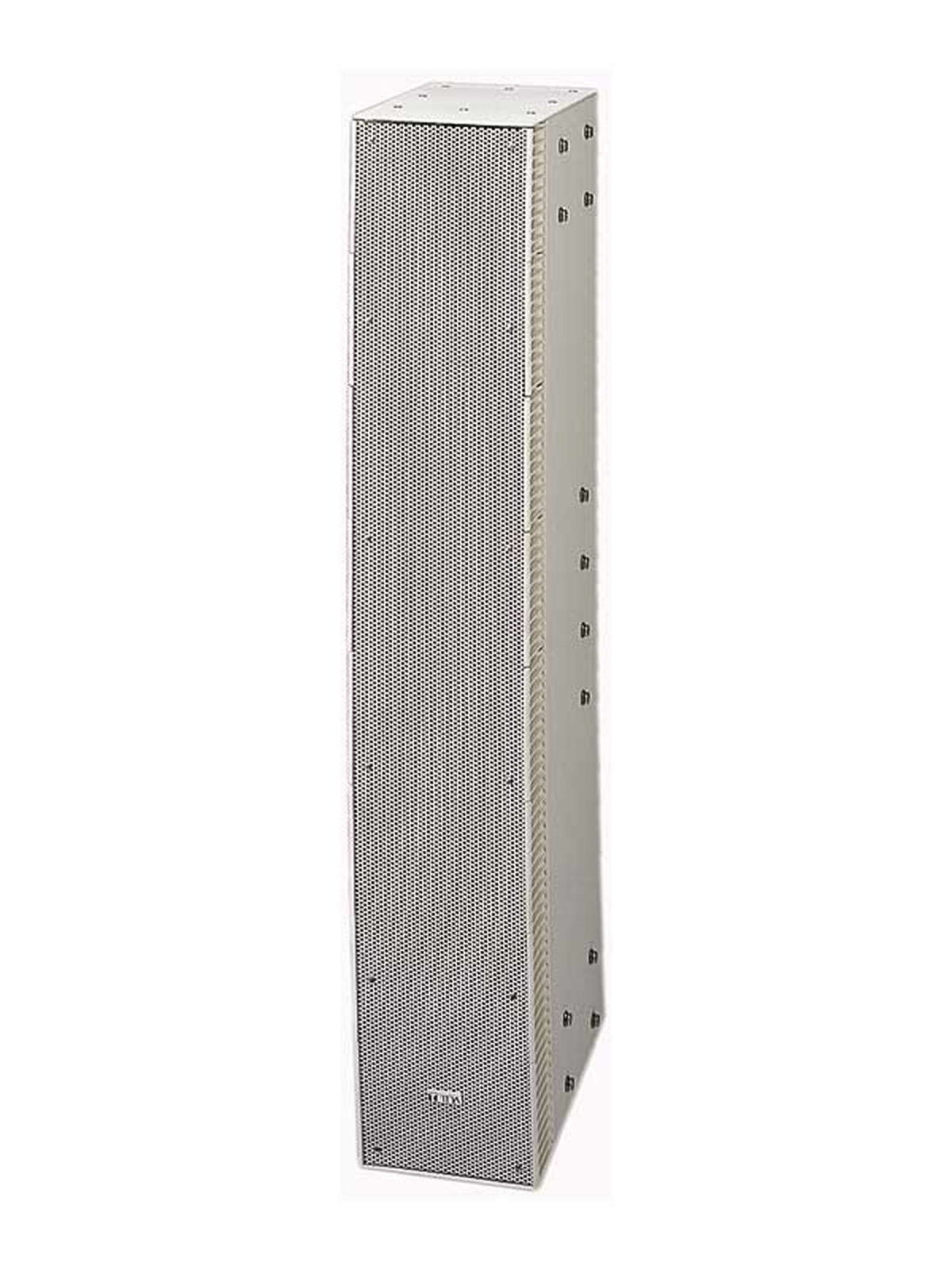

TOA SR-S4S Slim Line Array Module Curved 600 W 8Ω White
Product Details
The TOA SR-S4S is a Type S line array module: eight 10 cm woofers and twenty-four 2.5 cm dome tweeters in a 160 mm wide cabinet, 600 W continuous program at 8 ohms, with 90 degree horizontal dispersion. A line array works by stacking drivers vertically in close proximity so they behave as one tall sound source rather than several separate ones. The result is tight vertical control: sound goes to the audience and not at the ceiling or the floor, which is what keeps speech intelligible in a room with hard surfaces and a long reverberation time.
The L and S suffixes are the coverage pattern, and they are not interchangeable. L is straight — 0° vertical, a flat wall of sound within the height of the cabinet, for throwing down a long room. S is curved, spreading the pattern vertically to cover an audience closer in and across a wider depth. This one is the S version — vertical coverage 10°. The straight L model is stocked as SR-S4L. TOA quotes the frequency response with the optional DP-SP3 digital speaker processor applied. Without it the speaker still works, but the published figures assume that processing is in place — worth factoring into a system design rather than discovering afterwards.
This is the standard indoor version, MDF with a painted punched-steel grille, terminated in an M4 screw terminal and two Neutrik NL4MPXX connectors so it can be run single-amp or bi-amp. For an outdoor or under-eave position order SR-S4SWP instead — plywood and stainless steel, with a permanently attached cable — and its matching WP brackets. Mounting options: SR-FB4 flying | SR-TB4 wall tilt | SR-SA4 stand adapter | SR-EP4 extension plate.
Features
- 600 W continuous program, 8 Ω
- Bi-amp capable — 240 W low and 240 W high
- Eight 10 cm woofers and twenty-four 2.5 cm dome tweeters
- 70 Hz – 20 kHz with the optional DP-SP3 processor
- 90° horizontal dispersion
- 16 kg cabinet
- 10° vertical coverage — curved pattern
- MDF enclosure with painted punched-steel grille, white
- M4 screw terminal plus two Neutrik NL4MPXX connectors
- Indoor installation only
Specifications
| Technical | |
|---|---|
| Type | Type S line array module |
| Rated Input | 600 W continuous program (single-amp) | 240 W low and 240 W high (bi-amp) |
| Rated Impedance | 8 Ω single-amp | 8 Ω low and 8 Ω high in bi-amp mode |
| Low Frequency Drivers | 8 × 10 cm cone type |
| High Frequency Drivers | 24 × 2.5 cm balanced dome type |
| Frequency Response | 70 Hz – 20 kHz with the optional DP-SP3 parameters applied |
| Horizontal Dispersion | 90° |
| Sensitivity | 93 dB (1 W, 1 m) |
| Vertical Dispersion | 10° |
| Coverage Pattern | Curved |
| Input Connector | M4 screw terminal | 2 × Neutrik NL4MPXX |
| Installation Environment | Indoor installation only |
| Physical | |
|---|---|
| Dimensions | 160 (W) × 892 (H) × 303 (D) mm |
| Weight | 16 kg (35.27 lb) |
| Finish and Materials | Enclosure: MDF, white, paint | front grille: punched steel plate, white, acrylic paint |
| Colour | White |
| Compatible Brackets | SR-FB4 flying | SR-TB4 wall tilt | SR-SA4 stand adapter | SR-EP4 extension plate |
Specifications subject to change.
