Description
TOA SR-FB3 Flying Bracket for Type H Speaker
Product Details

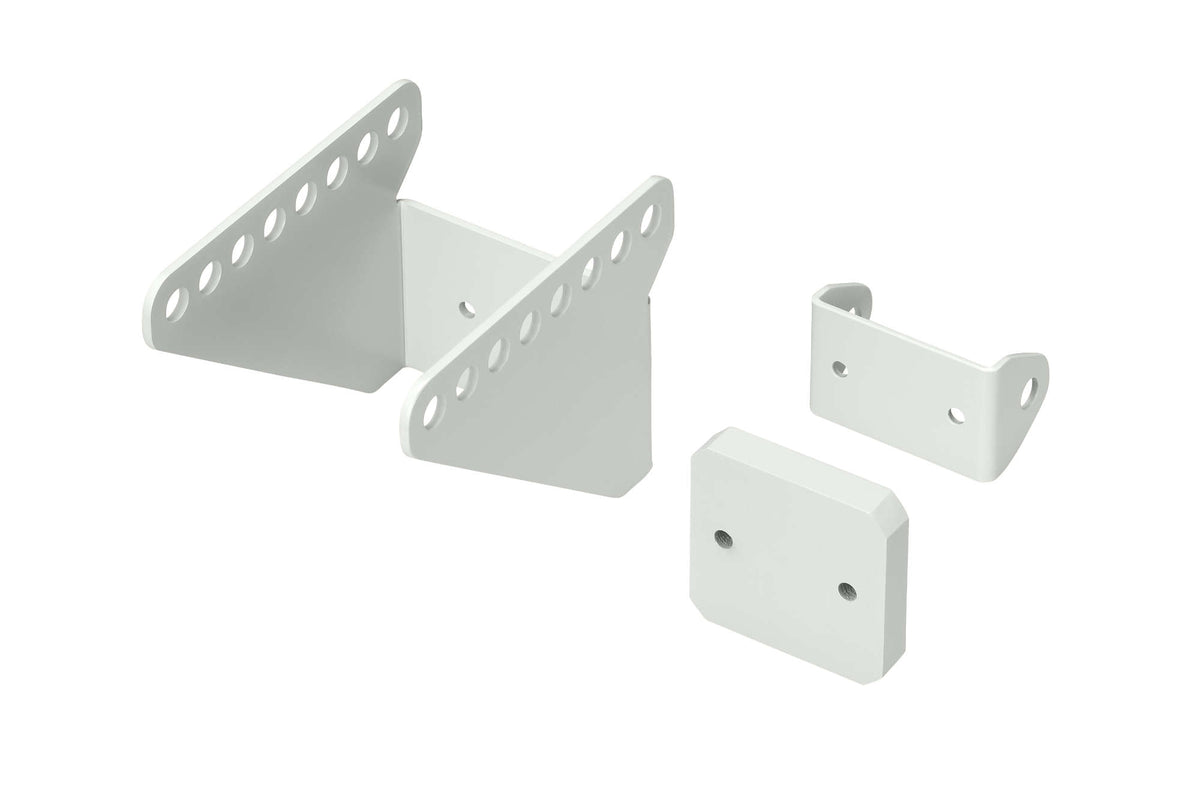

The TOA SR-FB3 suspends a Type H slim line array from above. It fits the SR-H2L, SR-H2S, SR-H3L and SR-H3S.
One important limit: a single SR-FB3 flies one speaker only. Where two Type H cabinets are linked into a taller array with the SR-EP3 extension plate, plan the rigging accordingly.
Supplied with: Suspension bracket mounting bolts, hex bolt M5 × 40 with washer × 2 | pull-back bracket mounting bolts, hex bolt M5 × 25 with washer × 2 | suspension bracket × 1 | pull-back bracket × 1 | spacer plate × 1. Material and finish: Steel plate, white, paint.
Features
- Suspends a Type H slim line array
- One speaker per bracket
- Suspension bracket, pull-back bracket and spacer plate supplied
- Fits all four Type H models
- 630 g
Specifications
| Technical | |
|---|---|
| Product Type | Flying Bracket |
| Compatible Speakers | SR-H2L, SR-H2S, SR-H3L and SR-H3S |
| Material and Finish | Steel plate, white, paint |
| Included | Suspension bracket mounting bolts, hex bolt M5 × 40 with washer × 2 | pull-back bracket mounting bolts, hex bolt M5 × 25 with washer × 2 | suspension bracket × 1 | pull-back bracket × 1 | spacer plate × 1 |
| Physical | |
|---|---|
| Weight | 630 g (1.39 lb) |
| Color | White |
Specifications subject to change.
