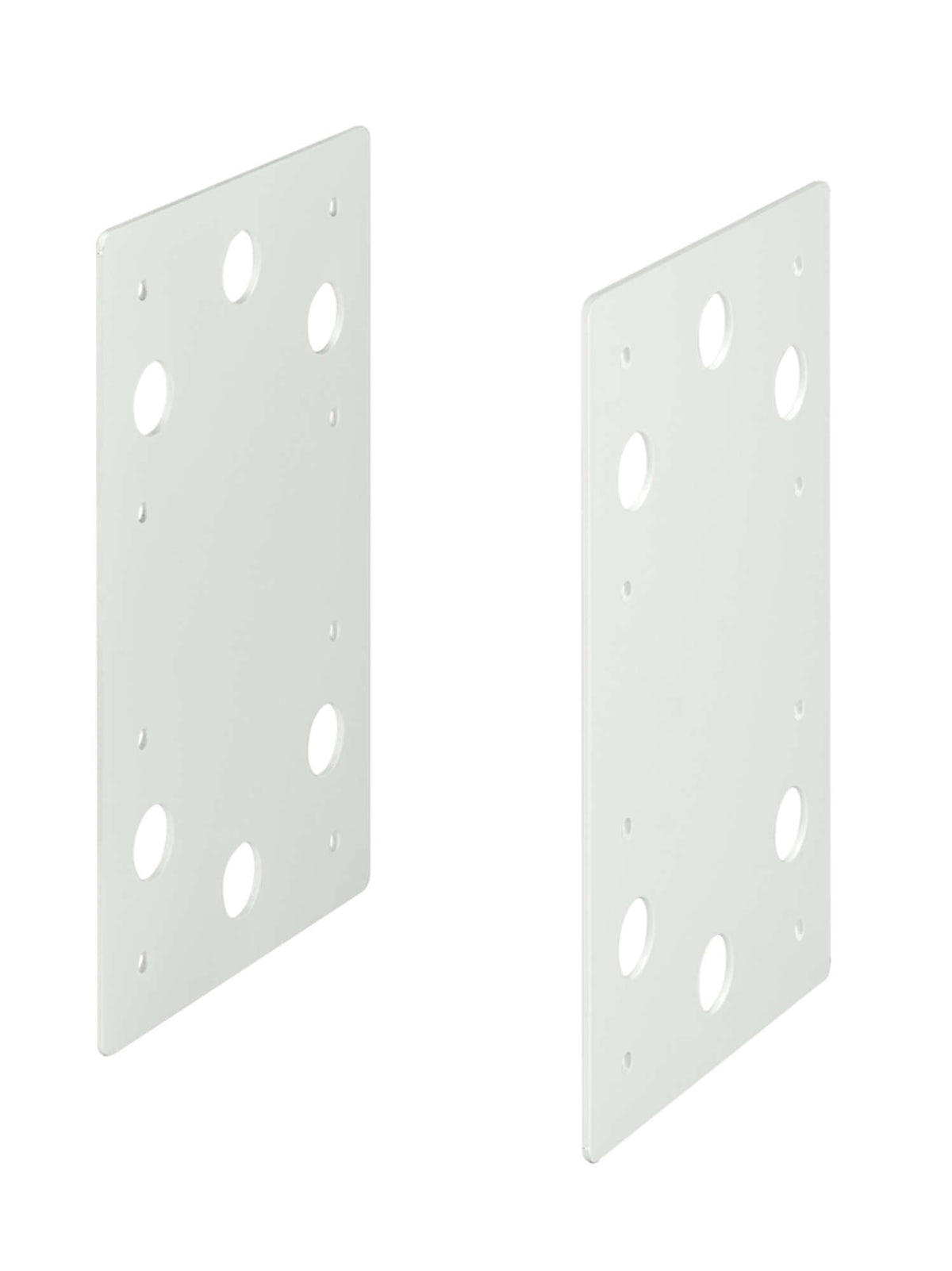

TOA SR-EP4 Extension Plate for Type S Speaker (L version only)
Product Details
The TOA SR-EP4 joins Type S line array modules into a taller array. It fits the SR-S4L and SR-S4S.
Two sets will link three speakers. The longer the array, the further down the frequency range it controls its own pattern, which is the whole reason to stack these rather than spread them around a room.
Supplied with: Speaker mounting screws, M5 upset head × 16. Material and finish: Steel plate, white, paint.
Features
- Joins Type S line array modules into one array
- Up to three speakers using two sets
- Improves low-frequency directivity control
- Sixteen mounting screws supplied
- Indoor painted steel — see SR-EP4WP for the weather-resistant speakers
Specifications
| Technical | |
|---|---|
| Product Type | Extension Plate |
| Compatible Speakers | SR-S4L and SR-S4S |
| Material and Finish | Steel plate, white, paint |
| Included | Speaker mounting screws, M5 upset head × 16 |
| Physical | |
|---|---|
| Dimensions | 140 (W) × 220 (H) × 2.3 (D) mm |
| Color | White |
Specifications subject to change.
