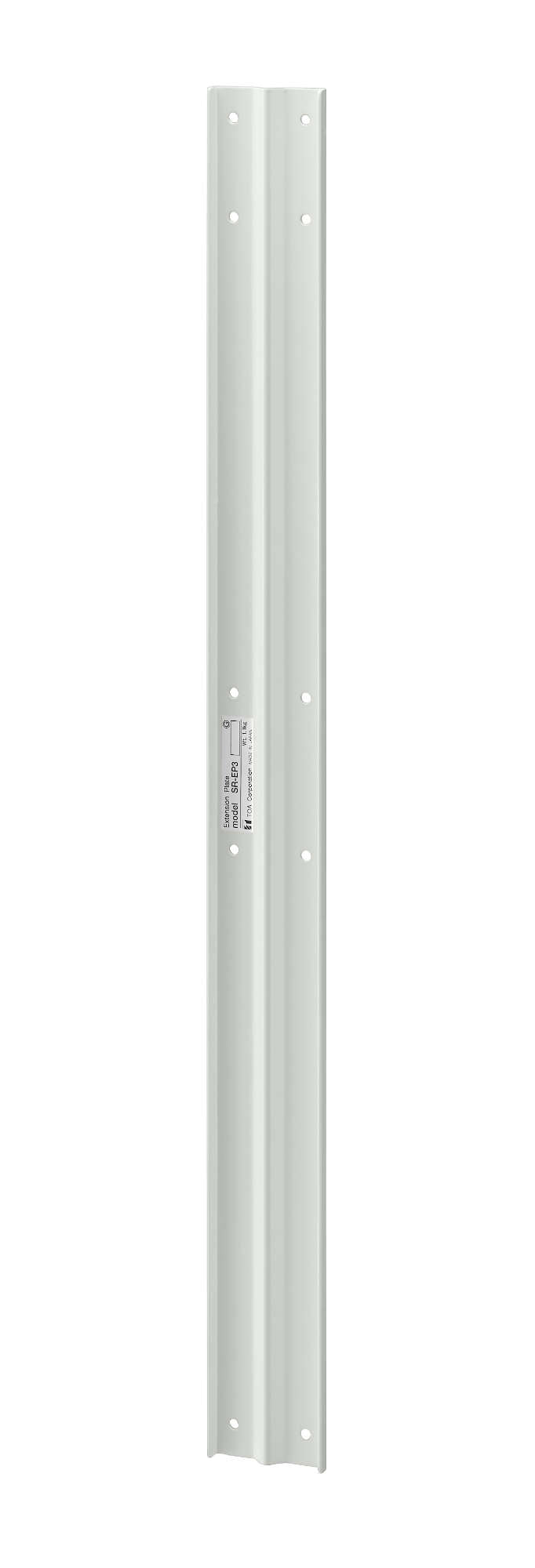

TOA SR-EP3 Extension Plate for Type H Speaker
Product Details
The TOA SR-EP3 links two straight Type H line array cabinets into one taller array. It fits the SR-H2L and SR-H3L.
Note the restriction: it joins the straight L models — SR-H2L and SR-H3L — and up to two speakers. The curved S models are not listed for it, because a curved array's cabinets meet at an angle rather than flush.
Supplied with: Speaker mounting bolts, hex bolt M5 × 25 with washers × 8. Material and finish: Steel plate, white, paint.
Features
- Links two straight Type H cabinets into one array
- For the SR-H2L and SR-H3L — the straight models
- Maximum two speakers
- A longer array improves low-frequency directivity control
- Eight mounting bolts supplied
Specifications
| Technical | |
|---|---|
| Product Type | Extension Plate |
| Compatible Speakers | SR-H2L and SR-H3L |
| Material and Finish | Steel plate, white, paint |
| Included | Speaker mounting bolts, hex bolt M5 × 25 with washers × 8 |
| Physical | |
|---|---|
| Dimensions | 64 (W) × 720 (H) × 11.5 (D) mm — 2.52″ × 28.35″ × 0.45″ |
| Weight | 1.1 kg (2.43 lb) |
| Color | White |
Specifications subject to change.
