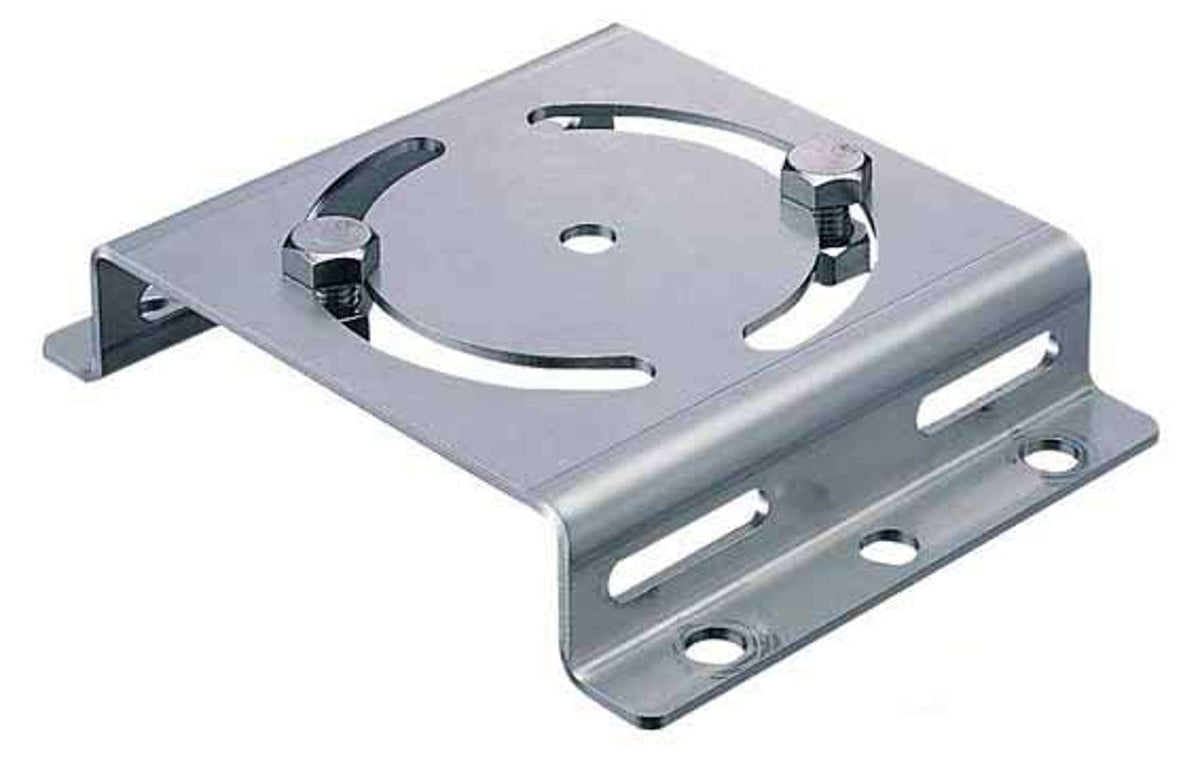

TOA SP-201 Wall Mount Bracket for Horn Speaker
Product Details
The TOA SP-201 is a stainless steel bracket for mounting a horn speaker to a wall. With the optional YS-60B pole band it will also clamp a speaker to a pole between 7.9 and 13.4 inches in diameter.
Worth knowing before ordering: every SC and TC horn speaker in this range already ships with its own mounting bracket. The SP-201 is not a replacement for a missing part — it is a heavier stainless steel alternative for installations where the supplied bracket is not the right answer, typically pole mounting, awkward wall geometry, or an exposed location where a steel bracket would eventually corrode.
It carries up to 10 kg (22 lb), which covers every horn in the SC and TC range including the 4 kg TC-651M. TOA advises reinforcing brackets and bands where a speaker will face significant vibration or strong wind, and inspecting installed hardware periodically for wear and loose fixings.
Features
- Wall mount bracket for TOA horn speakers
- Pole mounting with the optional YS-60B band, Ø7.9″ to Ø13.4″
- Maximum load 10 kg (22 lb)
- Stainless steel bracket and screws
- Supplied with M10 × 25 and M8 × 20 bolt sets
- 610 g (1.34 lb), bracket only
- An alternative to the bracket supplied with the speaker, not a replacement for a missing one
- Reinforce the fixing where vibration or strong wind is expected
Specifications
| Technical | |
|---|---|
| Product Type | Speaker mounting bracket |
| Application | Mounts a horn speaker to a wall |
| Pole Mounting | Ø200–Ø340 mm (Ø7.9″–Ø13.4″) with the optional YS-60B pole band |
| Maximum Load | 10 kg (22 lb) |
| Compatibility | TOA horn speakers within the 10 kg load limit, including the SC and TC ranges |
| Note | SC and TC horn speakers are supplied with their own mounting bracket; the SP-201 is an alternative, not a required part |
| Physical | |
|---|---|
| Finish | Bracket: stainless steel | screws: stainless steel |
| Weight | 610 g (1.34 lb), bracket only |
| Included | Mounting bracket × 1 | mounting screws (M10 × 25 bolt set and M8 × 20 bolt set) × 1 set each |
| Installation Note | Reinforce mounting brackets and bands where the speaker will face significant vibration or strong wind; inspect periodically for wear and loose fixings |
Specifications subject to change.
