TOA SC-651 Paging Horn Speaker 50 W 16Ω Mounting Bracket Included
Product Details

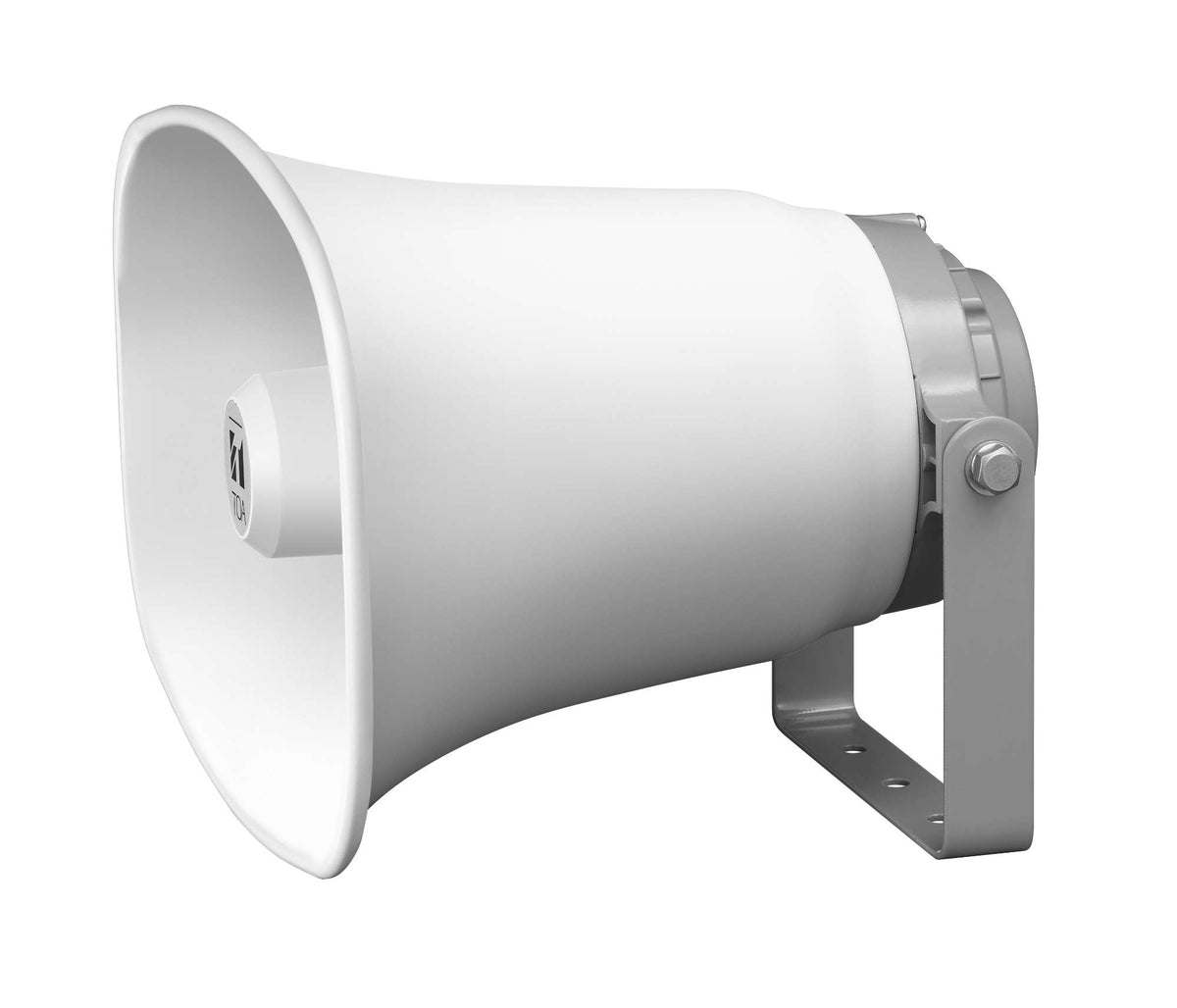

The TOA SC-651 is the largest horn in this group: 50 W through an oval aluminum flare 16.93 inches across, built for long throw across big open sites.
Note the impedance — this one is 16 ohms, not the 8 ohms of the smaller SC horns, so check the amplifier's minimum load before wiring a run of them. The compression driver uses a polyimide diaphragm to take the 50 W continuously, and frequency response is 250 Hz to 6 kHz: narrower at the top than the small horns, traded for output and reach. A steel bracket allows wall, pole or ceiling mounting.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker.
Features
- 50 W rated input, 30 W on a mobile mount
- 16 Ω rated impedance — not 8 Ω
- Polyimide compression diaphragm for sustained 50 W output
- Oval aluminum horn, 16.93″ across
- 250 Hz – 6 kHz, traded for output and reach
- Steel bracket for wall, pole or ceiling mounting
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 50 W (mobile mount use: 30 W) |
| Rated Impedance | 16 Ω — not 8 Ω; check the amplifier's minimum load |
| Sound Pressure Level | 109 dB (1 W, 1 m) |
| Frequency Response | 250 Hz – 6 kHz |
| Diaphragm | Polyimide |
| Polarity | Hot: black | Com: white |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +55 °C (−4 °F to 131 °F), free from dew condensation |
| Physical | |
|---|---|
| Dimensions | 430 (W) × 297.5 (H) × 327 (D) mm — 16.93″ × 11.71″ × 12.87″ |
| Weight | 3.4 kg (7.5 lb) |
| Finish and Materials | Horn: aluminum, off-white powder coating | reflector: ABS resin | bracket holder: aluminum, grey powder coating | bracket: steel, grey powder coating | rear cover: ABS resin, grey | external fasteners: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
Specifications subject to change.
