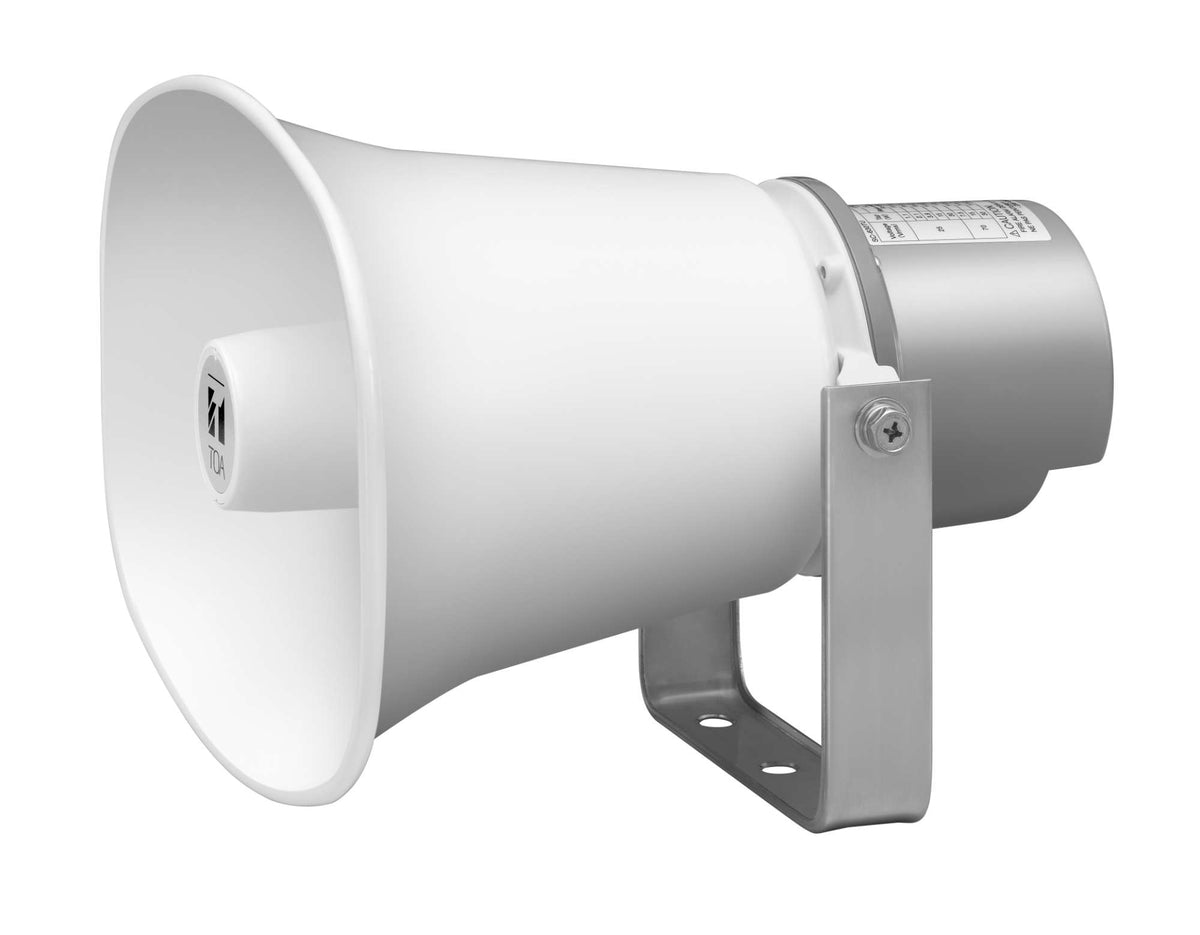

TOA SC-630TU Paging Horn Speaker 30 W 25/70.7 V Transformer Mounting Bracket Included
Product Details
The TOA SC-630TU is the UL-listed version of the SC-630T — electrically the same 30 W, 113 dB horn on a 25 V or 70.7 V line, listed to UL 1480 and ULC-S541 for use in emergency communication and life-safety systems.
That listing is the reason to choose it, and it is not a detail to substitute around: where a system is designed for emergency voice communication, the speakers have to carry the listing or the installation will not pass inspection. It also takes a much wider temperature range than the standard SC-630T — −40 °F to 151 °F against −4 °F to 131 °F — so it holds up in unconditioned and extreme locations.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker. The standard, non-UL-listed version is the SC-630T.
Features
- UL 1480 UUMW and ULC-S541 listed for emergency communication systems
- Wider operating range: −40 °F to 151 °F
- 30 W rated input with built-in line transformer
- Three taps on a 70 V line: 30 W, 15 W, 7.5 W
- Five taps on a 25 V line, from 30 W down to 1.1 W
- 113 dB sensitivity at 1 W / 1 m
- Grey rear cover distinguishes it from the standard SC-630T
- Optional YS-151S swivel bracket in place of the supplied bracket
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 30 W |
| Certification | UL 1480 UUMW | ULC-S541 |
| Rated Impedance — 70 V Line | 170 Ω (30 W) | 330 Ω (15 W) | 650 Ω (7.5 W) |
| Rated Impedance — 25 V Line | 21 Ω (30 W) | 42 Ω (15 W) | 170 Ω (3.9 W) | 330 Ω (2.1 W) | 650 Ω (1.1 W) |
| Sound Pressure Level | 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 250 Hz – 10 kHz |
| Dust and Water Protection | IP65 |
| Operating Temperature | −40 °C to +66 °C (−40 °F to 151 °F) |
| Physical | |
|---|---|
| Dimensions | 285 (W) × 227 (H) × 277 (D) mm — 11.22″ × 8.94″ × 10.91″ |
| Weight | 2 kg (4.41 lb) |
| Finish and Materials | Horn flare: aluminum, white powder coating | reflector horn: ABS resin, white | rear cover: ABS resin, grey | bracket and hardware: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
| Optional Accessory | YS-151S swivel bracket, in place of the supplied bracket |
Specifications subject to change.
