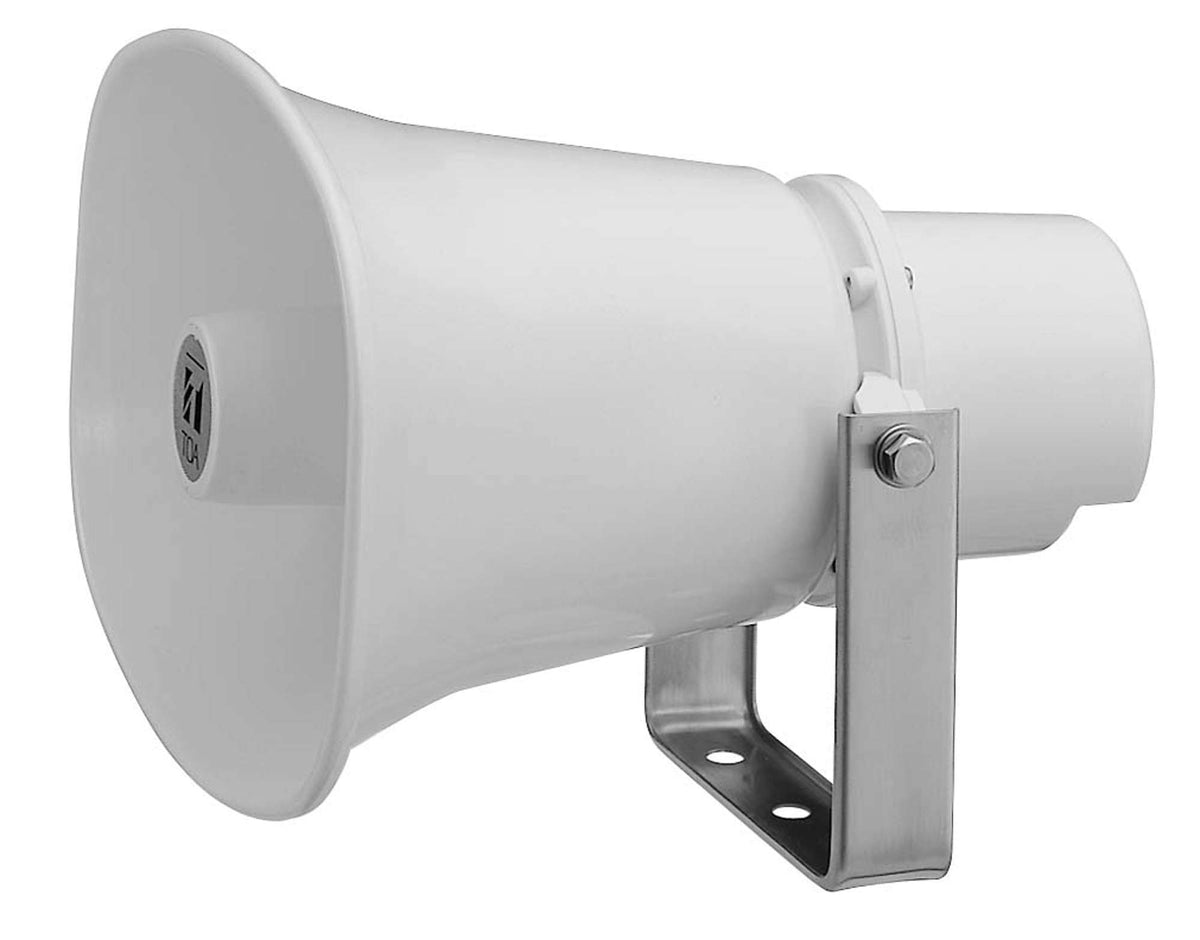

TOA SC-630T Paging Horn Speaker 30 W 25/70.7 V Transformer Mounting Bracket Included
Product Details
The TOA SC-630T is the transformer version of the SC-630: the same 30 W horn at 113 dB, with a line-matching transformer and tap selector built in for 25 V and 70.7 V distributed systems.
Frequency response runs 250 Hz to 10 kHz, which is what gives a voice weight at distance. This is the transformer version, built for 25 V and 70.7 V constant-voltage distributed lines — the usual arrangement where many speakers share one amplifier across a building or site. A tap selector on the speaker sets how much power it draws, so the load can be balanced across the run. For a direct low-impedance connection to an amplifier instead, order the version without the T.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker. The matching low-impedance model is the SC-630. A UL-listed version for life-safety systems is stocked as the SC-630TU.
Features
- 30 W rated input with built-in line transformer
- Impedance selector for easy matching in distributed systems
- Three taps on a 70 V line: 30 W, 15 W, 7.5 W
- Five taps on a 25 V line, from 30 W down to 1 W
- 113 dB sensitivity — the highest in the SC range
- Optional YS-151S swivel bracket in place of the supplied bracket
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 30 W |
| Rated Impedance — 70 V Line | 170 Ω (30 W) | 330 Ω (15 W) | 650 Ω (7.5 W) |
| Rated Impedance — 25 V Line | 21 Ω (30 W) | 42 Ω (15 W) | 170 Ω (3.7 W) | 330 Ω (1.9 W) | 650 Ω (1 W) |
| Sound Pressure Level | 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 250 Hz – 10 kHz |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +55 °C (−4 °F to 131 °F) |
| Physical | |
|---|---|
| Dimensions | 285 (W) × 227 (H) × 277 (D) mm — 11.22″ × 8.94″ × 10.91″ |
| Weight | 2 kg (4.41 lb) |
| Finish and Materials | Horn flare: aluminum, powder coating | reflector horn and rear cover: ABS resin | bracket, screws and bolts: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
| Optional Accessory | YS-151S swivel bracket, in place of the supplied bracket |
Specifications subject to change.
