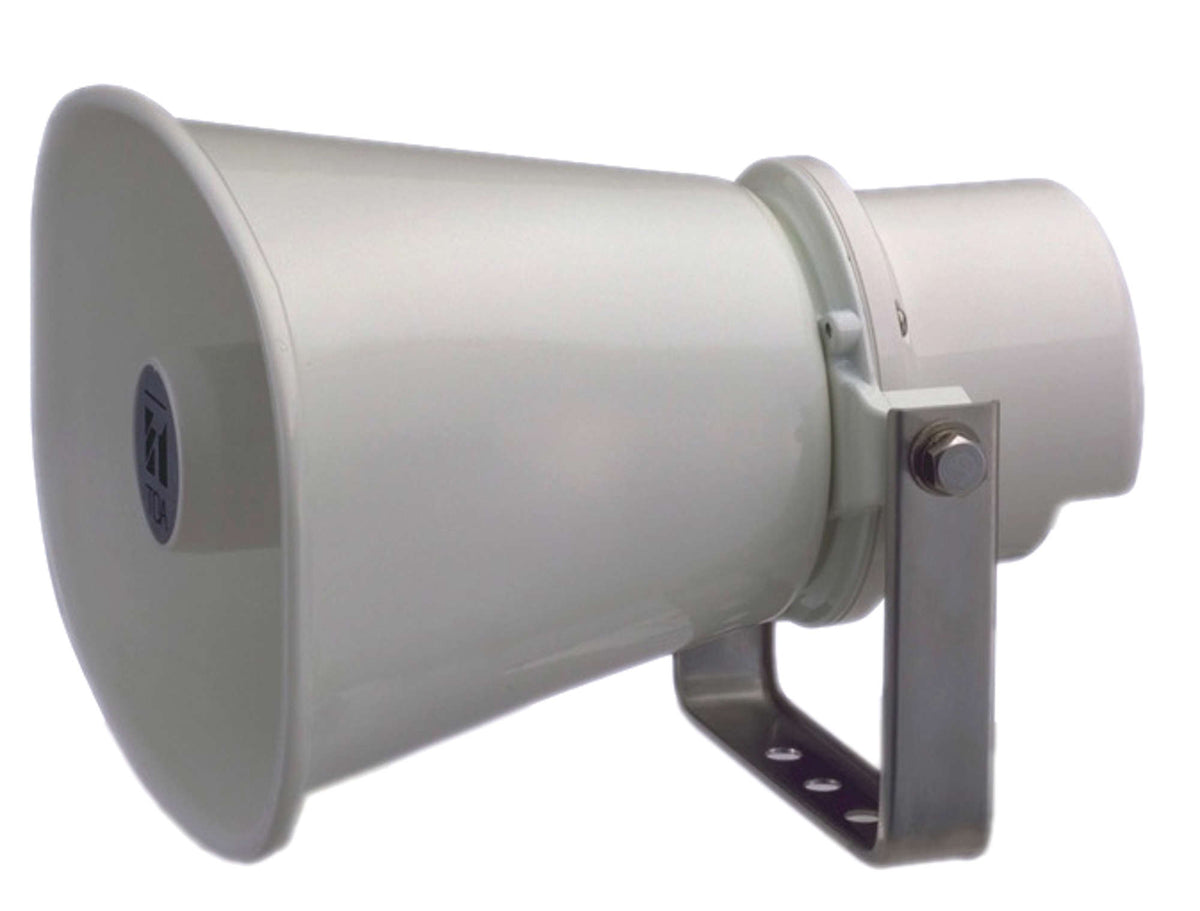

TOA SC-615 Paging Horn Speaker 15 W 8Ω Mounting Bracket Included
Product Details
The TOA SC-615 is the middle horn of TOA's SC paging range: 15 W into 8 ohms at 112 dB, in an 8.74-inch flare — more reach than the SC-610 without the bulk of the 30 W SC-630.
Frequency response runs 280 Hz to 12.5 kHz, reaching a little lower than the SC-610 and tuned for speech intelligibility rather than music. This is the low-impedance version, for connecting directly to an amplifier's 8 or 16 ohm speaker output. For a 25 V or 70.7 V distributed line — the usual arrangement in a building-wide paging system — order the T version instead, which has the matching transformer built in.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker. The matching transformer model is the SC-615T.
Features
- 15 W rated input, 10 W on a mobile mount
- 112 dB sensitivity at 1 W / 1 m
- 280 Hz – 12.5 kHz, tuned for speech intelligibility
- Low-impedance 8 Ω — connects straight to an amplifier
- Optional YS-151S swivel bracket in place of the supplied bracket
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 15 W (mobile mount use: 10 W) |
| Rated Impedance | 8 Ω |
| Sound Pressure Level | 112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 280 Hz – 12.5 kHz |
| Polarity | Hot: black | Com: white |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +55 °C (−4 °F to 131 °F), free from dew condensation |
| Physical | |
|---|---|
| Dimensions | 222 (W) × 179 (H) × 234 (D) mm — 8.74″ × 7.04″ × 9.21″ |
| Weight | 1.1 kg (2.43 lb) |
| Finish and Materials | Horn flare: aluminium, off-white powder coating | reflector horn and rear cover: ABS resin, off-white | bracket, screws and bolts: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
| Optional Accessory | YS-151S swivel bracket, in place of the supplied bracket |
Specifications subject to change.
