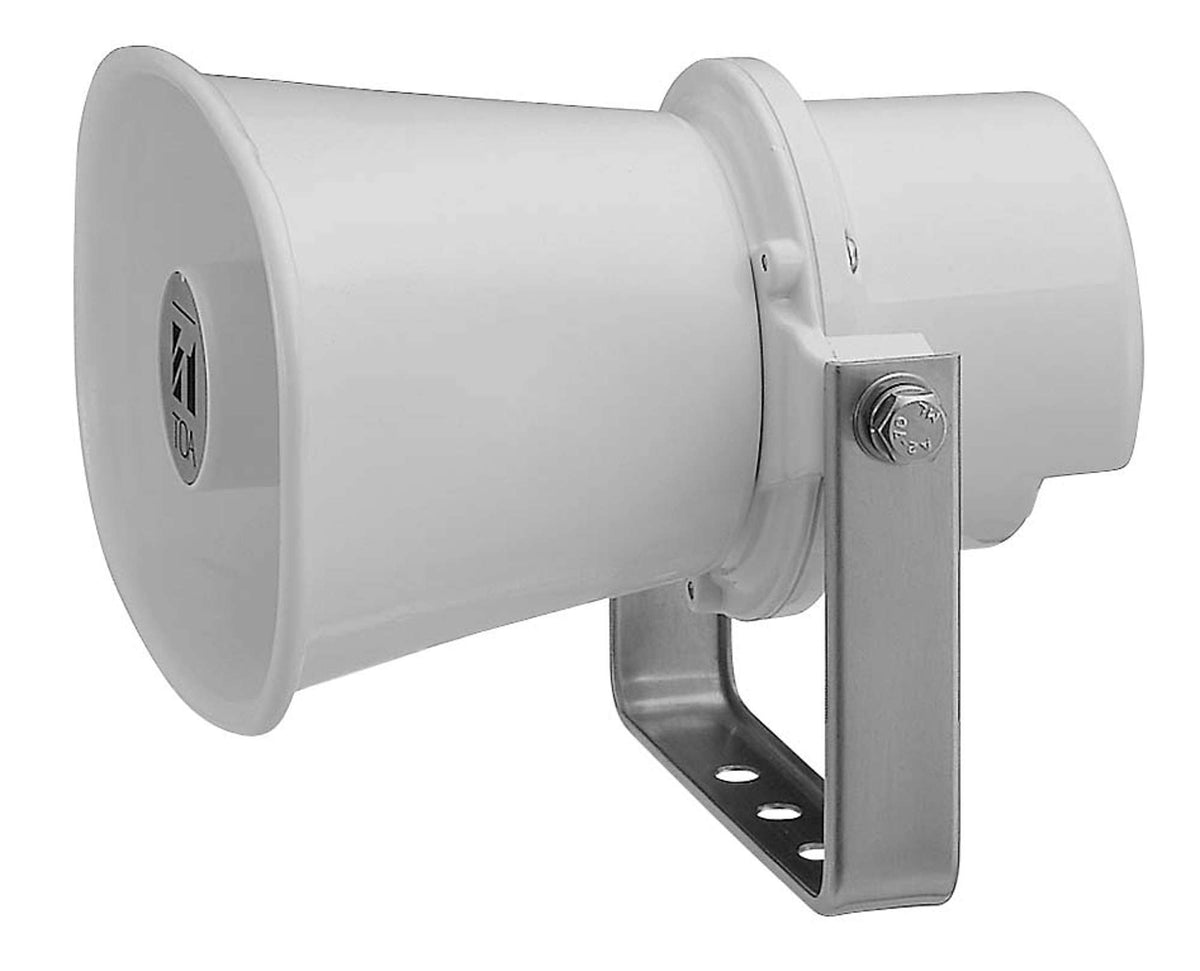

TOA SC-610T Paging Horn Speaker 10 W 25/70.7 V Transformer Mounting Bracket Included
Product Details
The TOA SC-610T is the transformer version of the SC-610: the same compact 10 W horn and the same 110 dB output, with a line-matching transformer built in so it can sit on a 25 V or 70.7 V distributed system.
Frequency response runs 315 Hz to 12.5 kHz, tuned for speech rather than music. This is the transformer version, built for 25 V and 70.7 V constant-voltage distributed lines — the usual arrangement where many speakers share one amplifier across a building or site. A tap selector on the speaker sets how much power it draws, so the load can be balanced across the run. For a direct low-impedance connection to an amplifier instead, order the version without the T.
The housing is rated IP65 against dust and water: an aluminium horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker. The matching low-impedance model is the SC-610.
Features
- 10 W rated input with built-in line transformer
- Three taps on a 70 V line: 10 W, 5 W, 2.5 W
- Five taps on a 25 V line, from 10 W down to 0.3 W
- 110 dB sensitivity at 1 W / 1 m
- 315 Hz – 12.5 kHz, tuned for speech intelligibility
- Optional YS-151S swivel bracket in place of the supplied bracket
- IP65 rated against dust and water for outdoor use
- Aluminium horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 10 W |
| Rated Impedance — 70 V Line | 500 Ω (10 W) | 1 kΩ (5 W) | 2 kΩ (2.5 W) |
| Rated Impedance — 25 V Line | 63 Ω (10 W) | 130 Ω (5 W) | 500 Ω (1.3 W) | 1 kΩ (0.6 W) | 2 kΩ (0.3 W) |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 315 Hz – 12.5 kHz |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +55 °C (−4 °F to 131 °F), free from dew condensation |
| Physical | |
|---|---|
| Dimensions | 172 (W) × 161 (H) × 188 (D) mm — 6.77″ × 6.34″ × 7.40″ |
| Weight | 1.2 kg (2.65 lb) |
| Finish and Materials | Horn flare: aluminium, off-white powder coating | reflector horn and rear cover: ABS resin, off-white | bracket, screws and bolts: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
| Optional Accessory | YS-151S swivel bracket, in place of the supplied bracket |
Specifications subject to change.
