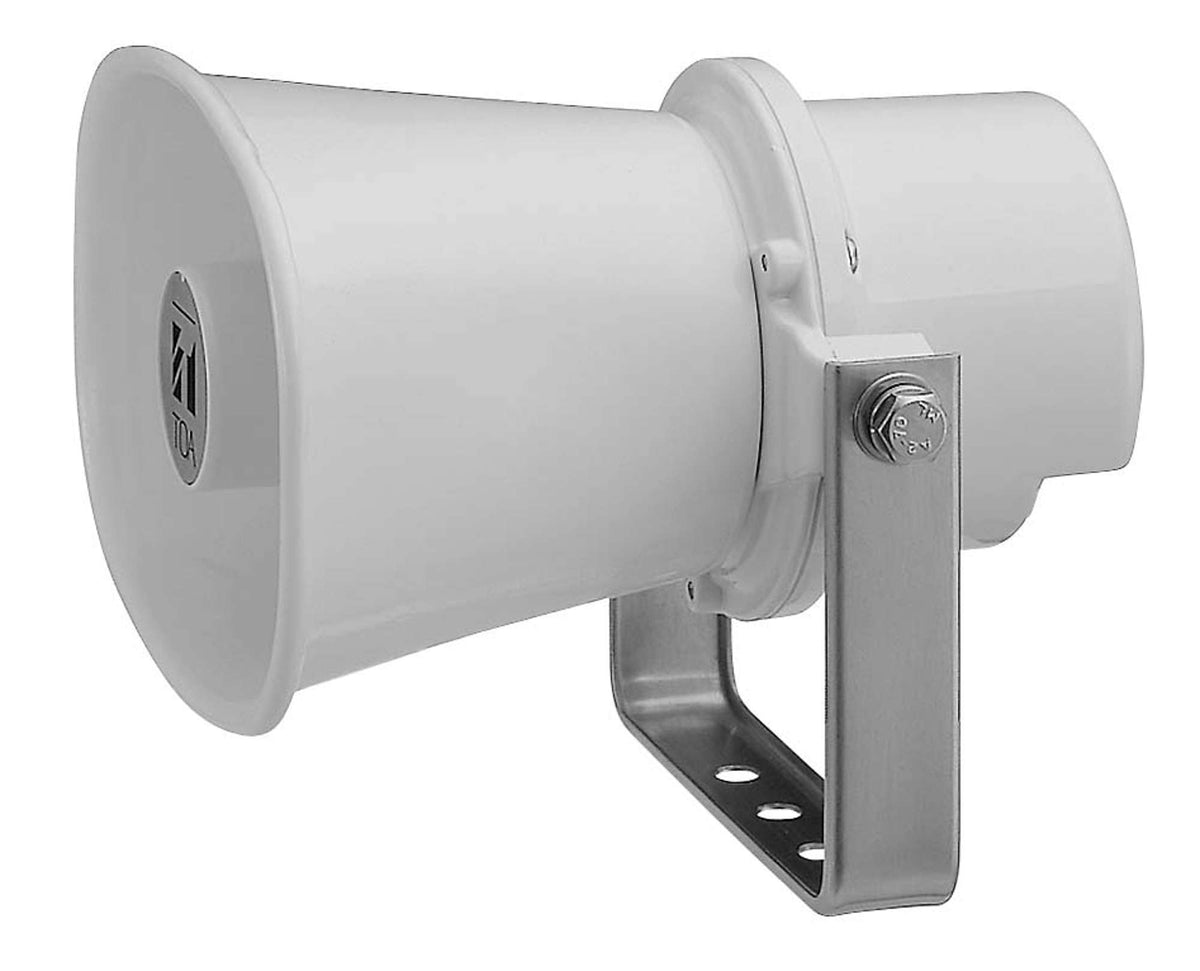

TOA SC-610 Paging Horn Speaker 10 W 8Ω Mounting Bracket Included
Product Details
The TOA SC-610 is the smallest horn in TOA's SC paging range: 10 W into 8 ohms, 110 dB sensitivity, and a 6.77-inch flare that puts clear speech into a yard, a loading bay or a stairwell without dominating the building it is fixed to.
Frequency response runs 315 Hz to 12.5 kHz — deliberately narrow at both ends, because a paging horn is tuned for the band where speech intelligibility lives rather than for music. This is the low-impedance version, for connecting directly to an amplifier's 8 or 16 ohm speaker output. For a 25 V or 70.7 V distributed line — the usual arrangement in a building-wide paging system — order the T version instead, which has the matching transformer built in.
The housing is rated IP65 against dust and water: an aluminum horn flare with powder coating, an ABS reflector and rear cover, and stainless steel bracket and fixings, which is what lets it live outdoors without the hardware rusting into the wall. A mounting bracket is supplied with the speaker. The matching transformer model is the SC-610T.
Features
- 10 W rated input, 5 W on a mobile mount
- 110 dB sensitivity at 1 W / 1 m
- 315 Hz – 12.5 kHz, tuned for speech intelligibility
- Low-impedance 8 Ω — connects straight to an amplifier
- Compact 6.77″ flare
- Optional YS-151S swivel bracket in place of the supplied bracket
- IP65 rated against dust and water for outdoor use
- Aluminum horn flare with powder coating
- ABS resin reflector horn and rear cover
- Stainless steel bracket, screws and bolts
- Mounting bracket supplied
- 600 mm PVC-insulated speaker cable fitted
Specifications
| Technical | |
|---|---|
| Rated Input | 10 W (mobile mount use: 5 W) |
| Rated Impedance | 8 Ω |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 315 Hz – 12.5 kHz |
| Polarity | Hot: black | Com: white |
| Dust and Water Protection | IP65 |
| Operating Temperature | −20 °C to +55 °C (−4 °F to 131 °F), free from dew condensation |
| Physical | |
|---|---|
| Dimensions | 172 (W) × 161 (H) × 188 (D) mm — 6.77″ × 6.34″ × 7.40″ |
| Weight | 1 kg (2.2 lb) |
| Finish and Materials | Horn flare: aluminum, off-white powder coating | reflector horn and rear cover: ABS resin, off-white | bracket, screws and bolts: stainless steel |
| Supplied Bracket | Mounting bracket included |
| Speaker Cable | PVC-insulated, 6 mm diameter, 600 mm length |
| Optional Accessory | YS-151S swivel bracket, in place of the supplied bracket |
Specifications subject to change.
