TOA MT-200 200W 70V to 8Ω Transformer
Product Details

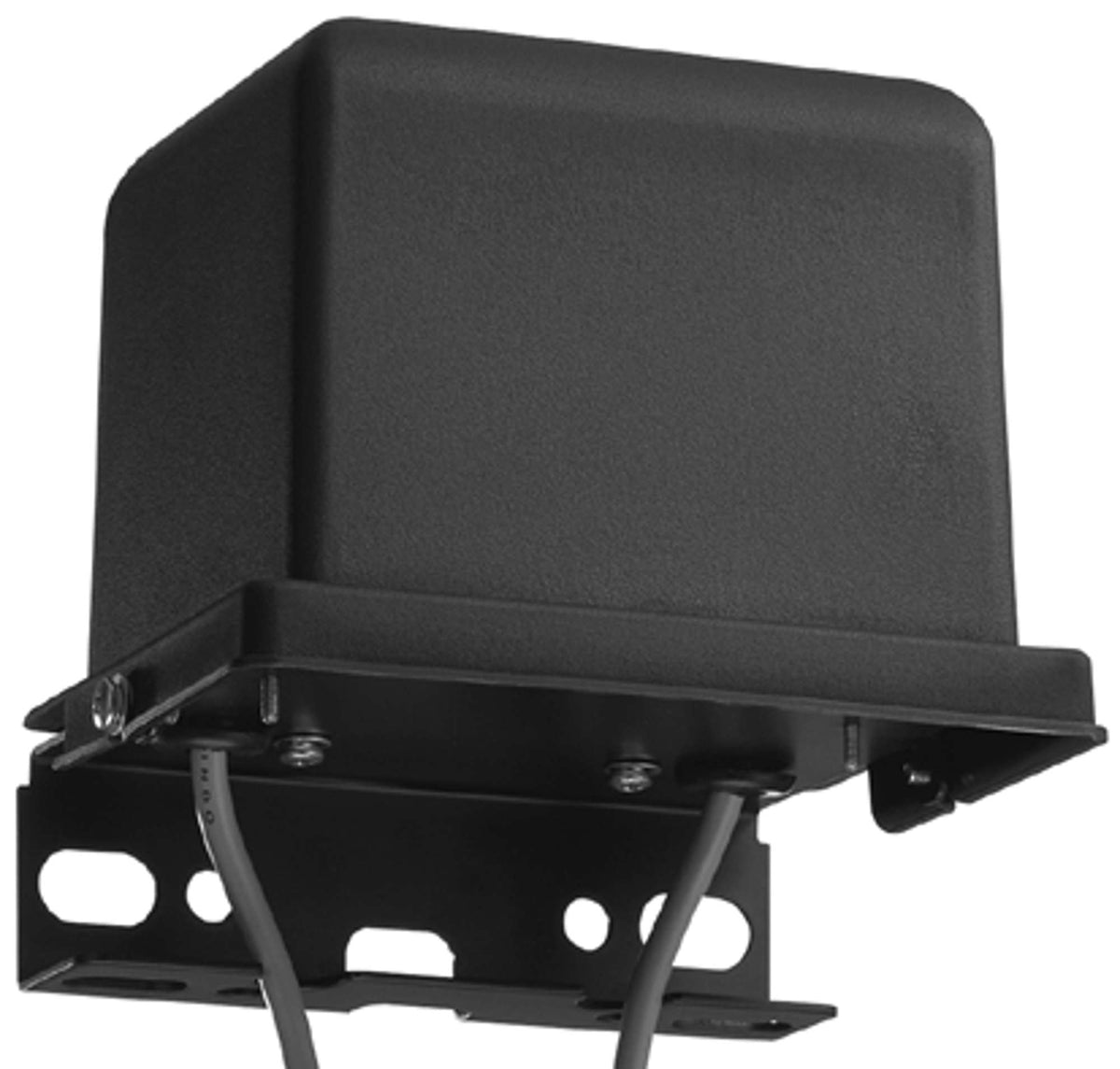

The TOA MT-200 is a 200 W matching transformer that puts an 8-ohm speaker onto a 70 V or 100 V constant-voltage distributed line.
It is what the HX-5 and HX-7 arrays need in order to join a building-wide system. Both are 8-ohm speakers with no internal transformer, so without this part they can only be wired directly to an amplifier. Taps run from 200 W down to 30 W on a 70 V line and 200 W down to 60 W on 100 V, so the load each speaker draws can be set to balance the run.
It is rated IPX4 and suited to indoor and under-eave installation, with a polypropylene cover and a stainless steel mounting bracket. To fix it to an HX-7 cabinet, add the HY-MT7 adapter; the HY-MS7 outdoor wall assemblies already carry provision for it.
Features
- 200 W matching transformer, 70 V and 100 V to 8 Ω
- Four taps on a 70 V line: 200 W, 100 W, 60 W, 30 W
- Three taps on a 100 V line: 200 W, 120 W, 60 W
- Puts an HX-5 or HX-7 array onto a distributed line
- Fits all four HX-5 and all four HX-7 models
- IPX4 water protection
- Polypropylene cover with stainless steel mounting bracket
- M8 speaker mounting bolts and washers included
- Use the HY-MT7 adapter to fix it to an HX-7 cabinet
Specifications
| Technical | |
|---|---|
| Product Type | Matching transformer |
| Rated Power | 200 W |
| Output Impedance | 8 Ω |
| Rated Impedance — 100 V Line | 50 Ω (200 W) | 83 Ω (120 W) | 167 Ω (60 W) |
| Rated Impedance — 70 V Line | 25 Ω (200 W) | 50 Ω (100 W) | 83 Ω (60 W) | 167 Ω (30 W) |
| Compatible Speakers | HX-5B | HX-5B-WP | HX-5W | HX-5W-WP | HX-7B | HX-7B-WP | HX-7W | HX-7W-WP |
| Water Protection | IPX4 |
| Installation Environment | Indoor installation | under-eave installation |
| Physical | |
|---|---|
| Dimensions | 164 (W) × 141 (H) × 129 (D) mm |
| Weight | 2.8 kg (6.17 lb) |
| Finish and Materials | Cover: polypropylene | mounting bracket: stainless steel |
| Included | Speaker mounting bolts (M8) with washers × 2 |
| Mounting to an HX-7 | Requires the HY-MT7 matching transformer adapter |
Specifications subject to change.
