Description

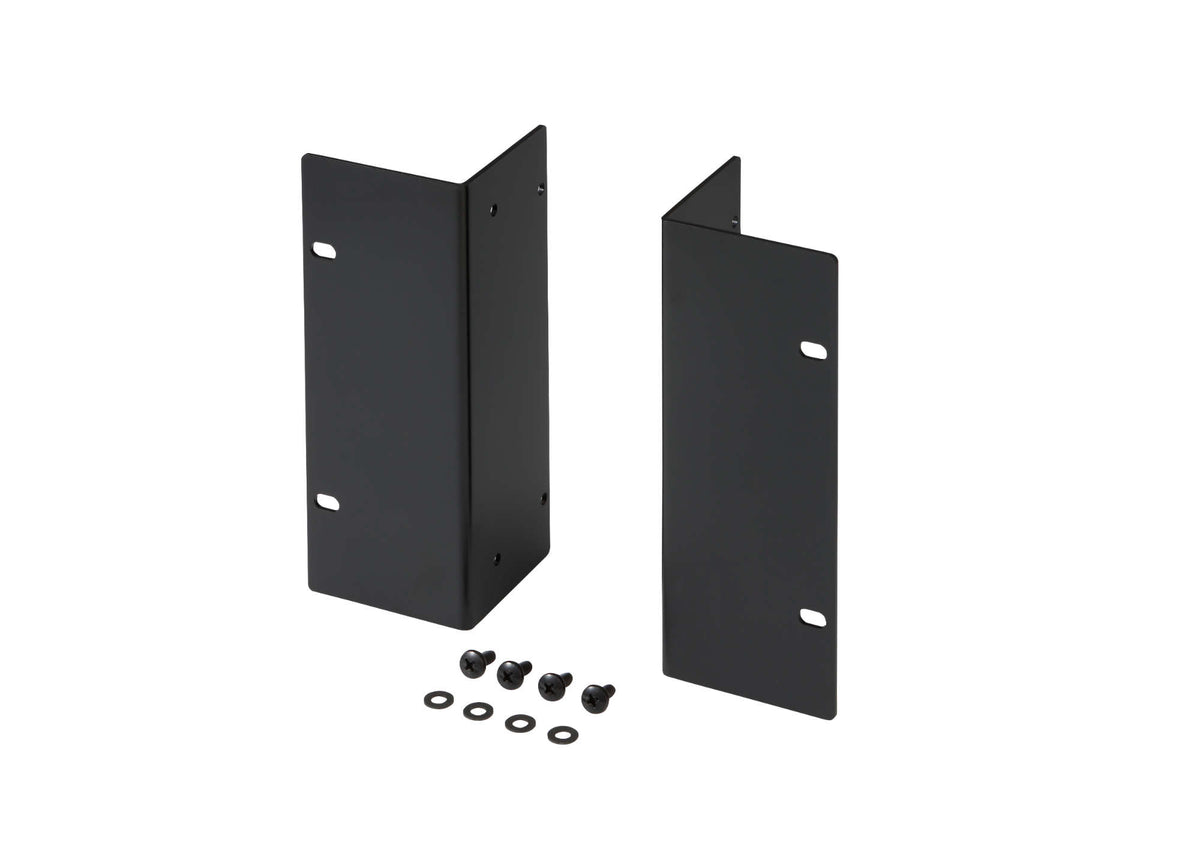

TOA MB-TS920 Rack Mount Bracket for TS-920RC
Product Details
The TOA MB-TS920 rack mounting bracket “is designed for exclusive use with the Central units TS-820, TS-920RC of the TOA Conference Systems”. It takes a 4-unit space in an EIA standard equipment rack.
The word to note is exclusive. This bracket fits the TS-820 and TS-920RC and does not fit the TS-800, TS-900 or TS-910 central units — those take the MB-TS900 instead. The two brackets are the same 65.5 × 177 × 61 mm and the same 680 g, so the part number is the only thing distinguishing them on a shelf.
Rack mounting screws and washers are supplied, four of each. Finish is surface-treated steel plate in black at 30 % gloss, which matches the TS-920RC's own panel.
Features
- Rack mounting bracket for the TS-820 and TS-920RC central units
- 4-unit size, EIA standard equipment rack
- Four rack mounting screws and four washers supplied
- Surface-treated steel plate, black, 30 % gloss
- Does not fit the TS-800, TS-900 or TS-910 — those take the MB-TS900
Specifications
| Technical | |
|---|---|
| Product Type | Rack mounting bracket |
| Compatible Units | TS-820 and TS-920RC central units |
| Rack Size | 4-unit size, EIA standard equipment rack |
| Included Accessories | Rack mounting screws × 4, rack mounting washers × 4 |
| Physical | |
|---|---|
| Dimensions | 65.5 (W) × 177 (H) × 61 (D) mm — 2.58″ × 6.97″ × 2.4″ |
| Weight | 680 g (1.5 lb) |
| Finish | Surface-treated steel plate, black, 30 % gloss, paint |
Specifications subject to change.
