TOA MB-TS900 Rack Mount Bracket for TS-900
Product Details

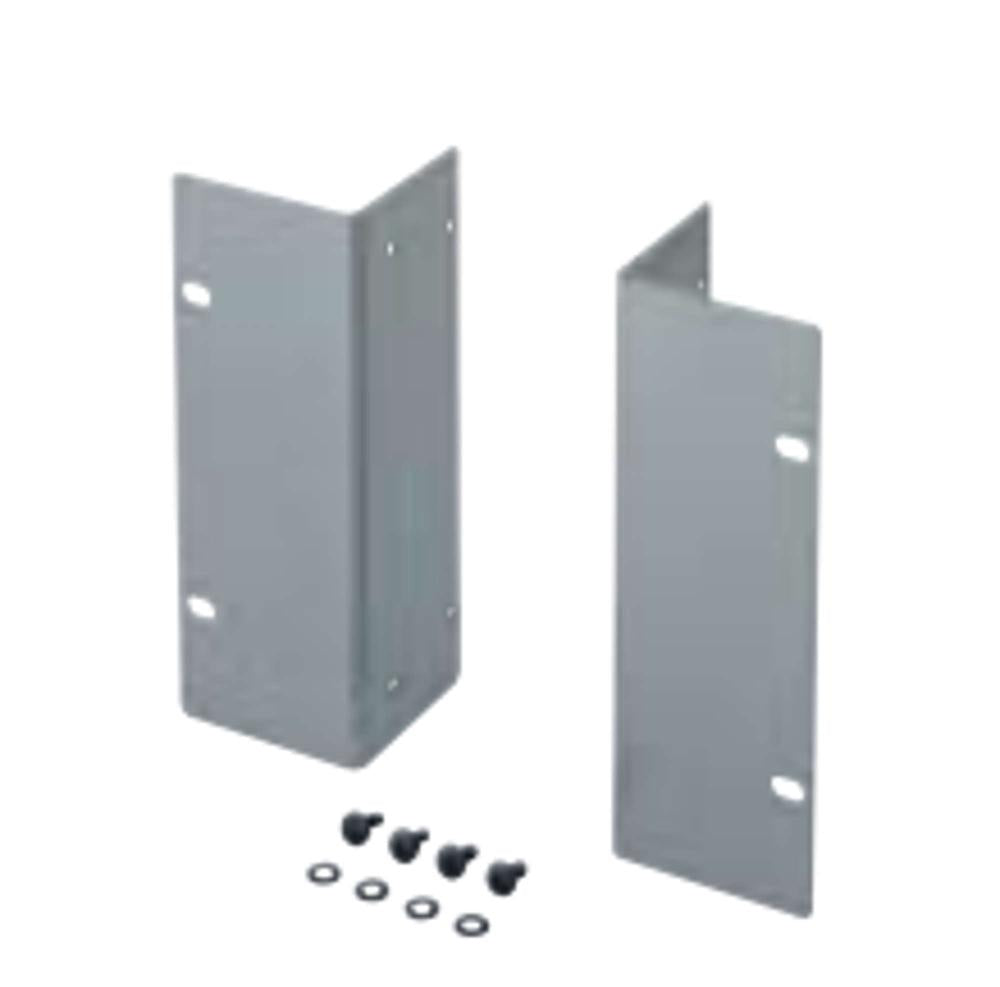

The TOA MB-TS900 rack mounting bracket “is designed for exclusive use with the Central units TS-800 and TS-900 of the TOA Infrared Conference Systems”. TOA also lists it as the rack mounting bracket for the TS-910 central unit. It takes a 4-unit space in an EIA standard equipment rack.
It is the counterpart to the MB-TS920, and the pair is easy to confuse: identical 65.5 × 177 × 61 mm dimensions, identical 680 g, different compatibility. The MB-TS900 serves the TS-800, TS-900 and TS-910; the MB-TS920 serves the TS-820 and TS-920RC. Check the central unit's model before ordering either.
The finish is the visible difference: grey metallic steel plate here against the MB-TS920's black, matching the grey metallic finish of the TS-900 and TS-910 central units.
Features
- Rack mounting bracket for the TS-800 and TS-900 central units
- Also listed by TOA as the rack bracket for the TS-910 central unit
- 4-unit size, EIA standard equipment rack
- Grey metallic steel plate finish, matching the TS-900 and TS-910
- Does not fit the TS-820 or TS-920RC — those take the MB-TS920
Specifications
| Technical | |
|---|---|
| Product Type | Rack mounting bracket |
| Compatible Units | TS-800 and TS-900 central units | listed by TOA for the TS-910 central unit |
| Rack Size | 4-unit size, EIA standard equipment rack |
| Physical | |
|---|---|
| Dimensions | 65.5 (W) × 177 (H) × 61 (D) mm |
| Weight | 680 g (1.5 lb) |
| Finish | Steel plate, grey metallic |
Specifications subject to change.
