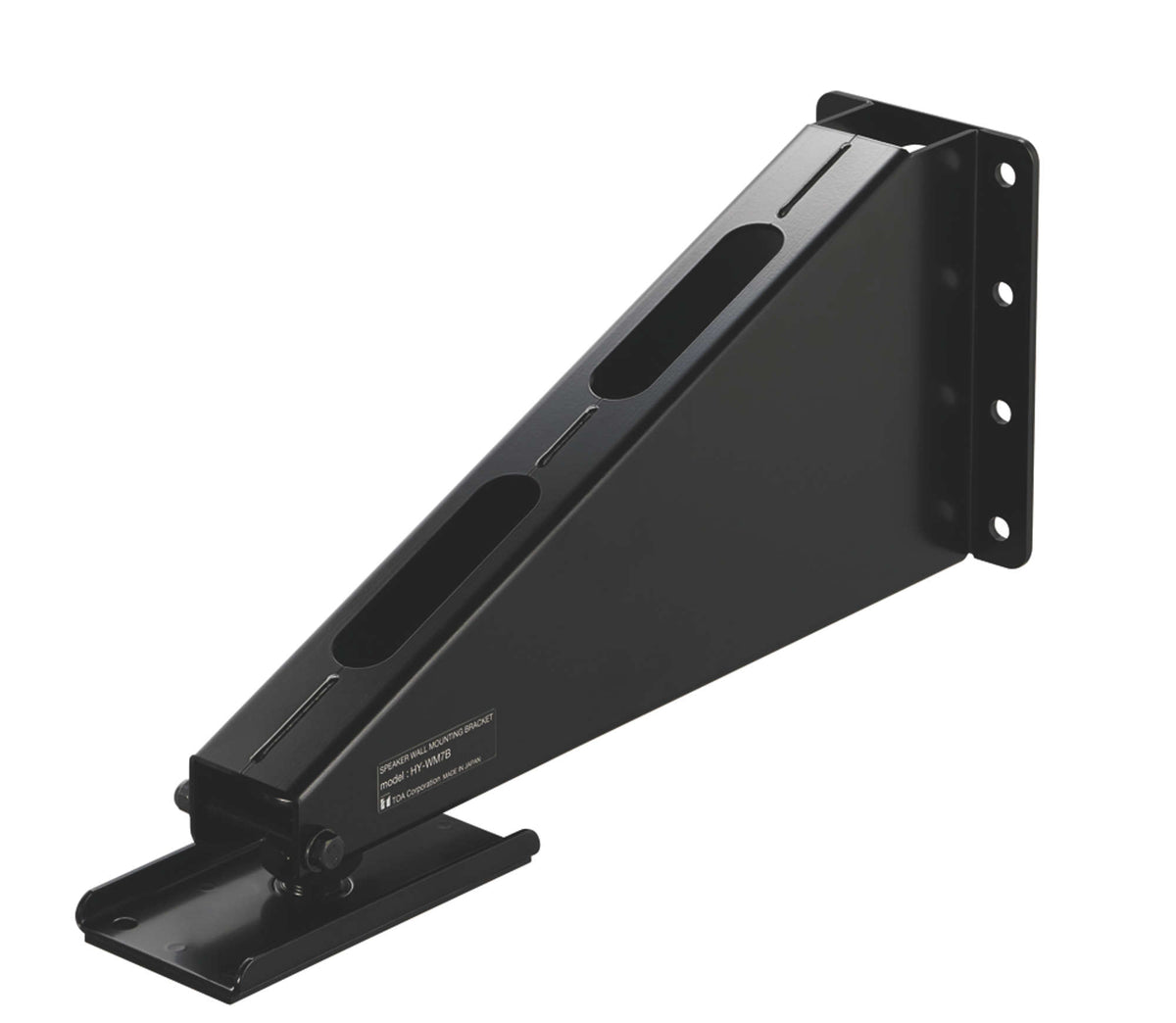

TOA HY-WM7B HX-7 Wall Mount Bracket (Black)
Product Details
The TOA HY-WM7B mounts an HX-7B speaker system to a wall.
It is the wall half of the two-part system: it pairs with the HY-VM7B rigging bracket, which is what actually attaches to the speaker. TOA lists the HY-VM7B as an optional accessory rather than bundling it, so check whether one is already on order. The HX-7 mounting system works in two parts. The HY-VM7 rigging bracket is what attaches to the speaker; it then couples to a wall bracket (HY-WM7) or a ceiling mount (HY-C0801) depending on where the speaker goes. TOA also sells the pairs as kits, which is usually the simpler way to order.
Compatible with the HX-7B.
Features
- Wall mounting bracket for the HX-7B
- Pairs with the HY-VM7B rigging bracket
- HY-VM7B is an optional accessory, not included
- Also sold together as the HY-WM7BSET kit
- Bracket A and B supplied with four mounting bolts
Specifications
| Technical | |
|---|---|
| Product Type | Wall Mounting Bracket |
| Compatible Speakers | HX-7B |
| Installation Environment | Indoor installation |
| Material and Finish | Steel plate, black, semi-gloss paint |
| Included | Bracket A × 1 | bracket B × 1 | speaker mounting bolts × 4 |
| Physical | |
|---|---|
| Weight | 5 kg (11.02 lb) |
| Color | Black |
Specifications subject to change.
