Description

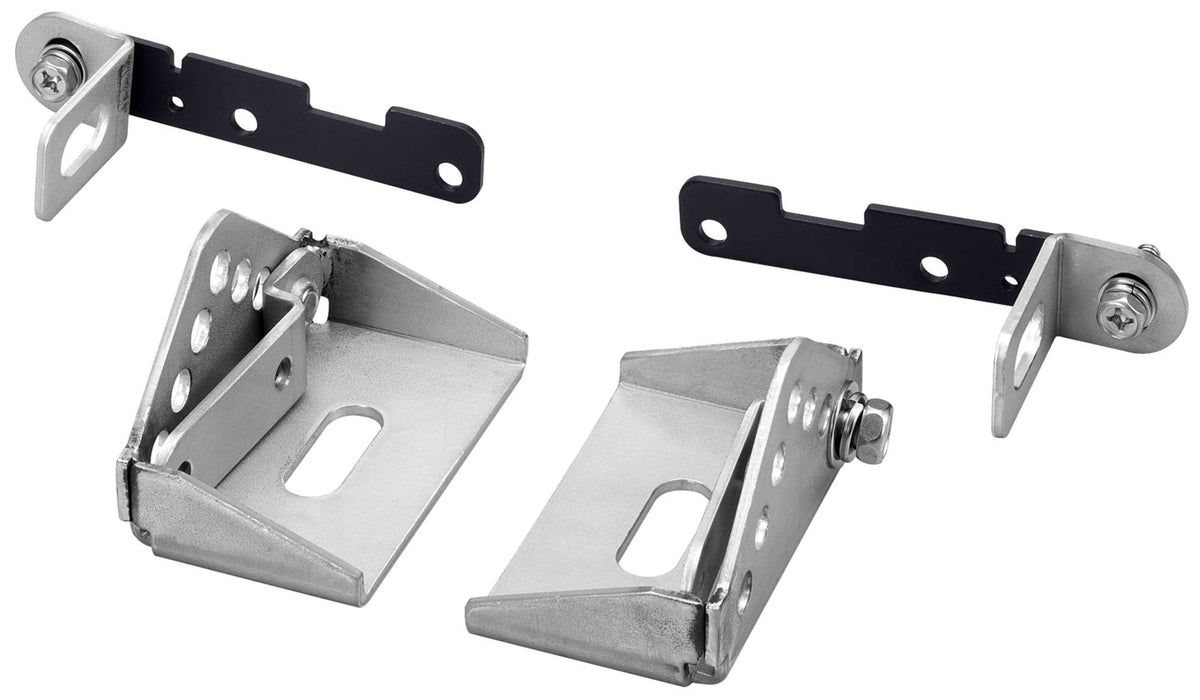

TOA HY-WM2WP HX-5 Wall/Ceiling Bracket Outdoor Stainless Steel
Product Details
The TOA HY-WM2WP mounts an HX-5 series speaker close against a wall or ceiling, rather than standing it off the surface.
The reason to choose it is acoustic, not cosmetic: pulling the cabinet tight to the boundary reduces the phase interference caused by sound reflecting off the surface behind it. What it gives up is aim — there is no tilt adjustment. Where the speaker needs angling down at an audience, order the HY-WM1 version instead.
Stainless steel, for outdoor and under-eave positions. TOA’s own caution applies to every stainless bracket in this range: avoid positions close to the seashore, or inside poorly ventilated swimming pool halls. Stainless steel corrodes in those atmospheres, and a corroded bracket eventually drops the speaker. It pairs with the weather-resistant speakers — HX-5B-WP and HX-5W-WP. The painted steel version for indoor use is a different part. Related parts in the same function: HY-WM2B, HY-WM2W.
Features
- Mounts an HX-5 series speaker close to a wall or ceiling
- Reduces phase interference from reflected sound
- No tilt adjustment — for aiming, use the HY-WM1 version
- Supplied as symmetrical front and rear bracket pairs (A and B)
- M8 rear bracket mounting bolts and washers included
- Stainless steel for outdoor and under-eave use
- Pairs with the weather-resistant HX-5 speakers
Specifications
| Technical | |
|---|---|
| Product Type | Close-Mount Wall/Ceiling Bracket |
| Compatible Speakers | HX-5B-WP and HX-5W-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel (SUS304) |
| Included | Rear bracket mounting bolts (M8) with washers × 4 | front brackets A and B | rear brackets A and B |
| Physical | |
|---|---|
| Weight | 600 g |
| Installation Note | Avoid positions near the seashore or in poorly ventilated indoor swimming facilities; corrosion there can eventually allow the speaker to fall |
Specifications subject to change.
