Description

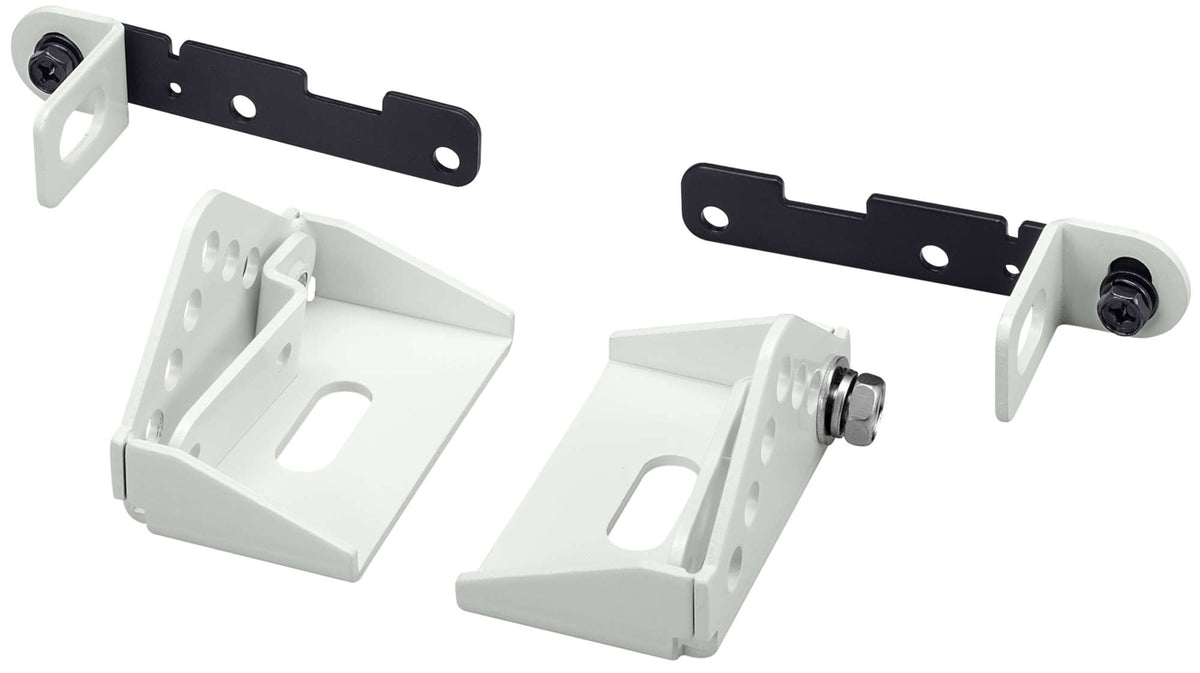

TOA HY-WM2W HX-5 Wall/Ceiling Bracket White
Product Details
The TOA HY-WM2W mounts an HX-5 series speaker close against a wall or ceiling, rather than standing it off the surface.
The reason to choose it is acoustic, not cosmetic: pulling the cabinet tight to the boundary reduces the phase interference caused by sound reflecting off the surface behind it. What it gives up is aim — there is no tilt adjustment. Where the speaker needs angling down at an audience, order the HY-WM1 version instead.
Painted steel, and TOA specifies it for indoor use only. For an outdoor or under-eave position, the stainless steel WP version is the part to order. It pairs with the HX-5W. Ordering across the range will not fit. Related parts in the same function: HY-WM2B, HY-WM2WP.
Features
- Mounts an HX-5 series speaker close to a wall or ceiling
- Reduces phase interference from reflected sound
- No tilt adjustment — for aiming, use the HY-WM1 version
- Supplied as symmetrical front and rear bracket pairs (A and B)
- M8 rear bracket mounting bolts and washers included
- Painted steel, indoor use only
- Pairs with the standard HX-5W
Specifications
| Technical | |
|---|---|
| Product Type | Close-Mount Wall/Ceiling Bracket |
| Compatible Speakers | HX-5W |
| Installation Environment | Indoor installation only |
| Material and Finish | Steel plate, white, semi-gloss paint |
| Included | Rear bracket mounting bolts (M8) with washers × 4 | front brackets A and B | rear brackets A and B |
| Physical | |
|---|---|
| Weight | 600 g |
| Colour | White |
| Installation Note | Indoor use only — not for outdoor or under-eave positions |
Specifications subject to change.
