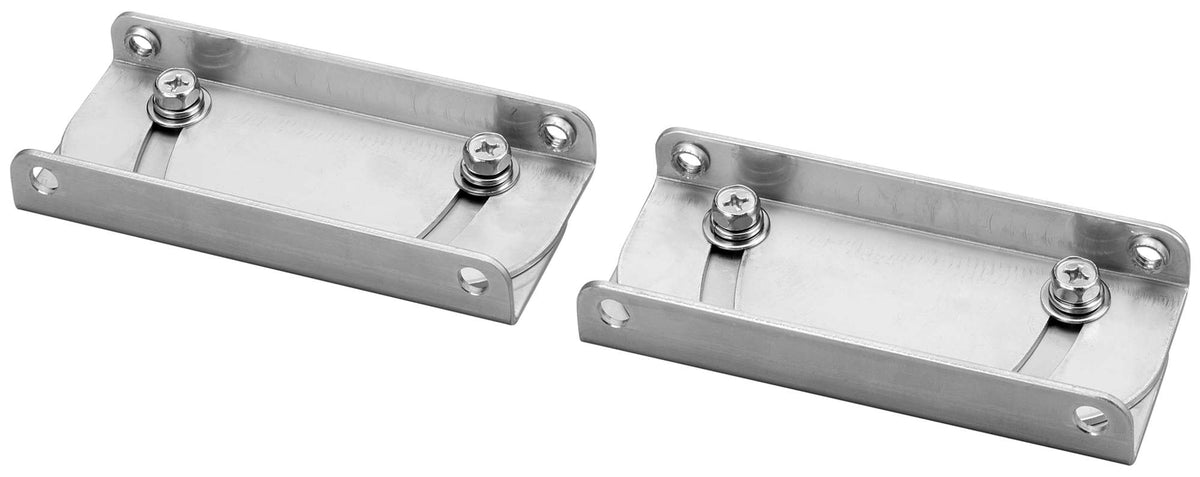

TOA HY-WM1WP HX-5 Wall/Ceiling Bracket Outdoor Stainless Steel
Product Details
The TOA HY-WM1WP mounts an HX-5 series speaker to a wall or a ceiling and lets it be aimed: tilted down up to 20° from horizontal on a wall, or up to 20° from vertical on a ceiling.
This is the general-purpose HX-5 mount and the one most installations use. If the speaker needs to sit hard against the surface rather than stand off it, the HY-WM2 version is the one to order — it trades the tilt adjustment for a close-coupled fit that reduces phase interference from reflections.
Stainless steel, for outdoor and under-eave positions. TOA’s own caution applies to every stainless bracket in this range: avoid positions close to the seashore, or inside poorly ventilated swimming pool halls. Stainless steel corrodes in those atmospheres, and a corroded bracket eventually drops the speaker. It pairs with the weather-resistant speakers — HX-5B-WP and HX-5W-WP. The painted steel version for indoor use is a different part. Related parts in the same function: HY-WM1B, HY-WM1W.
Features
- Mounts an HX-5 series speaker to a wall or ceiling
- Tilts down up to 20° from horizontal on a wall
- Tilts up to 20° from vertical on a ceiling
- Supplied as a pair of speaker mounting brackets
- M8 mounting bolts and washers included
- Stainless steel for outdoor and under-eave use
- Pairs with the weather-resistant HX-5 speakers
Specifications
| Technical | |
|---|---|
| Product Type | Wall/Ceiling Mounting Bracket |
| Compatible Speakers | HX-5B-WP and HX-5W-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel (SUS304) |
| Included | Speaker mounting bolts (M8) with washers × 4 | speaker mounting brackets × 2 |
| Physical | |
|---|---|
| Dimensions | 62 (W) × 142 (H) × 22 (D) mm |
| Weight | 750 g |
| Installation Note | Avoid positions near the seashore or in poorly ventilated indoor swimming facilities; corrosion there can eventually allow the speaker to fall |
Specifications subject to change.
