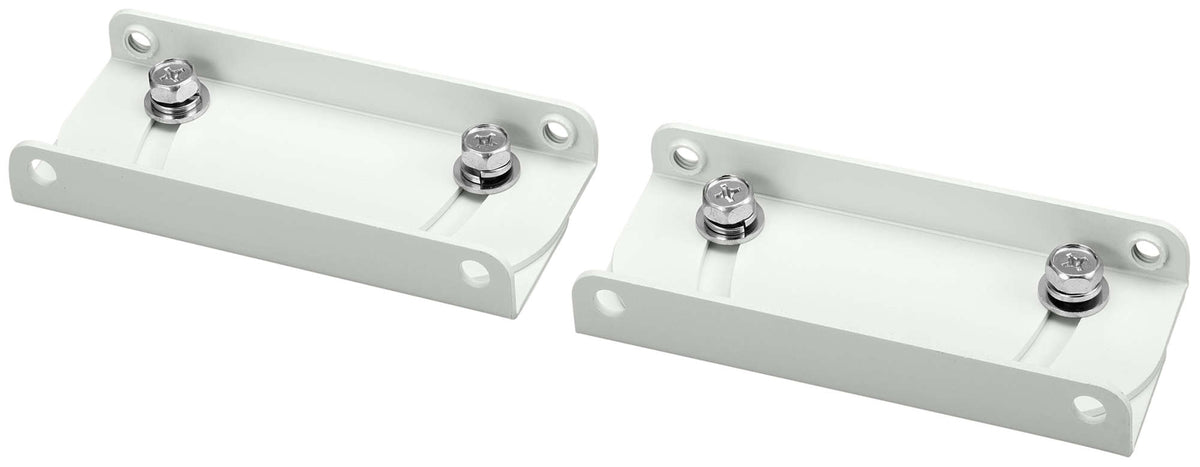

TOA HY-WM1W HX-5 Wall/Ceiling Bracket White
Product Details
The TOA HY-WM1W mounts an HX-5 series speaker to a wall or a ceiling and lets it be aimed: tilted down up to 20° from horizontal on a wall, or up to 20° from vertical on a ceiling.
This is the general-purpose HX-5 mount and the one most installations use. If the speaker needs to sit hard against the surface rather than stand off it, the HY-WM2 version is the one to order — it trades the tilt adjustment for a close-coupled fit that reduces phase interference from reflections.
Painted steel, and TOA specifies it for indoor use only. For an outdoor or under-eave position, the stainless steel WP version is the part to order. It pairs with the HX-5W. Ordering across the range will not fit. Related parts in the same function: HY-WM1B, HY-WM1WP.
Features
- Mounts an HX-5 series speaker to a wall or ceiling
- Tilts down up to 20° from horizontal on a wall
- Tilts up to 20° from vertical on a ceiling
- Supplied as a pair of speaker mounting brackets
- M8 mounting bolts and washers included
- Painted steel, indoor use only
- Pairs with the standard HX-5W
Specifications
| Technical | |
|---|---|
| Product Type | Wall/Ceiling Mounting Bracket |
| Compatible Speakers | HX-5W |
| Installation Environment | Indoor installation only |
| Material and Finish | Steel plate, white, semi-gloss paint |
| Included | Speaker mounting bolts (M8) with washers × 4 | speaker mounting brackets × 2 |
| Physical | |
|---|---|
| Dimensions | 62 (W) × 142 (H) × 22 (D) mm |
| Weight | 750 g |
| Color | White |
| Installation Note | Indoor use only — not for outdoor or under-eave positions |
Specifications subject to change.
