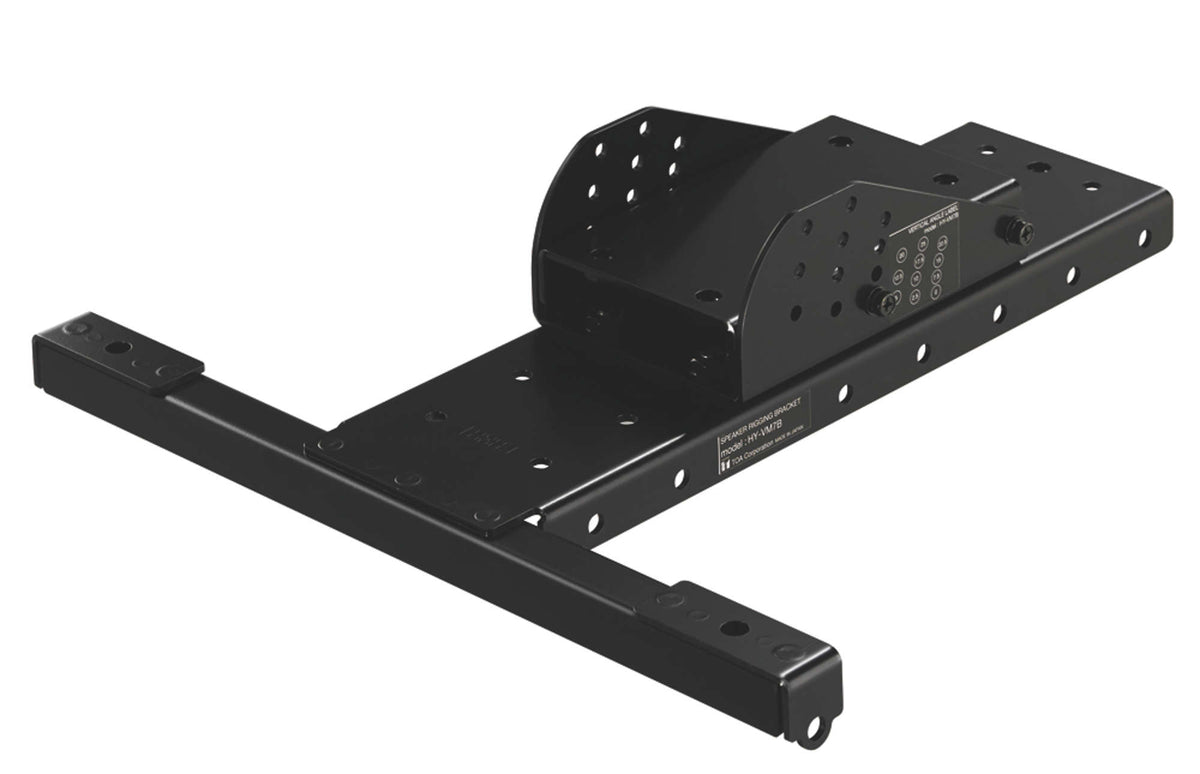

TOA HY-VM7B Speaker Rigging Bracket for HX-7
Product Details
The TOA HY-VM7B is the rigging bracket that attaches to an HX-7B and carries it.
On its own it will mount the speaker directly to a ceiling or a beam, or suspend it from eyebolts. Combined with a wall bracket (HY-WM7B) or a ceiling mount (HY-C0801) it handles wall and ceiling installations. The HX-7 mounting system works in two parts. The HY-VM7 rigging bracket is what attaches to the speaker; it then couples to a wall bracket (HY-WM7) or a ceiling mount (HY-C0801) depending on where the speaker goes. TOA also sells the pairs as kits, which is usually the simpler way to order.
Compatible with the HX-7B.
Features
- Attaches directly to the HX-7B
- Mounts to a ceiling or beam on its own
- Suspends from eyebolts
- Combines with HY-WM7B for wall mounting or HY-C0801 for ceiling mounting
- Also sold in kit form as HY-WM7BSET and HY-CM7BSET
Specifications
| Technical | |
|---|---|
| Product Type | Speaker Rigging Bracket |
| Compatible Speakers | HX-7B |
| Installation Environment | Indoor installation |
| Material and Finish | Steel plate, black, semi-gloss paint |
| Included | T-bracket × 1 | angle bracket × 1 | mounting base × 1 | speaker mounting bolt set | bracket mounting bolt set |
| Physical | |
|---|---|
| Weight | 4.8 kg (10.58 lb) |
| Color | Black |
Specifications subject to change.
