TOA HY-ST1 HX-5 Stand Adapter Black
Product Details

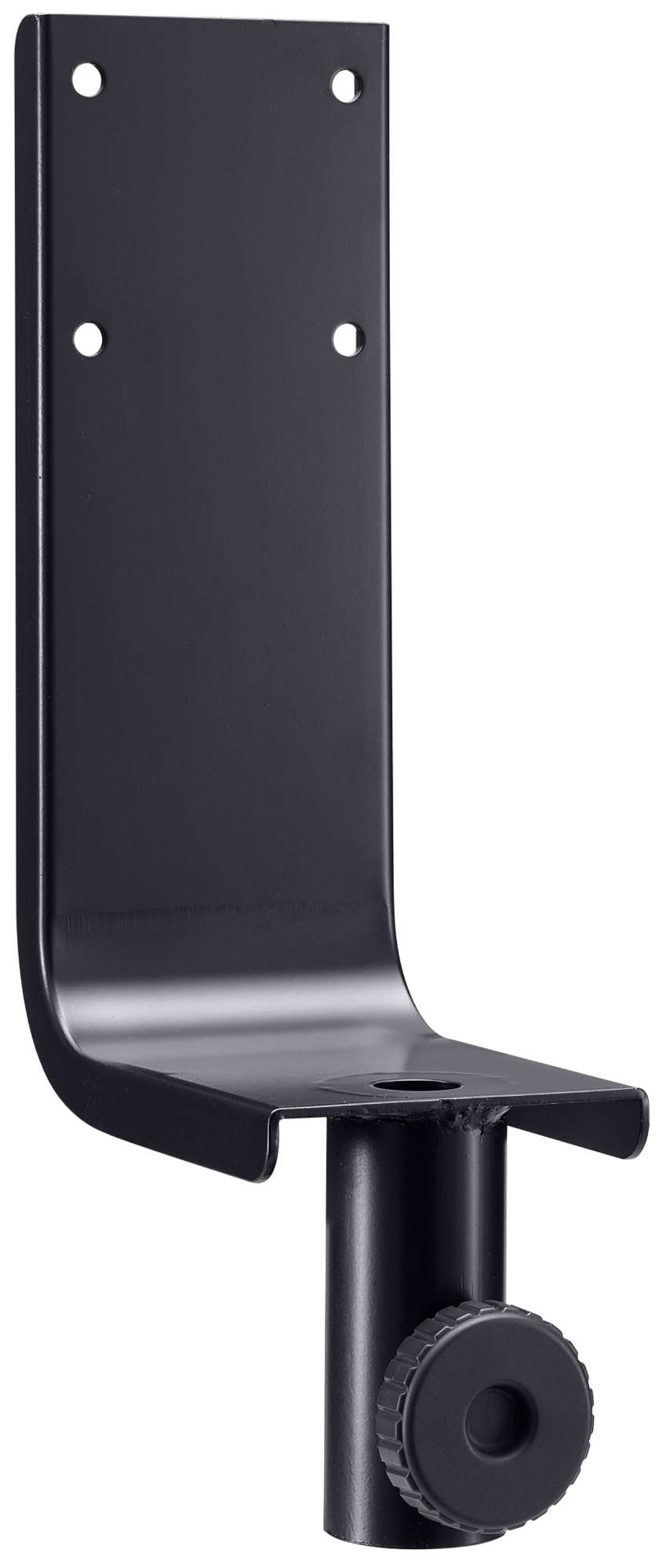

The TOA HY-ST1 mounts an HX-5 series speaker on a speaker stand — the ST-34B, or any generic stand with a Ø35 mm pipe.
Note that this is the HX-5 adapter, not the HX-7 one. The equivalent part for the larger HX-7 cabinets is the HY-ST7, and the two are not interchangeable.
Compatible with the HX-5B | HX-5W.
Features
- Mounts an HX-5 series speaker on a speaker stand
- Fits the ST-34B or any generic stand with a Ø35 mm pipe
- For the HX-5B and HX-5W
- Not for the HX-7 — that takes the HY-ST7
- M8 mounting bolts and washers included
Specifications
| Technical | |
|---|---|
| Product Type | Speaker Stand Adapter |
| Compatible Speakers | HX-5B | HX-5W |
| Installation Environment | Indoor installation |
| Material and Finish | Steel plate, black, semi-gloss paint |
| Included | Speaker rear bracket mounting bolts (M8) with washers × 4 |
| Physical | |
|---|---|
| Dimensions | 96 (W) × 351 (H) × 148 (D) mm, excluding projection |
| Weight | 1.2 kg (2.65 lb) |
| Color | Black |
Specifications subject to change.
