TOA HY-PF7B Rigging Frame for FB-150 and HX-7 Black
Product Details

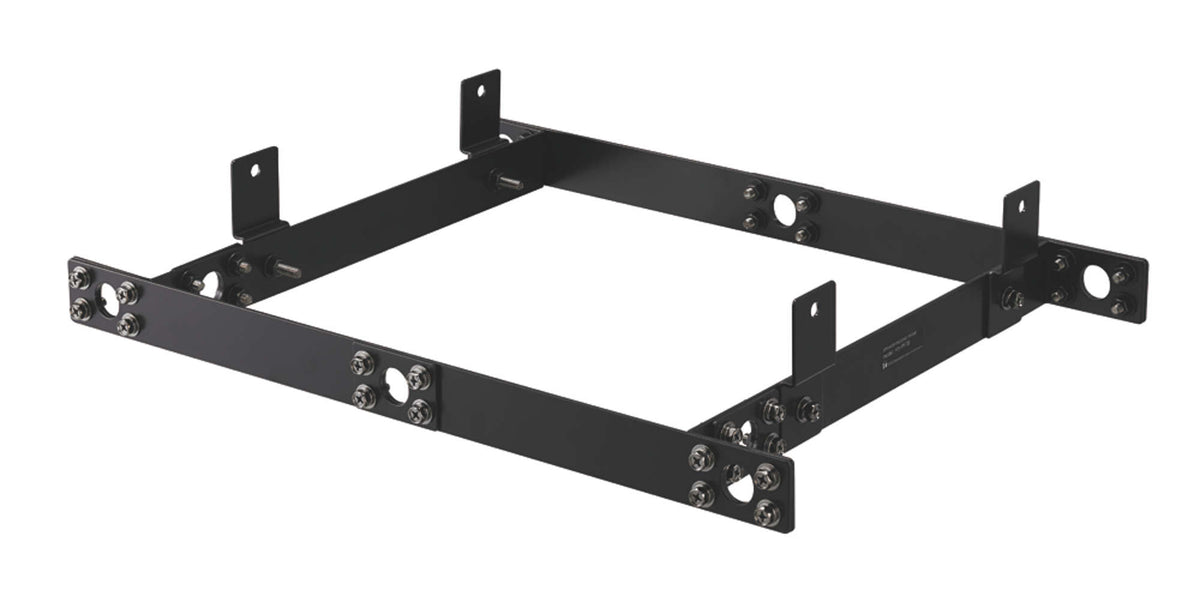

The TOA HY-PF7B is a rigging frame for suspending an HX-7B from a ceiling, and it will also fly an FB-150B subwoofer using the mounting brackets supplied with it.
That is the reason to choose it over a plain suspension bracket: a full-range HX-7 and its subwoofer hang as one rigged assembly from a single frame, rather than as two separate hangs that then have to be aligned.
Compatible with the HX-7B.
Features
- Suspends the HX-7B from a ceiling
- Also flies an FB-150B subwoofer with the supplied brackets
- Speaker and subwoofer hang as one assembly
- Subwoofer mounting brackets included
Specifications
| Technical | |
|---|---|
| Product Type | Rigging Frame |
| Compatible Speakers | HX-7B |
| Installation Environment | Indoor installation |
| Material and Finish | Steel plate, black, semi-gloss paint |
| Included | Subwoofer mounting bracket set × 1 | bracket mounting bolt set × 1 |
| Physical | |
|---|---|
| Dimensions | 645 (W) × 50 (H) × 472 (D) mm — 25.39″ × 1.97″ × 18.58″, excluding projection |
| Weight | 4 kg (8.82 lb) |
| Color | Black |
Specifications subject to change.
