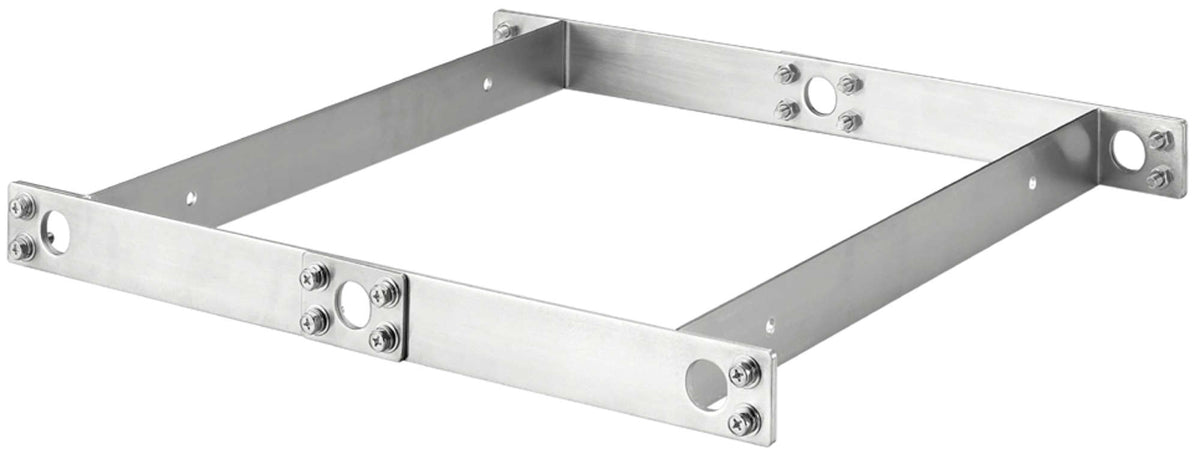

TOA HY-PF1WP Rigging Frame for FB-120 and HX-5 Weatherproof
Product Details
The TOA HY-PF1WP is a rigging frame for suspending an HX-5 series speaker from a ceiling, and it will also fly an FB-120 series subwoofer using the mounting brackets supplied with it.
That second capability is the reason this part exists rather than a simpler ceiling bracket: it lets a full-range HX-5 and its subwoofer hang as one rigged assembly from a single frame. It ships with the subwoofer brackets, bolts, nuts and washers needed for that.
Stainless steel, for outdoor and under-eave positions. TOA’s own caution applies to every stainless bracket in this range: avoid positions close to the seashore, or inside poorly ventilated swimming pool halls. Stainless steel corrodes in those atmospheres, and a corroded bracket eventually drops the speaker. It pairs with the weather-resistant speakers — HX-5B-WP and HX-5W-WP. The painted steel version for indoor use is a different part. Related parts in the same function: HY-PF1B, HY-PF1W.
Features
- Suspends an HX-5 series speaker from a ceiling
- Also flies an FB-120 series subwoofer with the supplied brackets
- Lets speaker and subwoofer hang as one assembly
- Subwoofer mounting brackets × 4 included
- Full set of M8 bolts, nuts and washers included
- Stainless steel for outdoor and under-eave use
- Pairs with the weather-resistant HX-5 speakers
Specifications
| Technical | |
|---|---|
| Product Type | Rigging Frame |
| Compatible Speakers | HX-5B-WP and HX-5W-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel |
| Included | Subwoofer mounting brackets × 4 | M8 bracket fixing bolts with washers × 4 | M8 subwoofer mounting bolts with washers × 4 | M8 bracket fixing nuts × 4 | M8 bracket fixing washers × 4 |
| Physical | |
|---|---|
| Dimensions | 550 (W) × 50 (H) × 512 (D) mm |
| Weight | 3.6 kg |
| Installation Note | Avoid positions near the seashore or in poorly ventilated indoor swimming facilities; corrosion there can eventually allow the speaker to fall |
Specifications subject to change.
