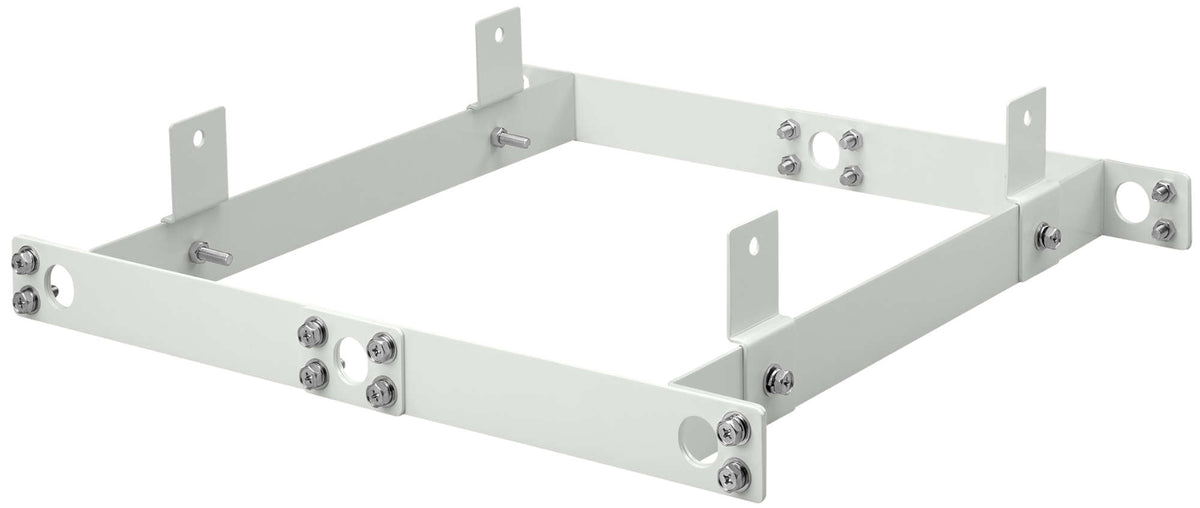

TOA HY-PF1W Rigging Frame for FB-120 and HX-5 White
Product Details
The TOA HY-PF1W is a rigging frame for suspending an HX-5 series speaker from a ceiling, and it will also fly an FB-120 series subwoofer using the mounting brackets supplied with it.
That second capability is the reason this part exists rather than a simpler ceiling bracket: it lets a full-range HX-5 and its subwoofer hang as one rigged assembly from a single frame. It ships with the subwoofer brackets, bolts, nuts and washers needed for that.
Painted steel, and TOA specifies it for indoor use only. For an outdoor or under-eave position, the stainless steel WP version is the part to order. It pairs with the HX-5W. Ordering across the range will not fit. Related parts in the same function: HY-PF1B, HY-PF1WP.
Features
- Suspends an HX-5 series speaker from a ceiling
- Also flies an FB-120 series subwoofer with the supplied brackets
- Lets speaker and subwoofer hang as one assembly
- Subwoofer mounting brackets × 4 included
- Full set of M8 bolts, nuts and washers included
- Painted steel, indoor use only
- Pairs with the standard HX-5W
Specifications
| Technical | |
|---|---|
| Product Type | Rigging Frame |
| Compatible Speakers | HX-5W |
| Installation Environment | Indoor installation only |
| Material and Finish | Steel plate, white, semi-gloss paint |
| Included | Subwoofer mounting brackets × 4 | M8 bracket fixing bolts with washers × 4 | M8 subwoofer mounting bolts with washers × 4 | M8 bracket fixing nuts × 4 | M8 bracket fixing washers × 4 |
| Physical | |
|---|---|
| Dimensions | 550 (W) × 50 (H) × 512 (D) mm |
| Weight | 3.6 kg |
| Color | White |
| Installation Note | Indoor use only — not for outdoor or under-eave positions |
Specifications subject to change.
