Description
TOA HY-MT7 QAM Bracket for Mounting MT-200 To HX-7 Loudspeakers
Product Details

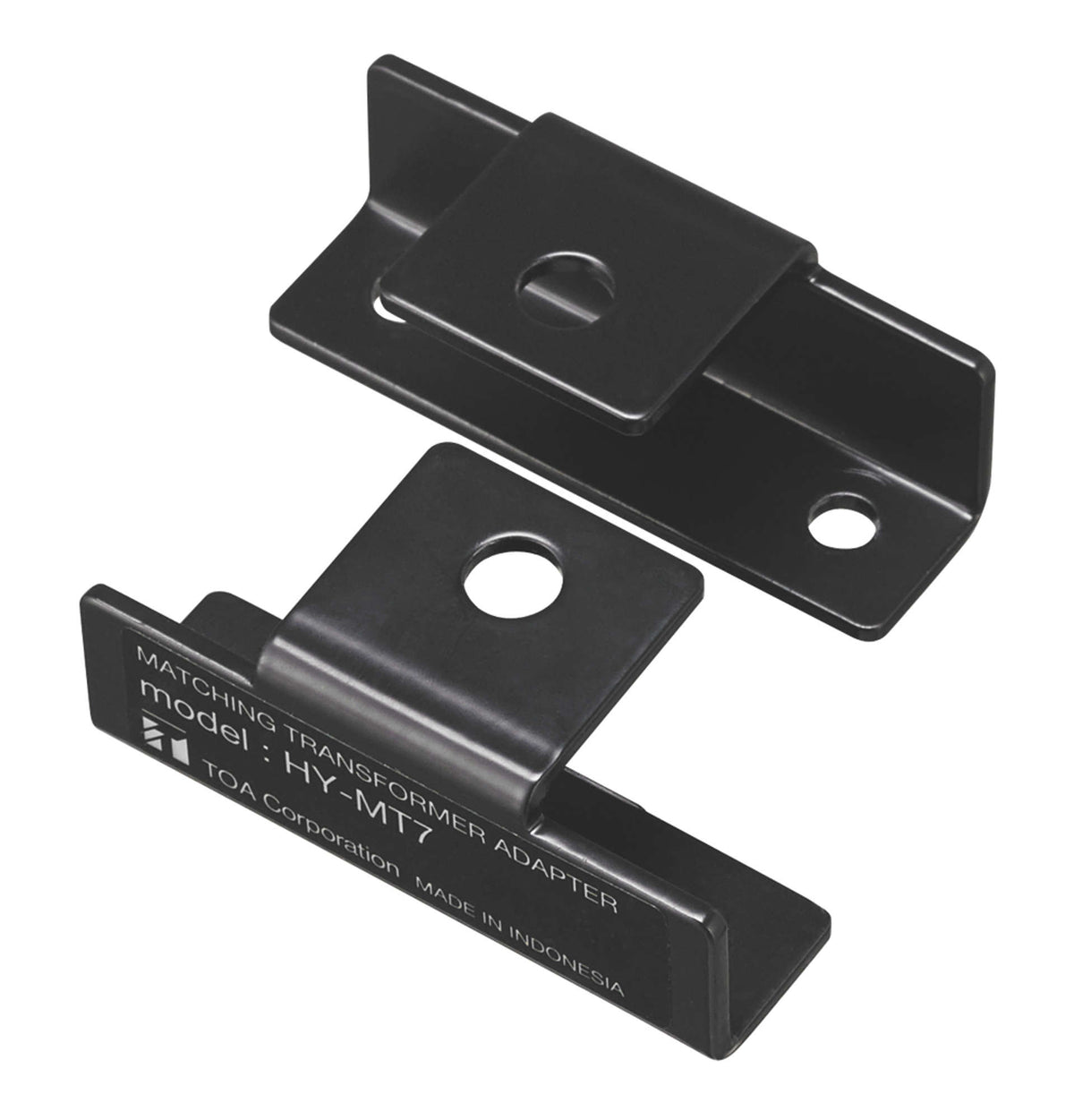

The TOA HY-MT7 mounts an MT-200 matching transformer to an HX-7 series speaker.
It exists because the HX-7 is an 8-ohm speaker with no internal transformer. Putting one on a 70 V or 100 V distributed line takes the MT-200, and the MT-200 has to be fixed to something — this bracket. Order all three together, or the speaker will not go on the line.
Compatible with the HX-7B | HX-7W | HX-7B-WP | HX-7W-WP.
Features
- Mounts the MT-200 matching transformer to an HX-7 speaker
- Fits all four HX-7 models, indoor and weather-resistant
- Stainless steel construction
- Needed to run an HX-7 on a 70 V or 100 V line
- Order alongside the MT-200 itself
Specifications
| Technical | |
|---|---|
| Product Type | Matching Transformer Adapter |
| Compatible Speakers | HX-7B | HX-7W | HX-7B-WP | HX-7W-WP |
| Installation Environment | Suits both indoor and weather-resistant HX-7 models |
| Material and Finish | Stainless steel, black, semi-gloss paint |
| Included | Speaker mounting bolts × 4 | matching transformer mounting nuts × 2 | matching transformer mounting washers × 2 |
| Physical | |
|---|---|
| Dimensions | 30 (W) × 70 (H) × 28 (D) mm — 1.18″ × 2.76″ × 1.1″ |
| Weight | 140 g (0.31 lb) |
| Color | Black |
Specifications subject to change.
