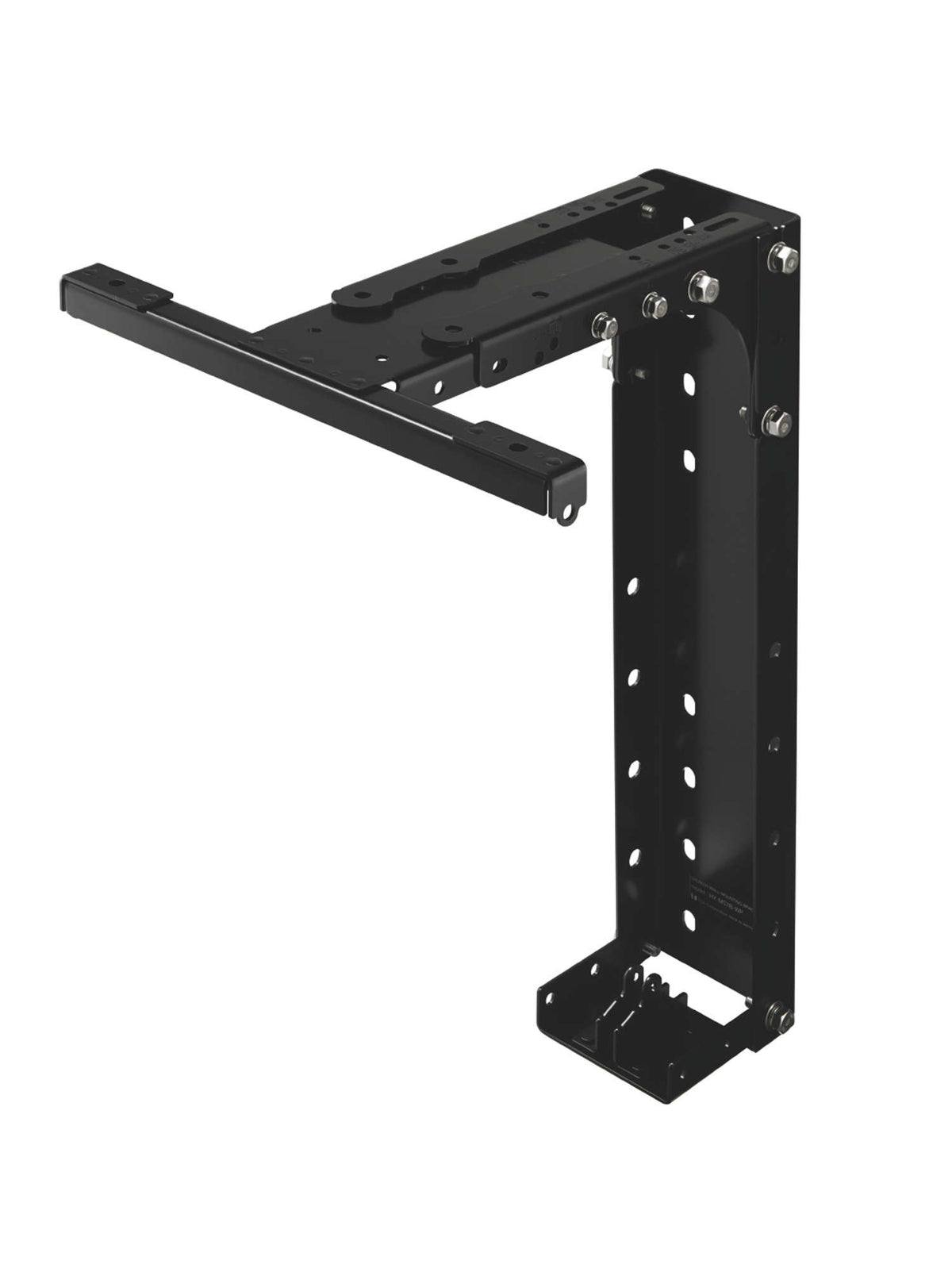

TOA HY-MS7B-WP Speaker Wall Mounting Bracket Assembly for HX-7
Product Details
The TOA HY-MS7B-WP is the wall mounting assembly for an HX-7B-WP, built for outdoor and under-eave installation.
It is a complete assembly rather than a single bracket — T-bracket, left and right mode brackets, left and right L-brackets, base bracket and bottom bracket. Usefully, it also carries provision for mounting the MT-200 matching transformer directly to it, which matters because the HX-7 needs that transformer to sit on a 70 V or 100 V line. The weather-resistant HX-7 models use a different mounting family, not a stainless version of the indoor one. HY-TM7 suspends the speaker directly from a ceiling or beam; HY-MS7 is the wall assembly. Indoor HY-VM7 and HY-WM7 parts do not carry over.
Compatible with the HX-7B-WP.
Features
- Wall mounting assembly for the HX-7B-WP
- Outdoor and under-eave installation
- Built-in provision for mounting the MT-200 matching transformer
- Seven-piece stainless steel assembly
- Transformer mounting nuts included
Specifications
| Technical | |
|---|---|
| Product Type | Wall Mounting Bracket Assembly, Outdoor |
| Compatible Speakers | HX-7B-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel, black, semi-gloss paint |
| Included | T-bracket × 1 | mode brackets L and R × 1 each | L-brackets L and R × 1 each | base bracket × 1 | bottom bracket × 1 | speaker mounting bolt set | bracket mounting bolt set | matching transformer mounting nuts × 2 |
| Physical | |
|---|---|
| Weight | 7 kg (15.43 lb) |
| Color | Black |
Specifications subject to change.
