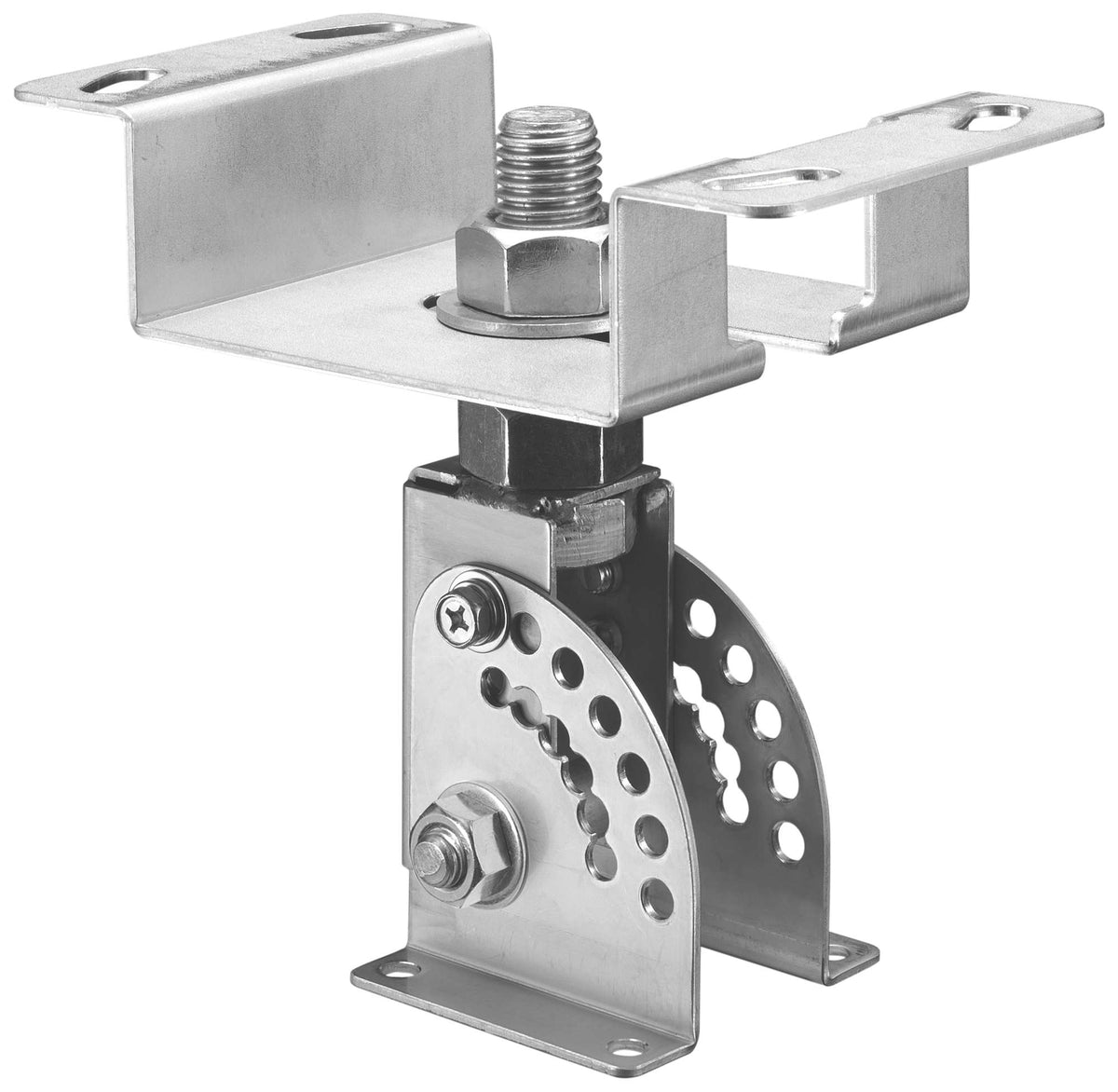

TOA HY-CW1WP HX-5 Ceiling Bracket Outdoor Stainless Steel
Product Details
The TOA HY-CW1WP suspends an HX-5 series speaker from a ceiling and gives it a wide aiming range: 360° of horizontal rotation, and tilt to 82.5° when the speaker hangs horizontally.
Hung vertically, the tilt limit depends on the coverage mode the speaker is set to — 67.5° in 60° mode, 75° in the 15°, 30° and 45° modes — because the array physically articulates as the pattern changes. Worth checking against the aiming angle before specifying it.
Stainless steel, for outdoor and under-eave positions. TOA’s own caution applies to every stainless bracket in this range: avoid positions close to the seashore, or inside poorly ventilated swimming pool halls. Stainless steel corrodes in those atmospheres, and a corroded bracket eventually drops the speaker. It pairs with the weather-resistant speakers — HX-5B-WP and HX-5W-WP. The painted steel version for indoor use is a different part. Related parts in the same function: HY-CW1B, HY-CW1W.
Features
- Suspends an HX-5 series speaker from a ceiling
- 360° horizontal rotation
- Tilts to 82.5° when the speaker is suspended horizontally
- Tilts to 67.5° (60° mode) or 75° (15°, 30°, 45° modes) when suspended vertically
- M8 speaker rear bracket mounting bolts and washers included
- Stainless steel for outdoor and under-eave use
- Pairs with the weather-resistant HX-5 speakers
Specifications
| Technical | |
|---|---|
| Product Type | Ceiling Mounting Bracket |
| Compatible Speakers | HX-5B-WP and HX-5W-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel |
| Included | Speaker rear bracket mounting bolts (M8) with washers × 4 |
| Physical | |
|---|---|
| Dimensions | 120 (W) × 200 (H) × 220 (D) mm |
| Weight | 2 kg |
| Installation Note | Avoid positions near the seashore or in poorly ventilated indoor swimming facilities; corrosion there can eventually allow the speaker to fall |
Specifications subject to change.
