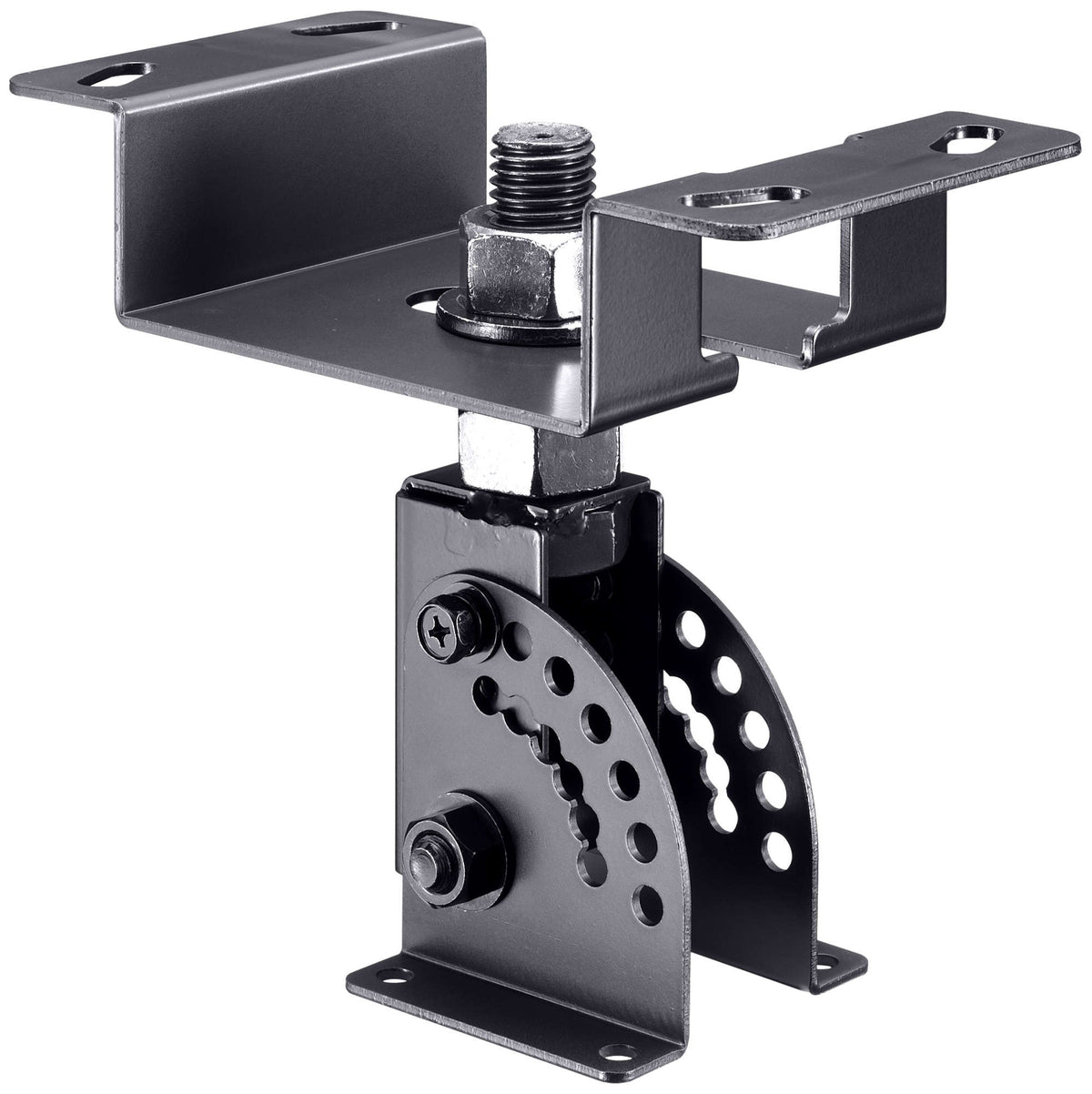

TOA HY-CW1B HX-5 Ceiling Bracket Black
Product Details
The TOA HY-CW1B suspends an HX-5 series speaker from a ceiling and gives it a wide aiming range: 360° of horizontal rotation, and tilt to 82.5° when the speaker hangs horizontally.
Hung vertically, the tilt limit depends on the coverage mode the speaker is set to — 67.5° in 60° mode, 75° in the 15°, 30° and 45° modes — because the array physically articulates as the pattern changes. Worth checking against the aiming angle before specifying it.
Painted steel, and TOA specifies it for indoor use only. For an outdoor or under-eave position, the stainless steel WP version is the part to order. It pairs with the HX-5B. Ordering across the range will not fit. Related parts in the same function: HY-CW1W, HY-CW1WP.
Features
- Suspends an HX-5 series speaker from a ceiling
- 360° horizontal rotation
- Tilts to 82.5° when the speaker is suspended horizontally
- Tilts to 67.5° (60° mode) or 75° (15°, 30°, 45° modes) when suspended vertically
- M8 speaker rear bracket mounting bolts and washers included
- Painted steel, indoor use only
- Pairs with the standard HX-5B
Specifications
| Technical | |
|---|---|
| Product Type | Ceiling Mounting Bracket |
| Compatible Speakers | HX-5B |
| Installation Environment | Indoor installation only |
| Material and Finish | Steel plate, black, semi-gloss paint |
| Included | Speaker rear bracket mounting bolts (M8) with washers × 4 |
| Physical | |
|---|---|
| Dimensions | 120 (W) × 200 (H) × 220 (D) mm |
| Weight | 2 kg |
| Color | Black |
| Installation Note | Indoor use only — not for outdoor or under-eave positions |
Specifications subject to change.
