TOA HY-CN7W-WP HX-7 Joining Bracket Outdoor Stainless Steel White
Product Details

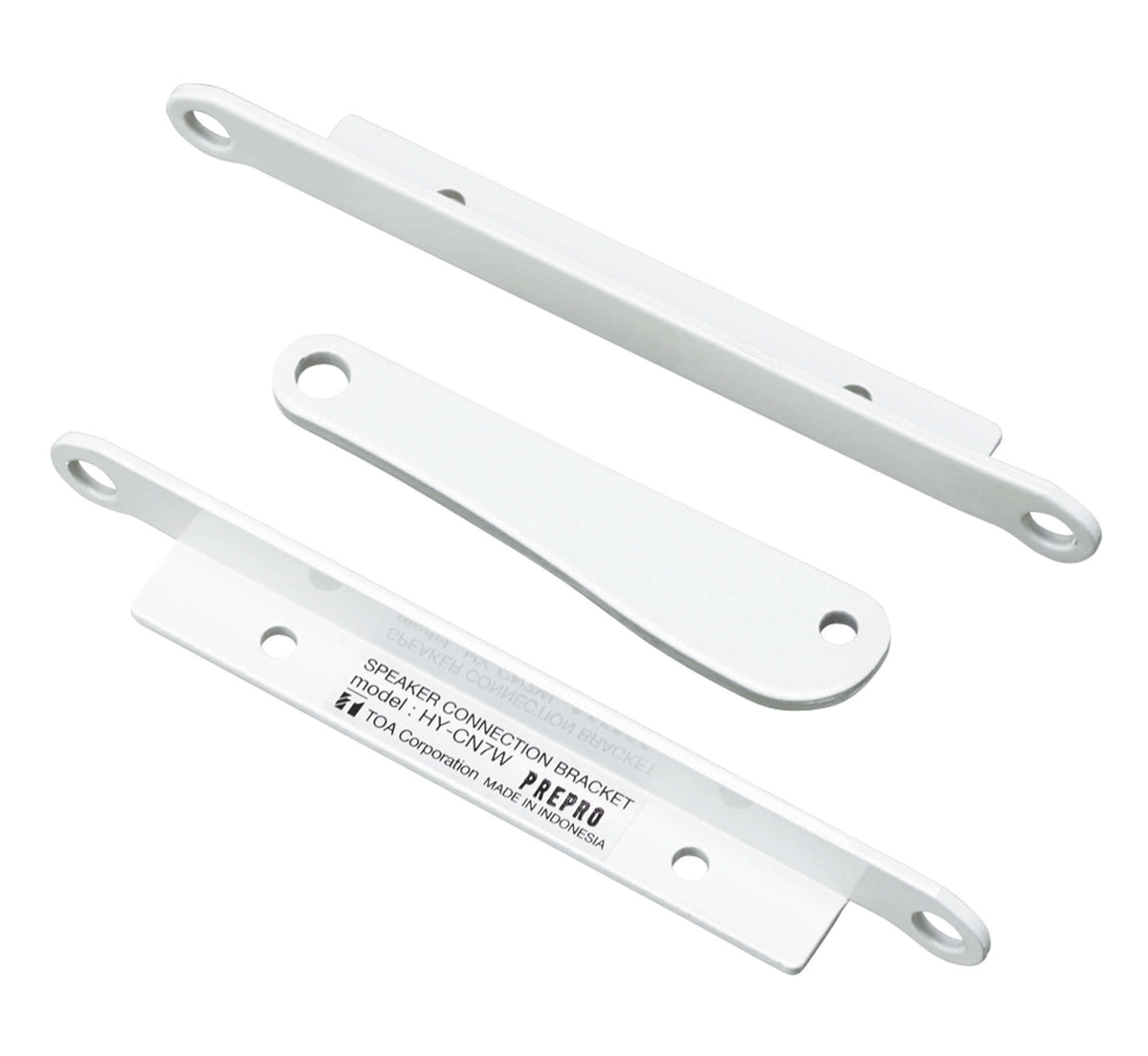

The TOA HY-CN7W-WP joins two HX-7W-WP speaker systems into a single taller array.
A longer array controls its pattern further down the frequency range, which is what buys clearer, longer-throw sound in reverberant or noisy spaces. It is a connection kit, not a mount: the joined pair still needs its own suspension or wall assembly. As with every stainless bracket in the TOA range, avoid positions close to the seashore or inside poorly ventilated swimming pool halls, where corrosion can eventually let the speaker fall.
Compatible with the HX-7W-WP.
Features
- Joins two HX-7W-WP speakers into one array
- Improves directivity control at lower frequencies
- Stainless steel for outdoor use
- Not a mount — the joined pair still needs its own bracket
- Full spacer, ring, nut and bolt set included
Specifications
| Technical | |
|---|---|
| Product Type | Speaker Connection Bracket, Outdoor |
| Compatible Speakers | HX-7W-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel, white, semi-gloss paint |
| Included | Side angles × 2 | rear angle bar × 1 | golden spacers × 2 | black spacer × 1 | rubber rings × 2 | flange nuts × 2 | rear angle bar mounting bolts × 2 | side angle mounting bolts × 2 |
| Physical | |
|---|---|
| Weight | 300 g (0.66 lb) |
| Color | White |
Specifications subject to change.
