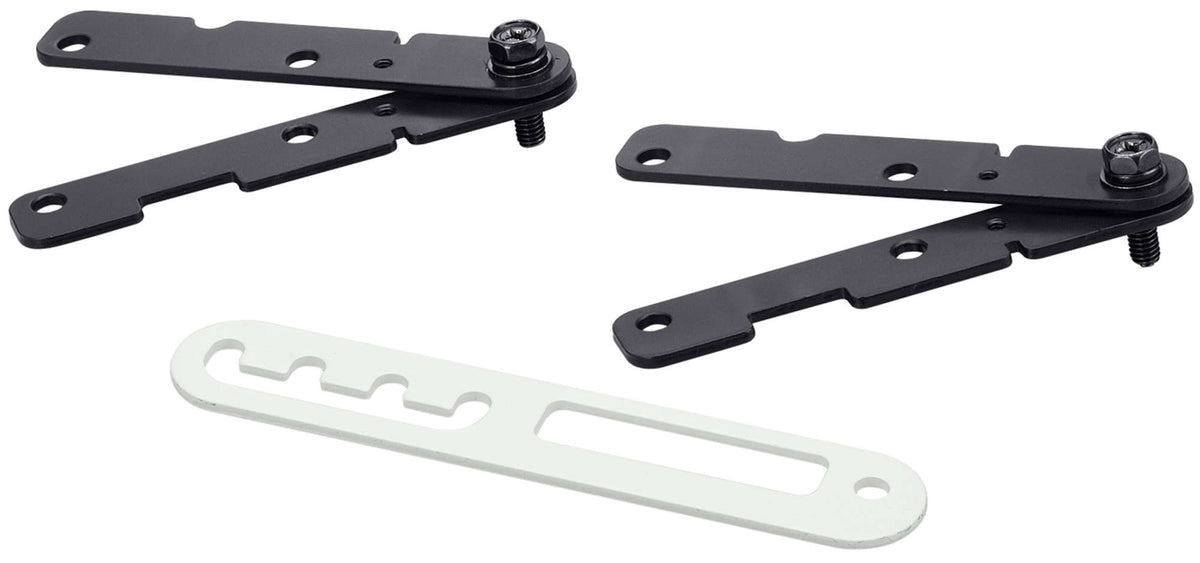

TOA HY-CN1W HX-5 Joining Bracket White
Product Details
The TOA HY-CN1W joins two HX-5 series speakers into a single taller array.
The purpose is low-frequency directivity. A longer array controls its pattern further down the frequency range, which is what gives clearer, longer-throw sound in spaces with long reverberation times or high background noise — a sports hall, a station concourse, a factory floor. It is a bar-bracket kit, not a mount: the pair still needs a wall, ceiling or rigging bracket of its own.
Painted steel, and TOA specifies it for indoor use only. For an outdoor or under-eave position, the stainless steel WP version is the part to order. It pairs with the HX-5W. Ordering across the range will not fit. Related parts in the same function: HY-CN1B, HY-CN1B-WP, HY-CN1W-WP.
Features
- Joins two HX-5 series speakers into one array
- Improves directivity control at lower frequencies
- For long reverberation times and high background noise
- Front bar brackets × 2 and rear bar bracket × 1
- Not a mount — the joined pair still needs its own mounting or rigging bracket
- Painted steel, indoor use only
- Pairs with the standard HX-5W
Specifications
| Technical | |
|---|---|
| Product Type | Joining Bracket |
| Compatible Speakers | HX-5W |
| Installation Environment | Indoor installation only |
| Material and Finish | Steel plate, white, semi-gloss paint |
| Included | Front bar brackets × 2 | rear bar bracket × 1 |
| Physical | |
|---|---|
| Weight | 200 g |
| Color | White |
| Installation Note | Indoor use only — not for outdoor or under-eave positions |
Specifications subject to change.
