TOA HY-CN1B-WP HX-5 Joining Bracket Outdoor Stainless Steel Black
Product Details
The TOA HY-CN1B-WP joins two HX-5 series speakers into a single taller array.
The purpose is low-frequency directivity. A longer array controls its pattern further down the frequency range, which is what gives clearer, longer-throw sound in spaces with long reverberation times or high background noise — a sports hall, a station concourse, a factory floor. It is a bar-bracket kit, not a mount: the pair still needs a wall, ceiling or rigging bracket of its own.
Stainless steel, for outdoor and under-eave positions. TOA’s own caution applies to every stainless bracket in this range: avoid positions close to the seashore, or inside poorly ventilated swimming pool halls. Stainless steel corrodes in those atmospheres, and a corroded bracket eventually drops the speaker. It pairs with the weather-resistant speakers — HX-5B-WP. The painted steel version for indoor use is a different part. Related parts in the same function: HY-CN1B, HY-CN1W, HY-CN1W-WP.
Features
- Joins two HX-5 series speakers into one array
- Improves directivity control at lower frequencies
- For long reverberation times and high background noise

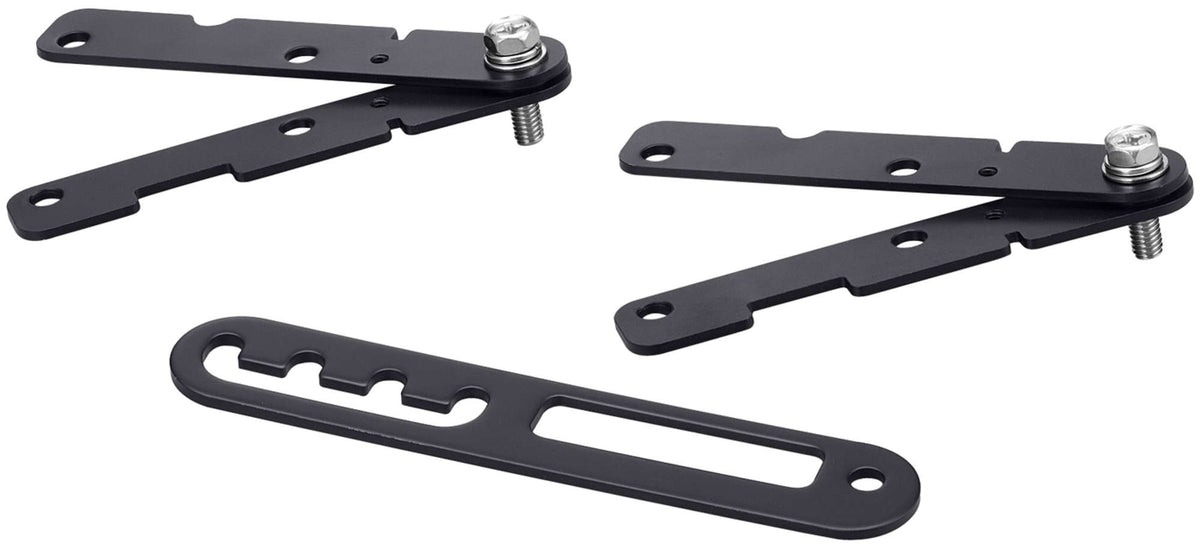

- Front bar brackets × 2 and rear bar bracket × 1
- Not a mount — the joined pair still needs its own mounting or rigging bracket
- Stainless steel for outdoor and under-eave use
- Pairs with the weather-resistant HX-5 speakers
Specifications
| Technical | |
|---|---|
| Product Type | Joining Bracket |
| Compatible Speakers | HX-5B-WP |
| Installation Environment | Outdoor and under-eave installation |
| Material and Finish | Stainless steel, black, semi-gloss paint |
| Included | Front bar brackets × 2 | rear bar bracket × 1 |
| Physical | |
|---|---|
| Weight | 200 g |
| Color | Black |
| Installation Note | Avoid positions near the seashore or in poorly ventilated indoor swimming facilities; corrosion there can eventually allow the speaker to fall |
Specifications subject to change.
