TOA HX-7B Variable Directivity Speaker 8 X 5.5 In Woofers 4 X 1" WaveGuide-Loaded HF Compression Drivers
Product Details

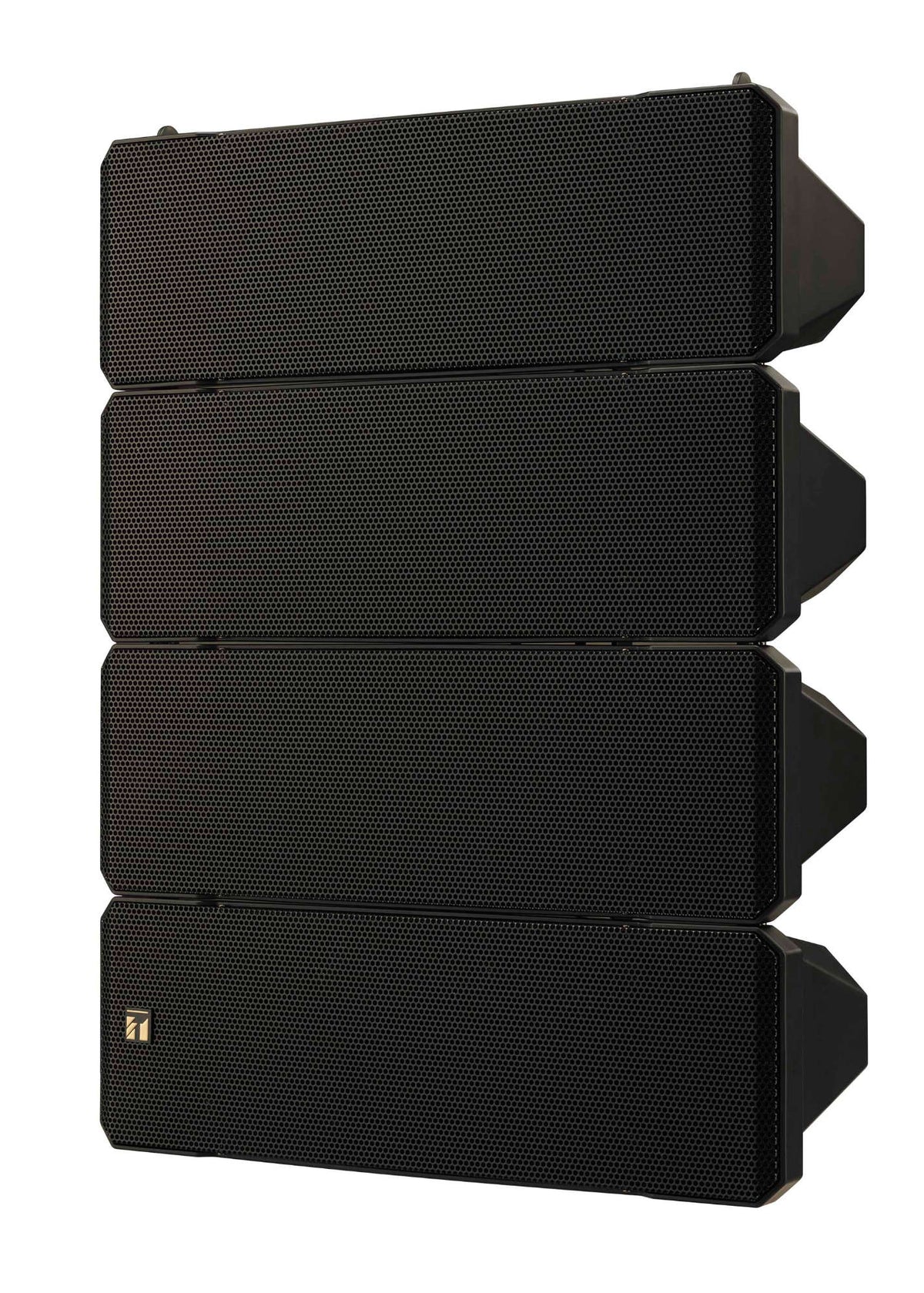

The TOA HX-7B is a variable directivity array speaker. The HX-7 is a two-way compact array built on TOA's wave front control technology: eight 5.5-inch cone woofers and four waveguide-loaded compression drivers in one cabinet, crossing over at 1.7 kHz. Vertical coverage is set on site in 15-degree steps from 0° to 45°, and out to 60° with an optional bracket, while horizontal coverage stays at 100°.
Controlling the vertical pattern is what makes it work in the rooms that defeat ordinary speakers: long reverberation times and high background noise. Narrow the pattern and the energy goes to the audience instead of the ceiling and the far wall, so speech stays intelligible in a sports hall, a station concourse or a place of worship. Rated 750 W continuous program and 250 W continuous pink noise (350 W to IEC 60268-5) at 8 Ω, with 100 dB sensitivity. At 30 kg it is a substantial cabinet — rigging is a two-person job and the structure needs checking before anything goes up.
One thing to plan for: the HX-7 is an 8-ohm speaker with no internal transformer. To run it on a 70 V or 100 V distributed line it needs the MT-200 matching transformer, and the HY-MT7 adapter to mount the MT-200 to the cabinet. Neither is included.
This is the standard indoor version, with two Speakon NL4MPXX sockets as well as screw terminals. For an outdoor or under-eave position order the WP version, which adds IPX4 protection at the cost of some bass extension and the Speakon connectors. The HX-7 mounting system works in two parts. The HY-VM7 rigging bracket is what attaches to the speaker; it then couples to a wall bracket (HY-WM7) or a ceiling mount (HY-C0801) depending on where the speaker goes. TOA also sells the pairs as kits, which is usually the simpler way to order. Supplied in black; the same speaker in white is stocked as HX-7W, and the weather-resistant version as HX-7B-WP.
Features
- Wave front control array — 8 cone woofers and 4 compression drivers
- Variable vertical directivity, 0° to 45° in 15° steps
- Extends to 60° with an optional bracket
- 100° horizontal dispersion
- 750 W continuous program at 8 Ω
- 100 dB sensitivity at 1 W / 1 m
- 1.7 kHz crossover
- For long reverberation times and high background noise
- 8 Ω only — needs the MT-200 transformer for a 70 V or 100 V line
Specifications
| Technical | |
|---|---|
| Type | 2-way compact array speaker with wave front control and variable vertical directivity |
| Rated Input | 750 W continuous program | 250 W continuous pink noise (350 W to IEC 60268-5) |
| Rated Impedance | 8 Ω — no internal transformer |
| Sensitivity | 100 dB (1 W, 1 m) |
| Frequency Response | 75 Hz – 20 kHz |
| Low Frequency Drivers | 8 × 13 cm (5.5″) cone type |
| High Frequency Drivers | 4 × wave front control horn with compression driver |
| Horizontal Dispersion | 100° |
| Vertical Dispersion | Variable in 15° steps from 0° to 45°, extending to 60° with an optional bracket |
| Crossover Frequency | 1.7 kHz |
| Input Connectors | 2 × Speakon NL4MPXX and M4 screw terminal, 9 mm between barriers |
| Physical | |
|---|---|
| Dimensions | 497 (W) × 664 (H) × 274 (D) mm — 19.57″ × 26.14″ × 10.79″ |
| Weight | 30 kg (66.14 lb) |
| Finish and Materials | Enclosure: polypropylene, black | punched net: surface-treated steel plate, black, paint |
| Color | Black |
| Mounting — Rigging bracket | HY-VM7B |
| Mounting — Wall | HY-WM7B, or the HY-WM7BSET kit |
| Mounting — Ceiling | HY-CM7BSET kit — HY-VM7B plus HY-C0801 |
| Mounting — Rigging frame, also flies an FB-150B subwoofer | HY-PF7B |
| Mounting — Speaker stand | HY-ST7 |
| Mounting — 70 V / 100 V line | MT-200 transformer plus HY-MT7 adapter |
