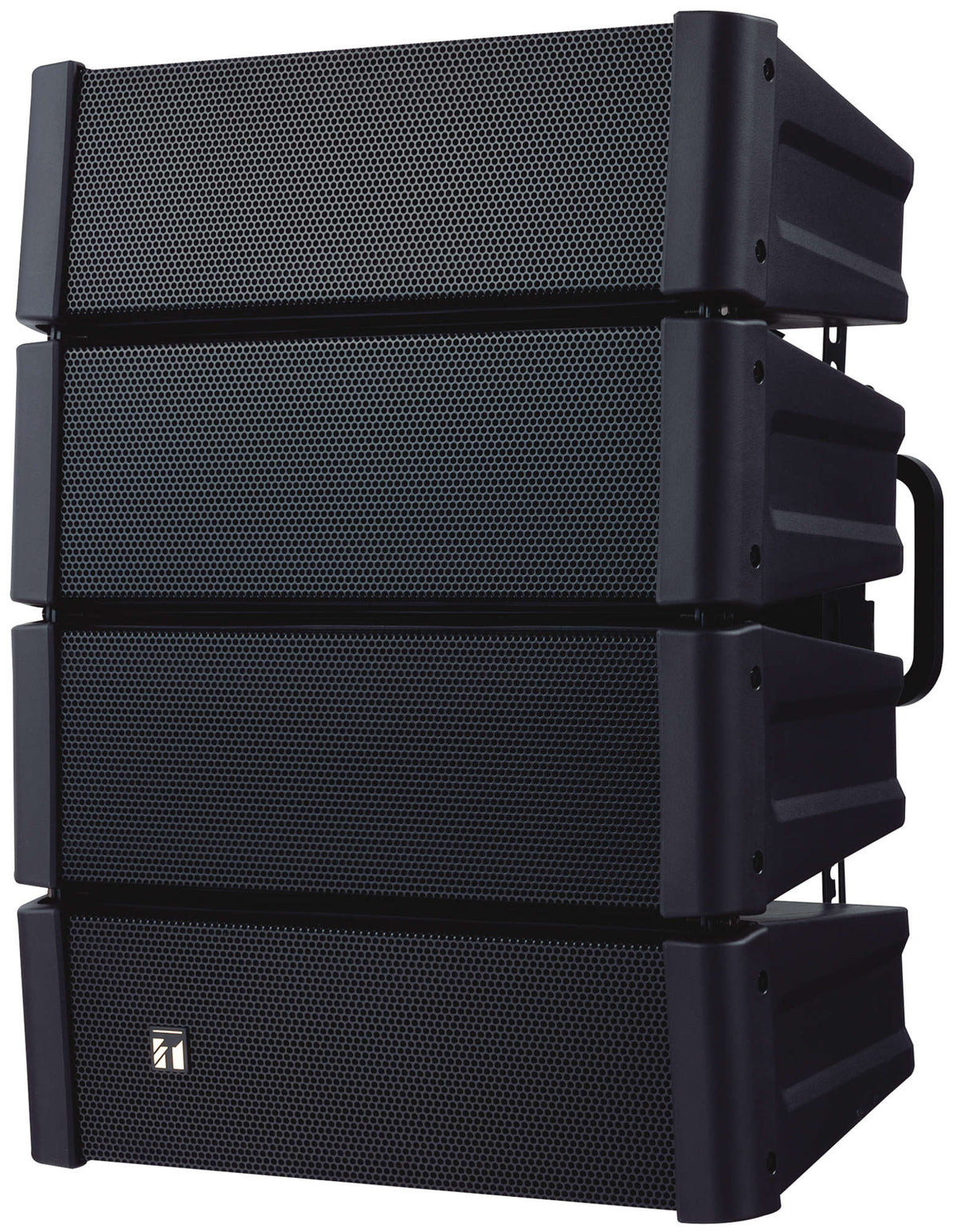

TOA HX-5B Variable Directivity Speaker 600 W 8Ω Black
Product Details
The TOA HX-5B is a compact line array speaker whose vertical coverage angle can be changed on site. Variable directivity is the point of the HX-5. It is a line array of four modules, each carrying a 4.72-inch cone driver and three 1-inch balanced dome tweeters — twelve tweeters in all. The vertical coverage angle is set on site, in 15-degree steps, between 15° and 60°, without changing any hardware: narrow it to throw sound down a long reverberant space and keep it off the walls, or open it out to cover a wide seating area close in. Horizontal coverage stays at 100°.
Narrowing the pattern trades bass extension for reach and gain: sensitivity rises from 96 dB at 60° to 99 dB at 15°, while the low end moves up with it. Both figures are in the specification table for every mode, so the pattern can be chosen against the room rather than guessed at. Two Speakon NL4MP sockets wired in parallel allow daisy-chaining, and an M4 screw terminal is provided as an alternative. Rated 600 W continuous program at 8 Ω, 200 W continuous pink noise, crossing over at 4 kHz. Up to four units may be stacked.
This is the standard indoor version. For outdoor or under-eave positions, order the WP version — rated IPX4, with a rust-proofed net, at the cost of some bass extension. Supplied in black; the same speaker in white is stocked as HX-5W, and the weather-resistant version as HX-5B-WP. Brackets are specific to this model: HY-WM1B for a wall or ceiling with tilt, HY-WM2B to mount it close to the surface, HY-CW1B to suspend it, HY-CN1B to join two together and HY-PF1B to fly it with an FB-120 subwoofer.
Features
- Variable vertical directivity — 15°, 30°, 45° or 60°, set on site
- Four-module line array: 4 cone drivers and 12 balanced dome tweeters
- 600 W continuous program at 8 Ω
- Sensitivity from 96 dB to 99 dB depending on coverage mode
- 100° horizontal dispersion above 2 kHz
- 4 kHz crossover
- Two parallel Speakon NL4MP sockets for daisy-chaining, plus M4 screw terminals
- Stackable up to four units
- Polypropylene enclosure with steel punched net
Specifications
| Technical | |
|---|---|
| Type | 2-way compact line array speaker system with variable vertical directivity |
| Rated Input | 600 W continuous program at 8 Ω | 200 W continuous pink noise |
| Rated Impedance | 8 Ω |
| Sensitivity | 96 dB (60° mode) | 97 dB (45° mode) | 98 dB (30° mode) | 99 dB (15° mode), 1 W / 1 m |
| Frequency Response — 60° mode | 70 Hz – 20 kHz |
| Frequency Response — 45° mode | 75 Hz – 20 kHz |
| Frequency Response — 30° mode | 80 Hz – 20 kHz |
| Frequency Response — 15° mode | 85 Hz – 20 kHz |
| Low Frequency Drivers | 4 × 4.72″ (12 cm) cone type |
| High Frequency Drivers | 12 × 1″ balanced dome type |
| Horizontal Dispersion | 100° above 2 kHz |
| Vertical Dispersion | Variable — 60° above 800 Hz | 45° above 1.2 kHz | 30° above 1.6 kHz | 15° above 3.2 kHz |
| Crossover Frequency | 4 kHz |
| Input Connectors | 2 × Speakon NL4MP, wired in parallel | M4 screw terminal |
| Maximum Stacking | 4 units |
| Physical | |
|---|---|
| Dimensions | 408 (W) × 546 (H) × 342 (D) mm — 16.1″ × 21.5″ × 13.5″ |
| Weight | 16 kg (35.3 lb) |
| Finish and Materials | Enclosure: polypropylene, black | punched net: surface-treated steel plate, black |
| Color | Black |
| Mounting — Wall or ceiling, aimable | HY-WM1B |
| Mounting — Wall or ceiling, close-mounted | HY-WM2B |
| Mounting — Ceiling suspension | HY-CW1B |
| Mounting — Joining two speakers | HY-CN1B |
| Mounting — Rigging frame, also flies an FB-120 subwoofer | HY-PF1B |
| Mounting — Speaker stand adapter | HY-ST1 |
Specifications subject to change.
