Description

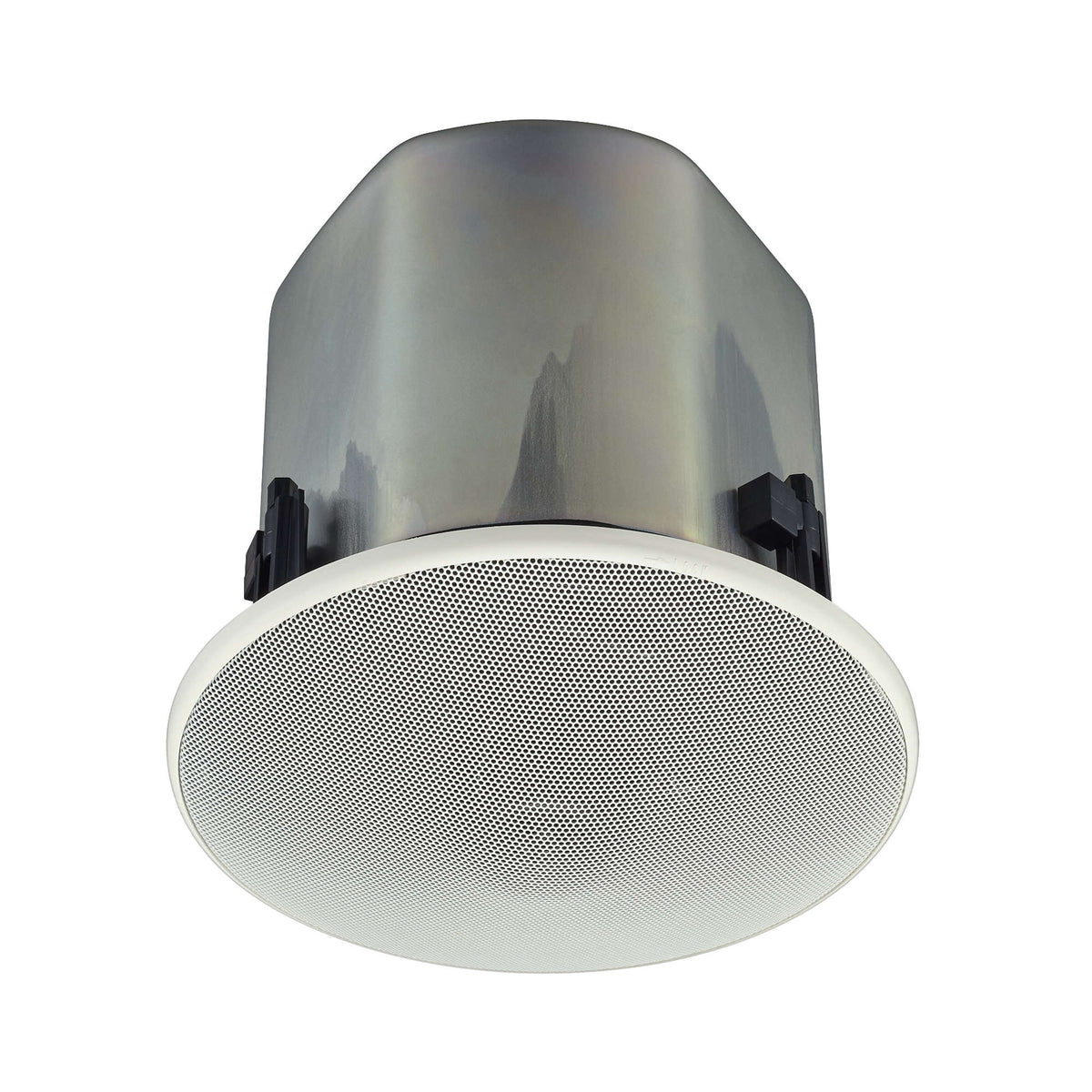

TOA F-2352C Co-Axial Ceiling Speaker 5"-For non-plenum applications 25/70.7 V Transformer 30 W 8Ω
Product Details
The F-2352C ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
Drive components are high frequency: balanced dome-type, low frequency: 12 cm cone-type. Rated input is 30 W (High Impedance). Sensitivity is 90 dB (1 W, 1 m). Frequency response is 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB).
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. Supplied with panel x 1, ceiling reinforcement ring x 1, safety wire x 1, paper pattern x 1. Weight is 3.7 kg.
Features
- Ported bass-reflex design
- Co-axial: 5" cone driver and dome tweeter
- Special diffuser provides wide off-axis high frequency response
- Metal back-can and safety cable
- Removable terminal block with loop-through terminations
- Overload protection circuitry
- For medium ceiling height (2 to 4 m)
- Rated input: 30 W (High Impedance)
- Sensitivity: 90 dB (1 W, 1 m)
- Enclosure: Bass reflex type
- Input terminal: Removable locking connector with screw-down terminals; (2 input terminals and 2 bridge terminals)
- Wide-Dispersion Ceiling Speaker
Specifications
| Technical | |
|---|---|
| Enclosure | Bass reflex type |
| Rated Input | 30 W (High Impedance) |
| Power Handling | Continuous pink noise: 60 W (8 Ω) | Continuous program: 120 W (8 Ω) |
| Impedance | 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) | 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W) | 8 Ω |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB) | at installation in 1/2 free sound field | (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | High frequency: Balanced dome-type, Low frequency: 12 cm cone-type |
| Input Terminal | Removable locking connector with screw-down terminals | (2 input terminals and 2 bridge terminals) |
| Cable Requirements | Solid copper wire: dia. 0.5 - dia. 1.6 mm (equivalent to AWG No. 24 - 14) | Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14) |
| Physical | |
|---|---|
| Mounting Hole | dia. 200 mm (Maximum ceiling thickness: 37 mm) |
| Finish | Enclosure: Steel plate, plating | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black | Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint | Punched net: Steel plate, white, paint |
| Dimensions | dia. 230 x 229 (D) mm (dia. 9.1 x 9.0 in) |
| Weight | 3.7 kg (8.2 lb) (including mounting accessories) |
| Included Accessories | Panel x 1, Ceiling reinforcement ring x 1, Safety wire x 1, Paper pattern x 1 |
| Optional Accessories | Anchor hanging bracket: HY-AH1, Back can: HY-BC1, Tile bar bridge: HY-TB1, Trim ring: HY-TR1 |
Specifications subject to change.
