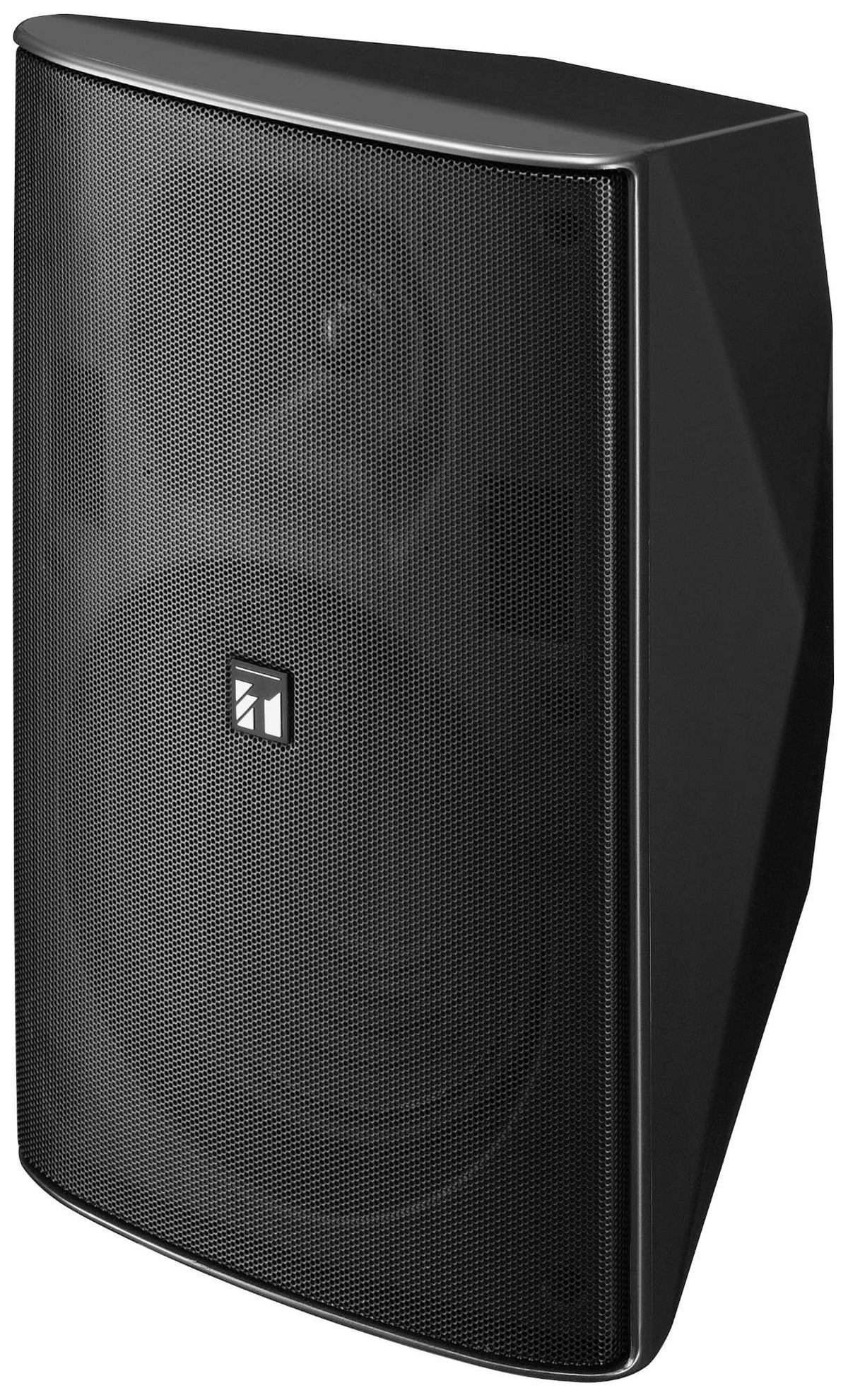

TOA F-2000BT Surface Mount Speaker 2-way 8” 8Ω/70.7/100 V Transformer (60 W) Wall/Ceiling-Mount Bracket Included
Product Details
The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Drive components are low frequency: 20 cm (8) cone-type. Rated input is 60 W (high impedance). Sensitivity is 92 dB (1 W, 1 m) at installation in 1/2 free sound field. Frequency response is 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field. Dispersion is horizontal: 110°, vertical: 100°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. This is the black finish of the F-2000WT; the enclosure and grille are paintable. Supplied with speaker bracket x 1, joint bracket x 1, wall bracket x 1, horn adapter x 1. Weight is 7.4 kg.
Features
- Compact wide-dispersion speaker
- Up to 180 W continuous program (F-2000B / F-2000W)
- Dispersion angle of 110° x 100°
- Easily mountable 80° x 80° horn adapter for increased dispersion control included
- 2-way speaker with high quality 20 cm woofer and balanced dome tweeter
- Paintable
- Covered rear-mounted terminal block (WP version)
- Rated input: 60 W (high impedance)
- Rated impedance: 8 Ω | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) | 70 V line: 83 Ω (60 W), 170 Ω
- Sensitivity: 92 dB (1 W, 1 m) at installation in 1/2 free sound field | 93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter)
- Frequency response: 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
- Crossover frequency: 2.5 kHz
- Directivity angle: Horizontal: 110°, Vertical: 100° | Horizontal: 80°, Vertical: 80° (with horn adapter)
- Enclosure: Bass-reflex type
- Input terminal: Push-in terminal
- Compact Box Speaker
Specifications
| Technical | |
|---|---|
| Enclosure | Bass-reflex type |
| Rated Input | 60 W (high impedance) |
| Power Handling | Continuous pink noise: 60 W (low impedance) | Continuous program: 180 W (low impedance) |
| Rated Impedance | 8 Ω | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) | 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 92 dB (1 W, 1 m) at installation in 1/2 free sound field | 93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
| Frequency Response | 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2.5 kHz |
| Directivity Angle | Horizontal: 110°, Vertical: 100° | Horizontal: 80°, Vertical: 80° (with horn adapter) |
| Speaker Component | Low frequency: 20 cm (8) cone-type | High frequency: 25 mm (1) dome tweeter |
| Input Terminal | Push-in terminal |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, black | Punched net: Surface-treated steel plate, black, paint | Joint bracket, wall bracket: Steel plate, t2.0, black, paint | Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions | 244 (W) x 373 (H) x 235 (D) mm (9.61 x 14.69" x 9.25") |
| Weight | 7.4 kg (16.31 lb) (including the supplied brackets) |
| Included Accessories | Speaker bracket x 1, Joint bracket x 1, Wall bracket x 1 | Bracket fixing screw x 1 set, Horn adapter x 1, Horn adapter mounting screw x 4 |
| Optional Accessories | Ceiling mount bracket: HY-CM20B (used for the horizontal speaker mounting) | Cluster bracket: HY-CL20B, Speaker stand: ST-16A |
Specifications subject to change.
