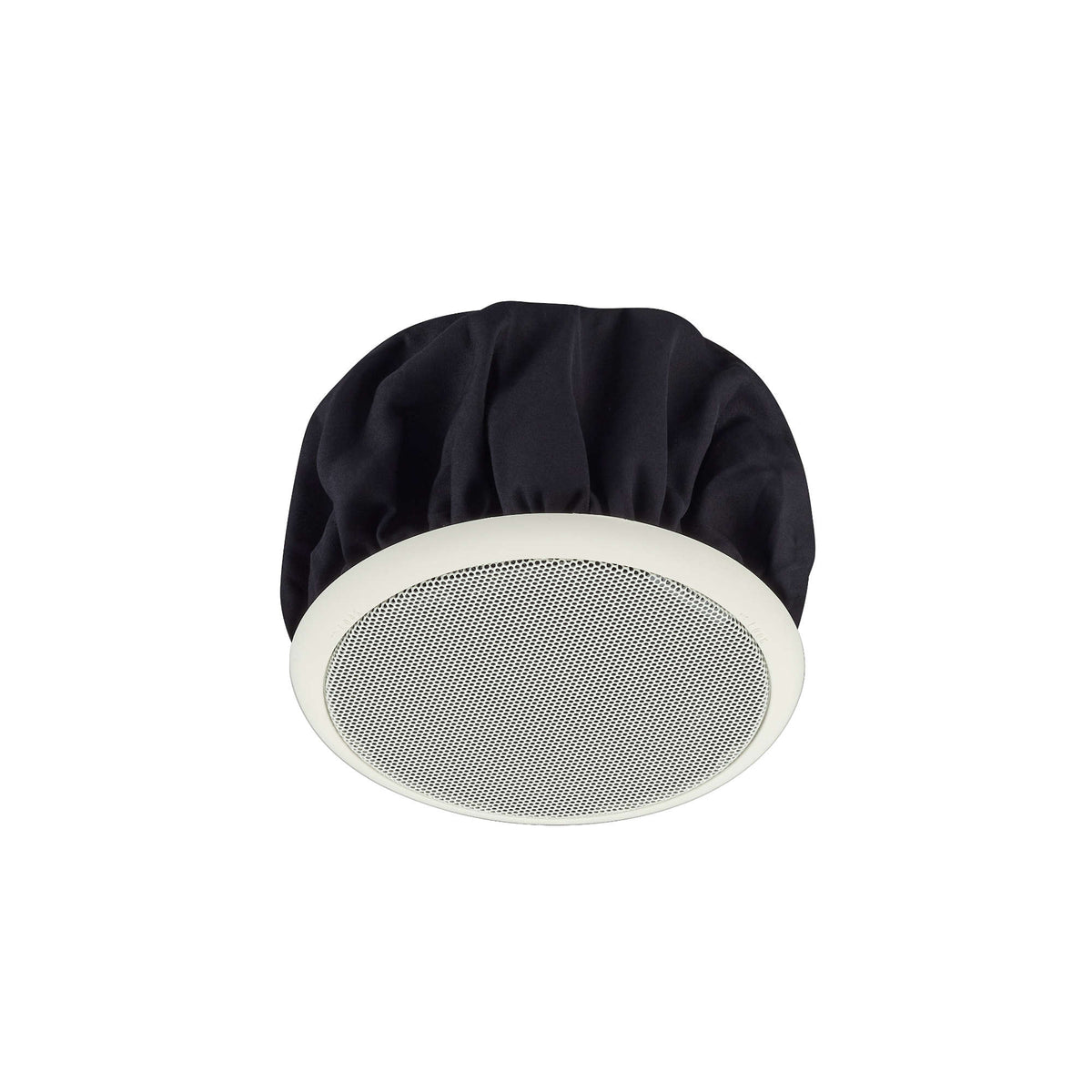

TOA F-1522SC Full-Range Ceiling Speaker 4" 25/70.7 V Transformer 6 W 8Ω
Product Details
The F-1522SC ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
Drive components are 10 cm cone-type. Rated input is 6 W (High Impedance). Sensitivity is 88 dB (1 W, 1 m). Frequency response is 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB).
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. Supplied with panel x 1, paper pattern x 1. Weight is 1 kg.
Features
- 4" full-range driver
- Flat front panel
- 117 mm mounting depth
- Easy installation
- Input selector switch permits easy verification and change of current impedance settings, even after installation
- For medium ceiling height (2 to 4 m)
- Especially for low profile ceilings with limited depth and applications with lower power requirement
- Rated input: 6 W (High Impedance)
- Sensitivity: 88 dB (1 W, 1 m)
- Frequency response: 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB); at installation in 1/2 free sound field; (Measured by installing the unit in the center of a
- Wide-Dispersion Ceiling Speaker
Specifications
| Technical | |
|---|---|
| Rated Input | 6 W (High Impedance) |
| Power Handling | Continuous pink noise: 9 W (8 Ω) | Continuous program: 18 W (8 Ω) |
| Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) | 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) | 25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W) | 8 Ω |
| Sensitivity | 88 dB (1 W, 1 m) |
| Frequency Response | 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) | at installation in 1/2 free sound field | (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | 10 cm cone-type |
| Input Terminal | Push-in connector (Bridging terminal-2 branch type) |
| Cable Requirements | 600 V Vinyl-insulated cable (IV wire or HIV wire) | Solid copper wire: dia. 0.8 - dia. 1.6 mm (equivalent to AWG No. 20 - 15) | 7-core twisted copper wire: 0.75 - 1.25 mm² (equivalent to AWG No. 18 - 17) |
| Physical | |
|---|---|
| Mounting Hole | dia. 135 mm (Maximum ceiling thickness: 37 mm) |
| Finish | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black | Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint | Punched net: Steel plate, white, paint | Dust-proof bag: Artificial fiber, black |
| Dimensions | dia. 155 x 117 (D) mm (dia. 6.1 x 4.6 in) |
| Weight | 1 kg (2.2 lb) (including panel) |
| Included Accessories | Panel x 1, Paper pattern x 1 |
| Optional Accessories | Reinforcement ring: HY-RR1 |
Specifications subject to change.
