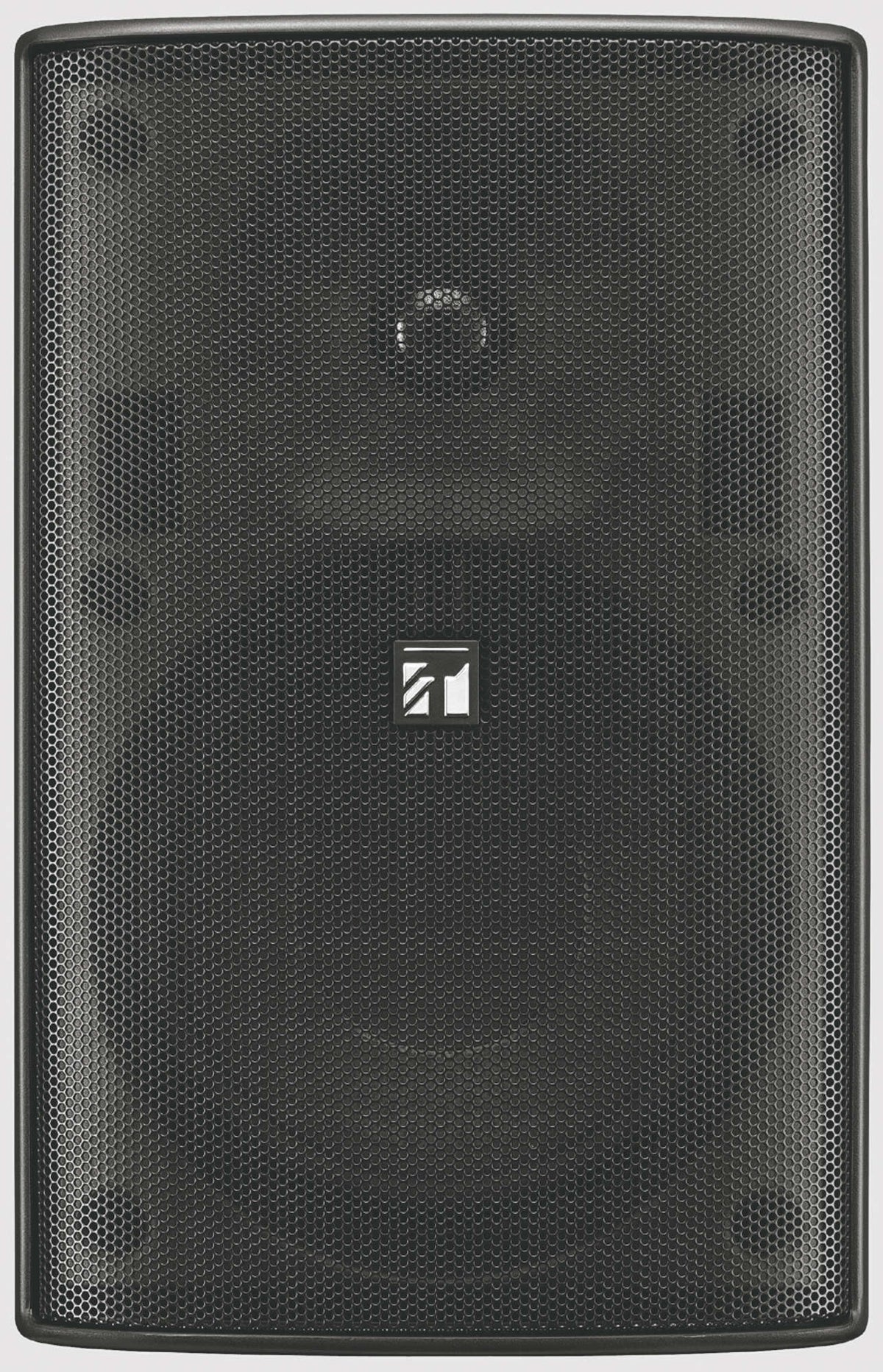

TOA F-1300BT Surface Mount Speaker (5" 2-Way 30W 8Ω/70V/100V Black)
Product Details
The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Drive components are low frequency: 13 cm (5) cone-type high frequency: 25 mm (1) dome tweeter. Rated input is 30 W (high impedance). Sensitivity is 90 dB (1 W, 1 m) at installation in 1/2 free sound field. Frequency response is 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field. Dispersion is horizontal: 110°, vertical: 100°.
A multi-tap transformer lets it sit on a 70 V or 100 V distributed line, which is how a building-wide system runs many speakers from one amplifier; a low-impedance tap is there for a conventional installation. This is the black finish of the F-1300WT; the enclosure and grille are paintable. Supplied with speaker bracket x 1, joint bracket x 1, wall bracket x 1, bracket fixing screw x 1 set. Weight is 3.6 kg.
Features
- Compact wide-dispersion speaker
- Up to 150 W continuous program
- 2-way speaker with high quality 13 cm woofer and 25 mm dome tweeter
- Paintable
- Rated input: 30 W (high impedance)
- Rated impedance: 8 Ω | 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 170 Ω (30 W), 330 Ω (15 W)
- Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency response: 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
- Crossover frequency: 2 kHz
- Directivity angle: Horizontal: 110°, Vertical: 100°
- Enclosure: Bass-reflex type
- Input terminal: Push-in terminal
- Compact Box Speaker
Specifications
| Technical | |
|---|---|
| Enclosure | Bass-reflex type |
| Rated Input | 30 W (high impedance) |
| Power Handling | Continuous pink noise: 50 W (low impedance) | Continuous program: 150 W (low impedance) |
| Rated Impedance | 8 Ω | 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) | 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2 kHz |
| Directivity Angle | Horizontal: 110°, Vertical: 100° |
| Speaker Component | Low frequency: 13 cm (5) cone-type | High frequency: 25 mm (1) dome tweeter |
| Input Terminal | Push-in terminal |
| Physical | |
|---|---|
| Finish | Enclosure: HIPS, black | Punched net: Surface-treated steel plate, black, paint | Joint bracket, wall bracket: Steel plate, t1.6, black, paint | Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions | 162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34") |
| Weight | 3.6 kg (7.94 lb) (including the supplied brackets) |
| Included Accessories | Speaker bracket x 1, Joint bracket x 1, Wall bracket x 1, Bracket fixing screw x 1 set |
| Optional Accessories | Board hanger bracket: HY-BH10B | Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting) | Cluster bracket: HY-CL10B, Speaker stand: ST-16A |
Specifications subject to change.
